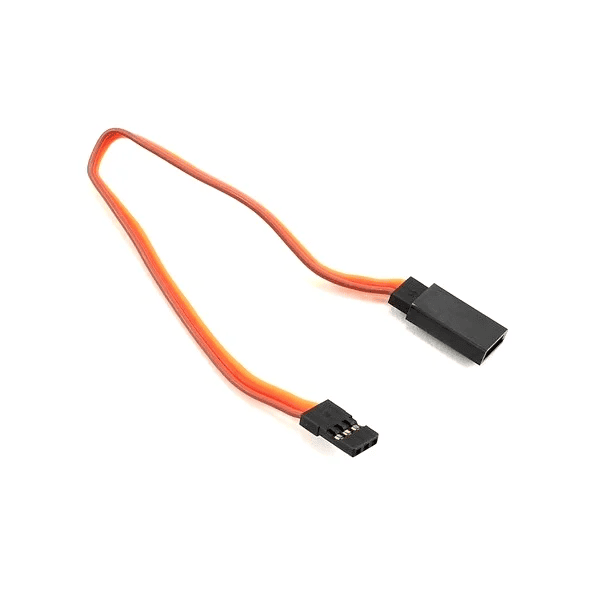

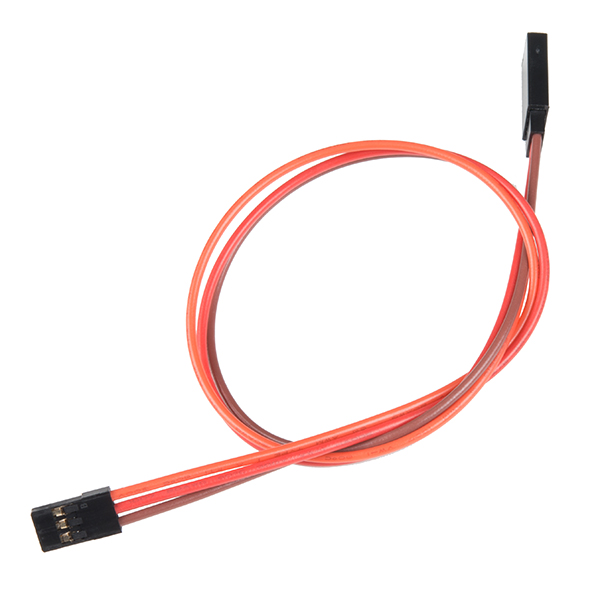

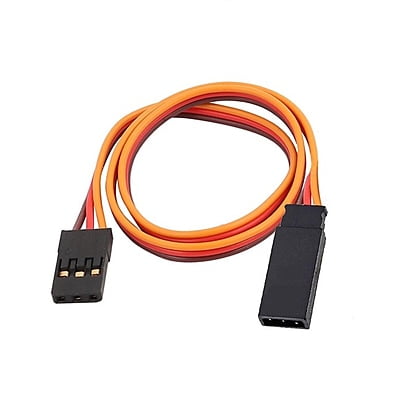

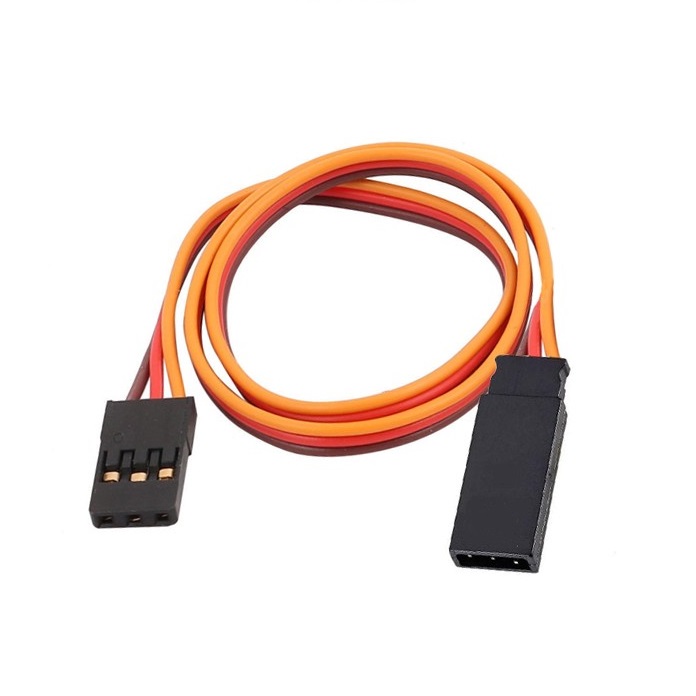

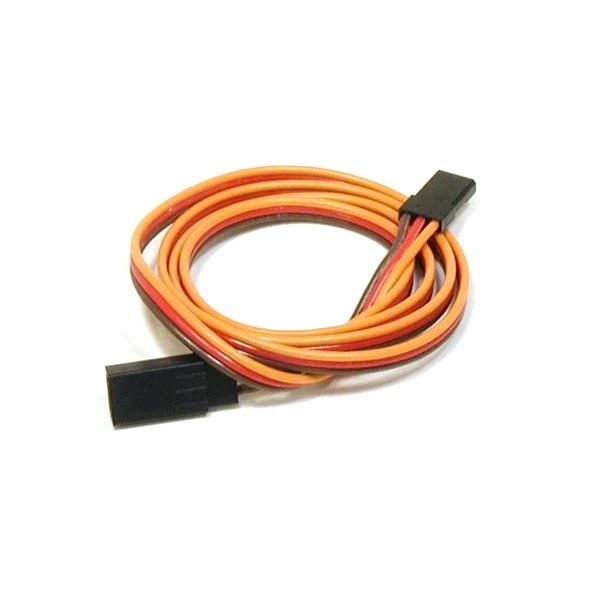

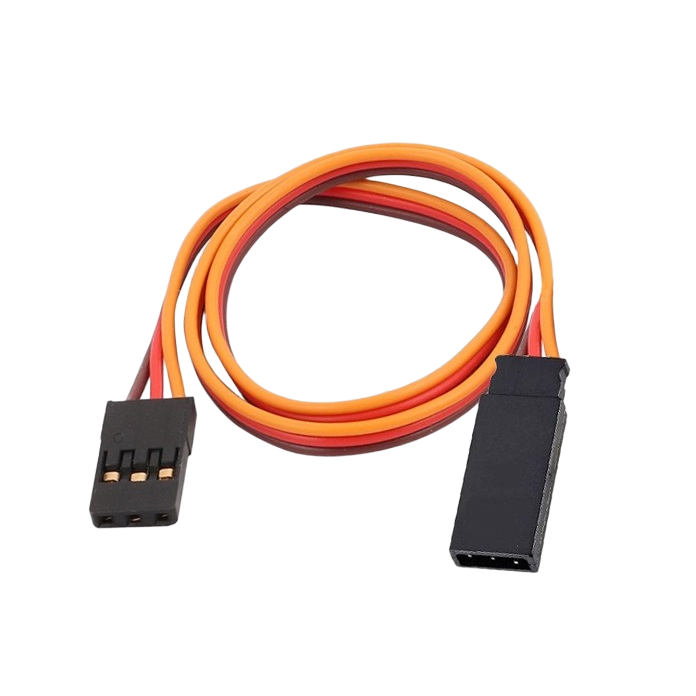

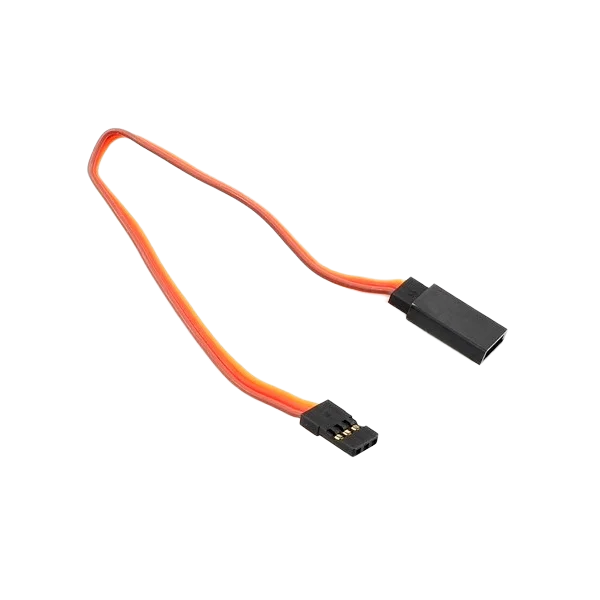

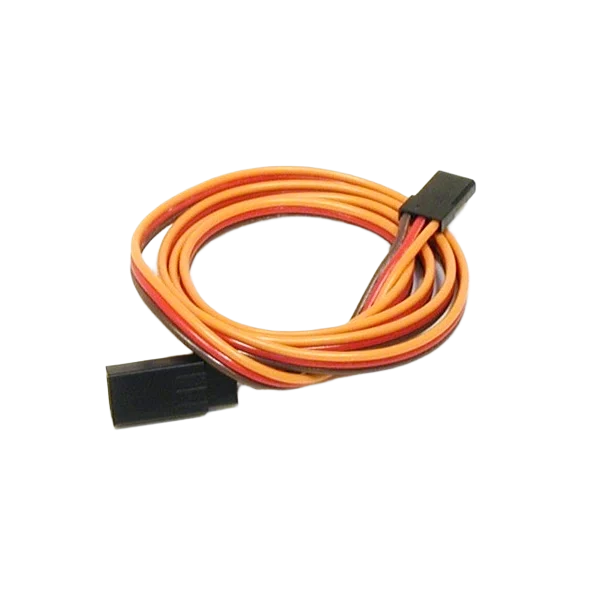

AMASS SafeConnect Servo Lead Extension Cable - High-Current 22AWG/26AWG JR/Futaba Compatible
The AMASS SafeConnect Servo Extension is a heavy-duty 3-pin cable designed for high-load servos, receivers, and flight controllers. Available in Twisted (to minimize EMI) or Flat (for neat routing) profiles, these cables use premium 22AWG or 26AWG wire to handle significantly more current than standard leads, preventing "servo brownouts" in large-scale UAVs and 3D aircraft.
In 2026, as servos become more powerful and power systems more complex, the "weak link" is often the thin extension wire. SafeConnect by AMASS solves this by employing 60-core high-purity copper (in 22AWG variants), allowing for seamless power delivery to high-voltage (HV) servos.
Key Technical Advantages:
Signal Integrity: The Twisted Pair design is specifically engineered to reject Electromagnetic Interference (EMI) from high-power ESCs and telemetry systems—a critical feature for long cable runs in large wings.
Soldered & Crimped Plugs: Unlike mass-produced leads that are only crimped, SafeConnect plugs are both soldered and crimped for dual-layered security, ensuring the pins never pull out during high-G maneuvers.
Silicone Flexibility: The ultra-soft silicone jacket is rated for -60°C to +200°C. It remains supple in high-altitude cold and won't melt during accidental contact with hot soldering irons or motors.

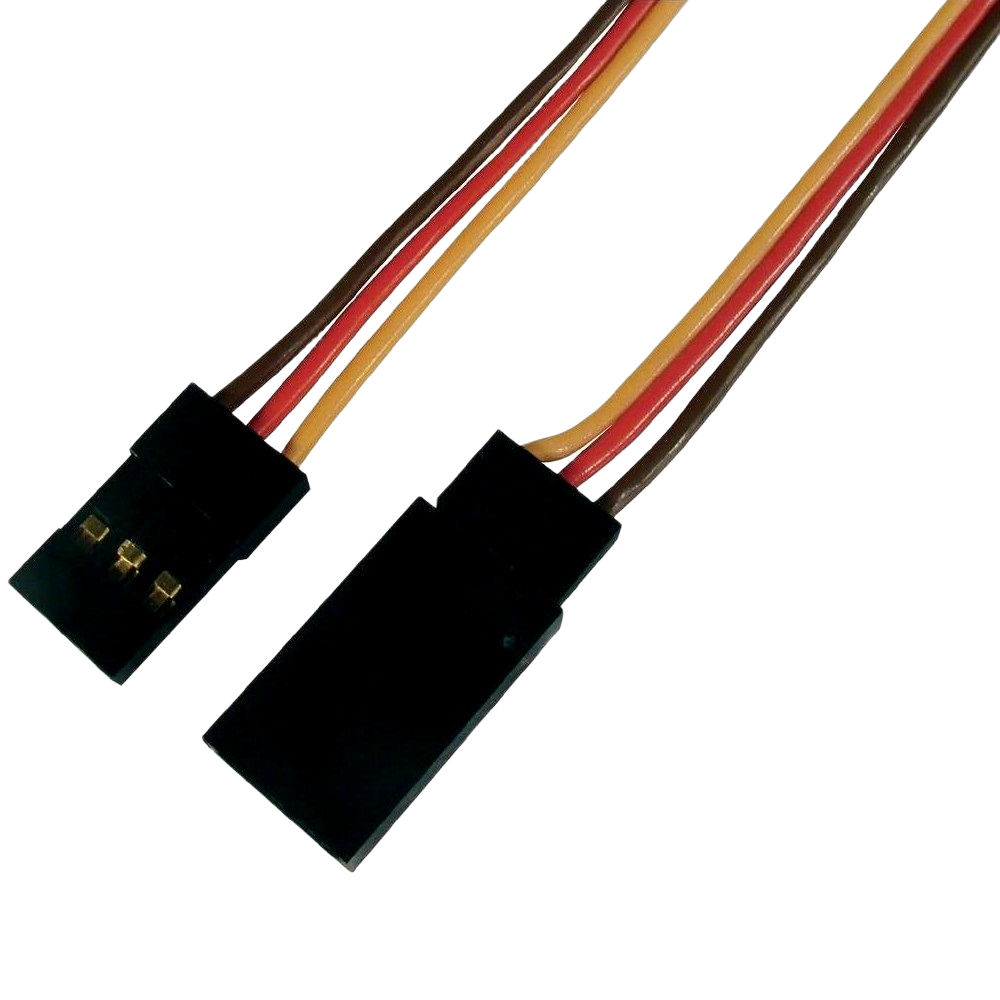

Universal Compatibility: Featuring the industry-standard JR-style connector with a "universal" fit, these extensions mate perfectly with both JR and Futaba-style plugs without modification.

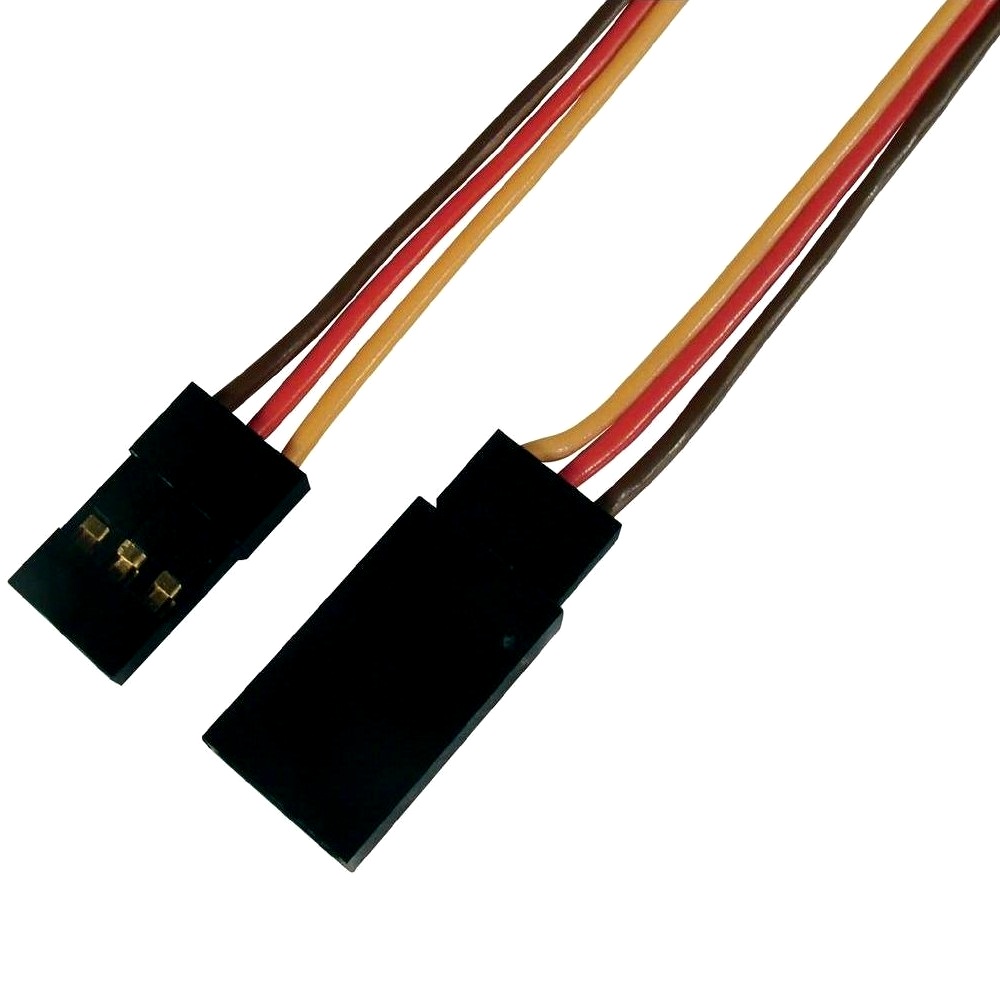

Gold-Plated Contacts: To prevent the "micro-arcing" that can lead to signal jitter, the pins are heavily plated in gold to maintain a low-resistance contact patch for the life of the aircraft.
FAQ: Top 5 Questions on AMASS SafeConnect Leads
Q1: Why choose Twisted leads over Flat leads?
A: Twisted leads are better at rejecting "noise" or interference from nearby power cables. If your extension is longer than 30cm or runs next to an ESC, Twisted is the safer choice for signal stability.
Q2: Is 22AWG necessary for a standard 9g micro servo?
A: No, 22AWG is overkill for micro servos. However, for standard-sized high-torque servos (20kg+ torque), 22AWG is essential to ensure the servo receives full voltage during peak loads.
Q3: Can I use this to extend my ESC-to-Receiver connection?
A: Absolutely. It is the ideal way to extend the throttle lead from an ESC to a flight controller, especially in large twin-engine planes or VTOL platforms.
Q4: Will these fit Futaba receivers?
A: Yes. These use the "Universal" JR-style connector. While they don't have the small "tab" found on Futaba-specific plugs, they fit perfectly into Futaba sockets.
Q5: What is the maximum current these can handle?
A: The 22AWG SafeConnect leads are comfortably rated for 5A continuous and 10A burst, which is more than enough for even the most demanding brushless servos.
