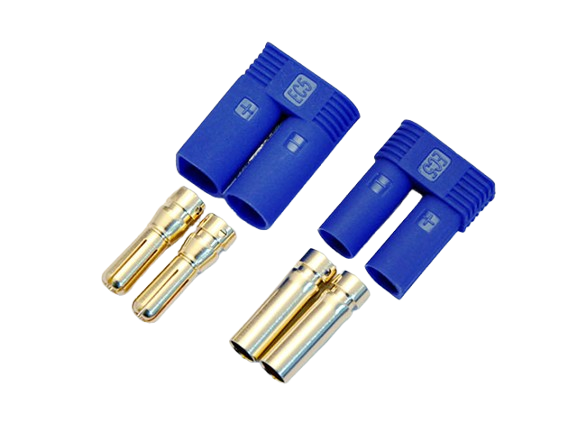

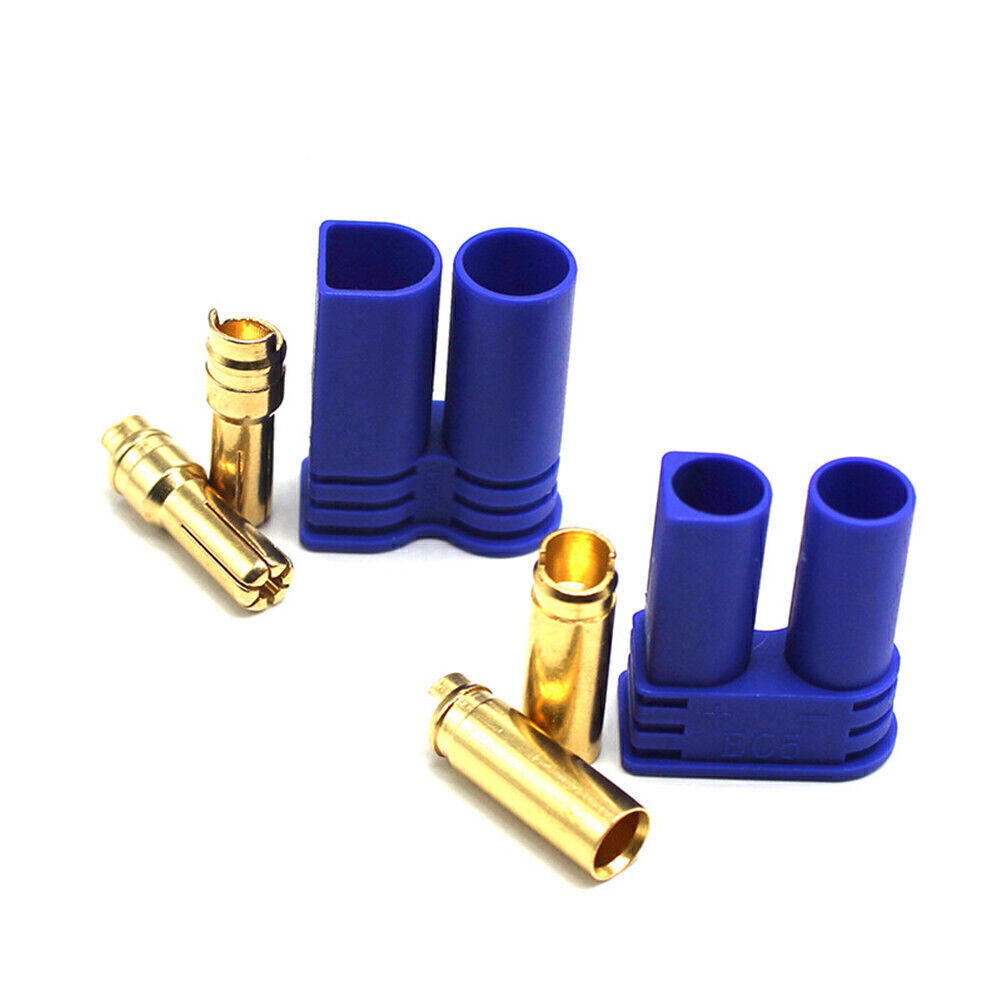

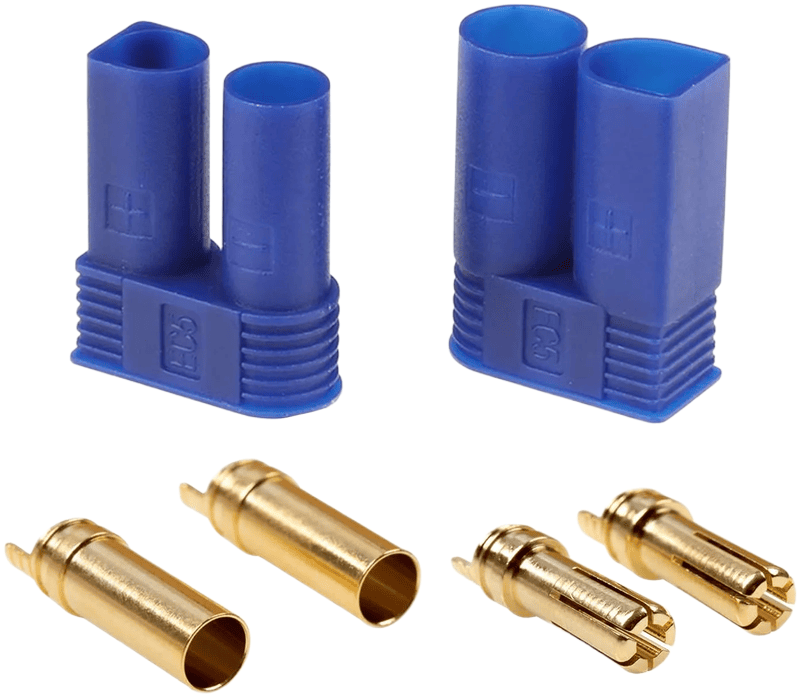

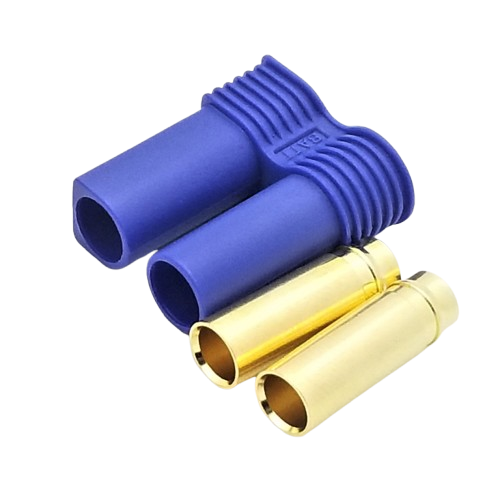

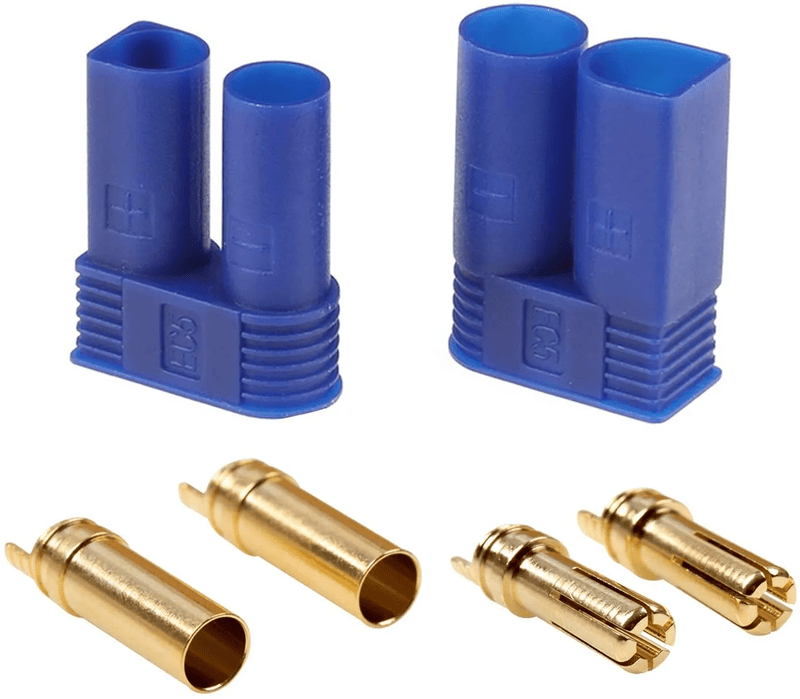

AMASS EC5 CONNECTOR -M/F
₹109.00
The AMASS EC5 Male/Female Connector provides a robust and reliable solution for very high-current connections. Featuring large 5mm gold-plated bullet connectors and a rugged, easy-to-grip housing, it ensures minimal resistance and maximum power transfer. Ideal for large-scale RC models, high-power drones, industrial equipment, and applications demanding exceptional current handling.
Choose Quantity
Product Details
Features :
- Robust, ergonomic housing for secure and easy gripping.
- Excellent conductivity minimizes power loss and heat generation.
- Durable construction for long-lasting performance in harsh conditions.
- Easy to solder large gauge wires for custom assemblies.
- Widely used for large LiPo batteries and power systems.
- Genuine AMASS quality for ultimate reliability.
Technical Details:
- Connector Type: EC5 (Male/Female)
- Current Rating: upto 100Amps
- Material: Copper + Plastic
- Recommended Wire Gauge: 8AWG to 10AWG
Additional Detail:
- Manufacturer: AMASS Electronics Co., Ltd.
- Brand: AMASS
- Generic Name: EC5 connector, high current bullet connector, 5mm bullet connector, RC battery connector, drone power connector, industrial connector, LiPo battery connector, ESC connector, motor connector, heavy duty connector, power distribution connector.
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Large LiPo battery connections, high-power ESCs, large brushless motors, power distribution systems in large RC vehicles, industrial drones, robotics, electric vehicles, and applications requiring extremely high current transfer.
Package Details:
- Includes: 1 x AMASS EC5 Male Connector, 1 x AMASS EC5 Female Connector.
Frequently Asked Questions
Q1. What is the maximum continuous current rating for AMASS EC5 connectors?
Ans - AMASS EC5 connectors are rated for a continuous current of 120 amps and a peak current of up to 150 amps.
Q2. What wire gauge should I use with AMASS EC5 connectors?
Ans - EC5 connectors are best suited for 8AWG or 10AWG wires, allowing them to handle the very high currents they are designed for efficiently.
Q3. Are EC5 connectors polarized to prevent incorrect connections?
Ans - Yes, AMASS EC5 connectors feature a keyed design that prevents reverse polarity connections, ensuring safety during installation and use.
