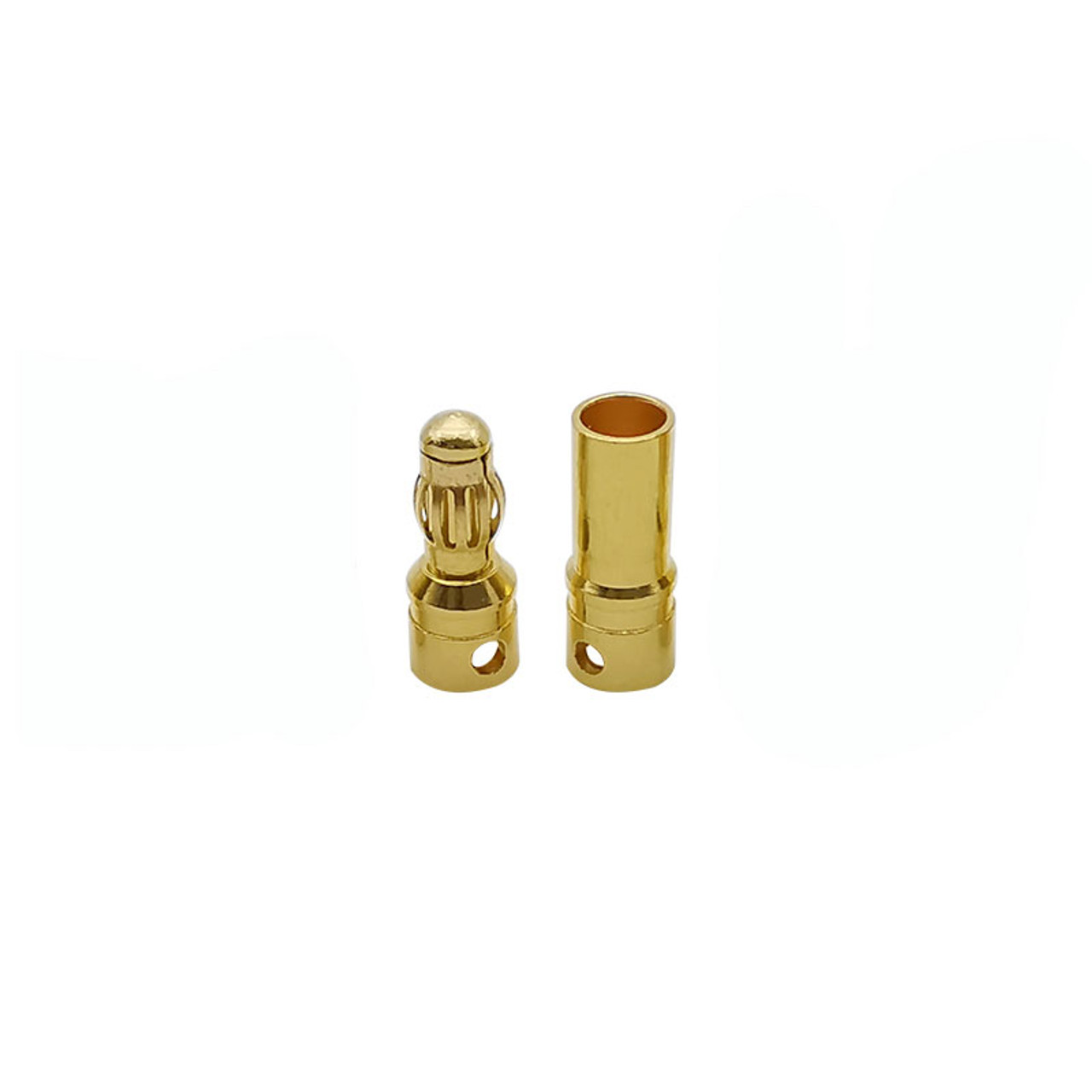

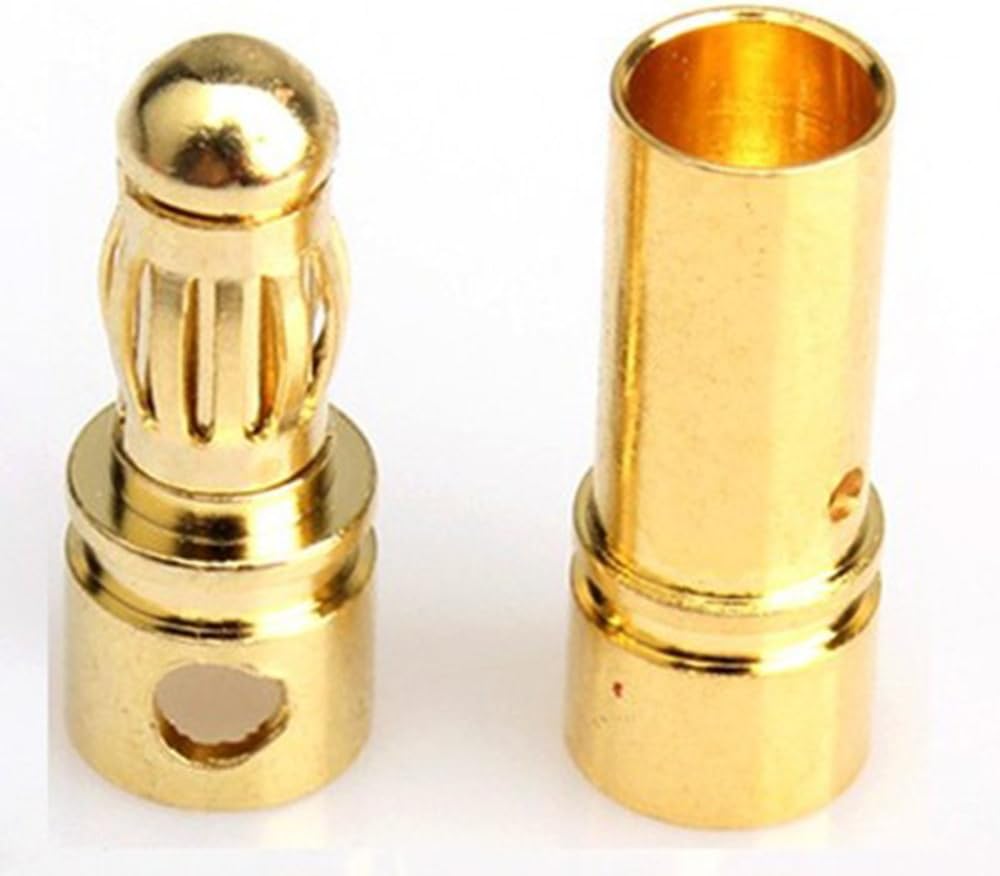

AMASS 3.5mm Gold Plated Cross Bullet Banana Connector
Non-returnable
₹49.00
Out of stock
The AMASS 3.5mm Gold Plated Cross Bullet Banana Connector provides a low-resistance, secure connection for RC motors and ESCs. Its cross-slotted design ensures excellent contact surface for efficient power transfer. Ideal for drones, RC vehicles, and various electronic projects, these durable connectors minimize power loss and withstand repeated connections, ensuring reliable performance.
Product Details
Features:
- 3.5mm diameter, ideal for various RC applications.
- Gold-plated surface ensures excellent conductivity and low resistance.
- Cross-slotted design provides superior contact and current flow.
- Durable construction for long-lasting performance and reliability.
- Easy to solder, simplifying wire attachment for custom builds.
- Minimizes power loss, enhancing efficiency of power systems.
- Secure fit prevents accidental disconnections during operation.
- Widely used for brushless motor and ESC connections.
- Resists corrosion, maintaining optimal performance over time.
- The pair has a flexible connector that firmly fits together to avoid loose connections.
- Genuine AMASS quality for reliable and safe operation.
Technical Details:
- Connector Type: 3.5mm Gold Plated Cross Bullet Connector (Male/Female pair)
- Diameter: 3.5mm
- Contact Material: Gold-plated copper alloy
- Design: Cross-slotted male pin for enhanced contact
- Recommended Wire Gauge: 12AWG to 16AWG
- Temperature Resistance: -20°C to 120°C
Additional Detail:
- Manufacturer: AMASS Electronics Co., Ltd.
- Brand: AMASS
- Generic Name: 3.5mm bullet connector, banana plug, RC motor connector, ESC connector, gold plated bullet, high current connector, brushless motor connector, battery connector, power connector, 3.5mm banana plug, female bullet connector, male bullet connector.
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Brushless motor connections to ESCs, RC battery packs, power distribution for medium-sized drones and RC vehicles, DIY electronics, and test leads requiring low-resistance, reliable connections.
Package Details:
- Includes: 1 x AMASS 3.5mm Gold Plated Cross Bullet Banana Male Connector, x AMASS 3.5mm Gold Plated Cross Bullet Banana Female Connector.
Frequently Asked Questions
Q1. What is the advantage of the "cross bullet" design?
Ans - The "cross bullet" design features a split male pin, providing a larger contact surface and ensuring a more secure fit and lower resistance connection than solid bullet designs.
Q2. What current can these 3.5mm bullet connectors handle?
Ans - These 3.5mm gold-plated bullet connectors can typically handle a continuous current of 40-60 amps, suitable for a wide range of RC motors and ESCs.
Q3. Are these connectors suitable for both motor-to-ESC and battery connections?
Ans - While primarily used for motor-to-ESC connections, they can also be used for battery connections in some smaller to medium-sized RC applications, providing a reliable power link.
