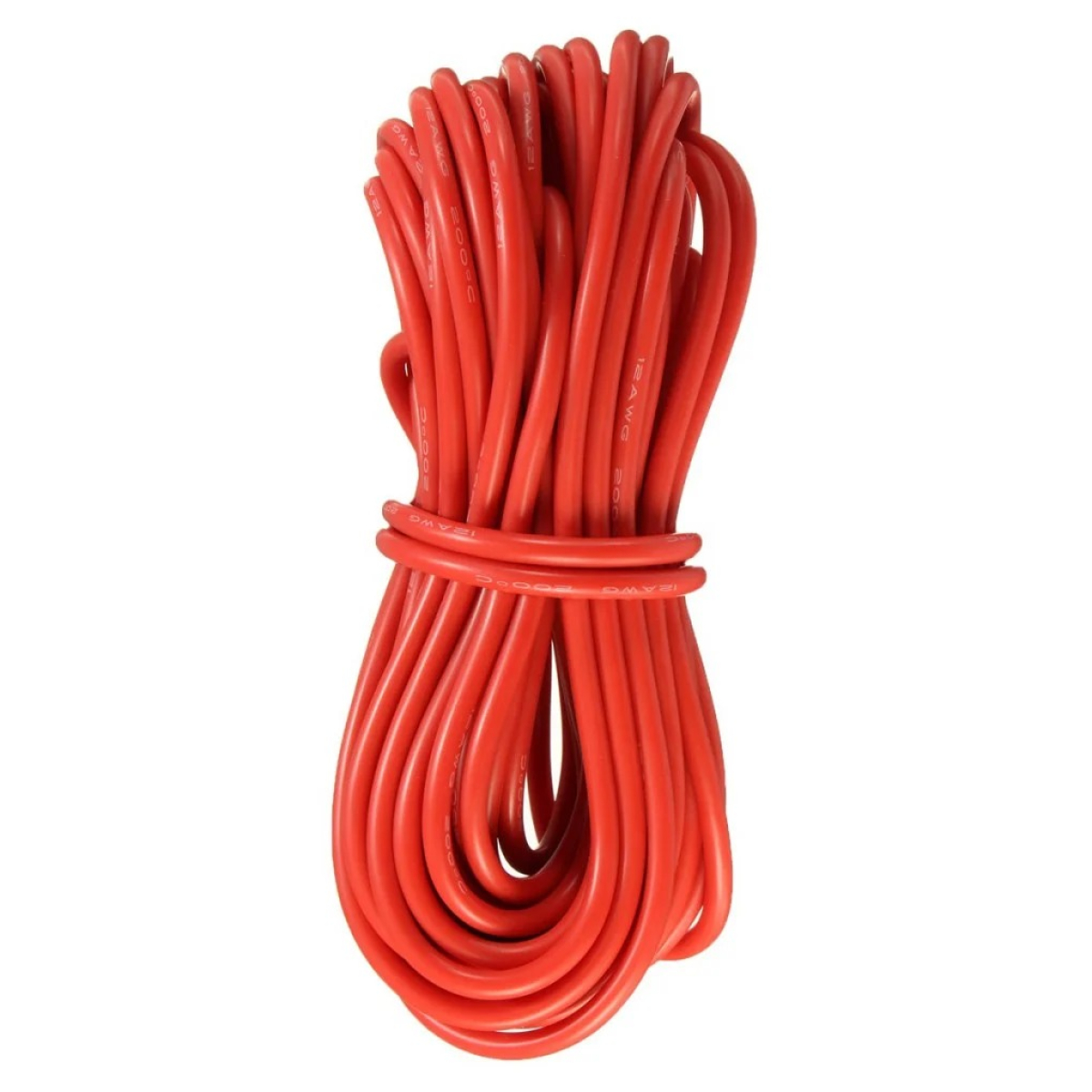

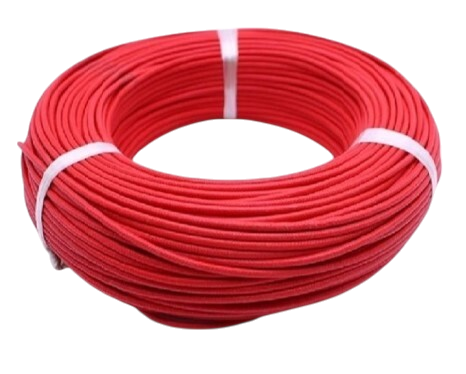

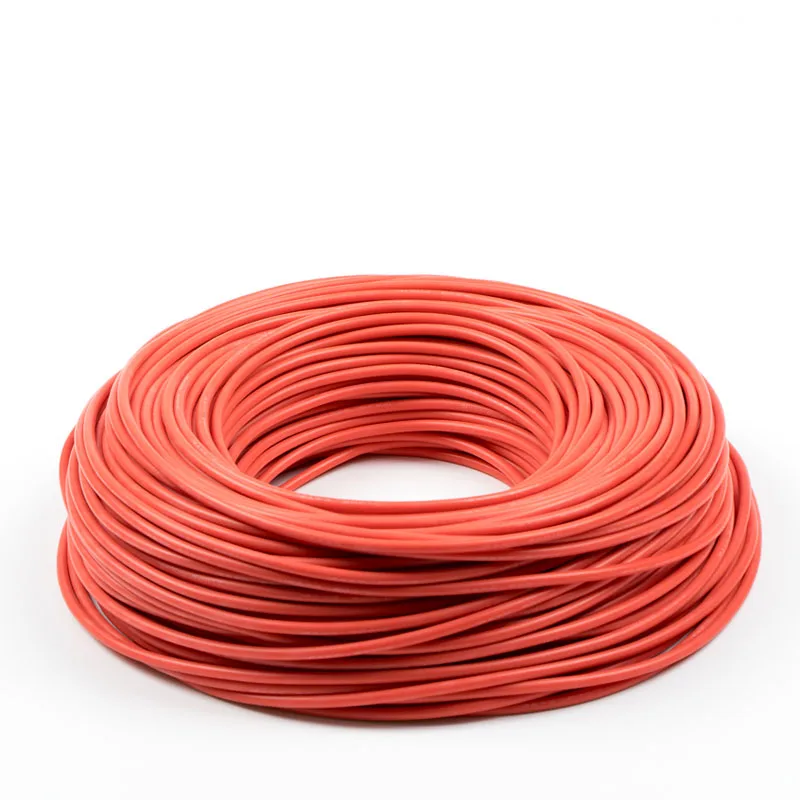

Genuine AMASS 26AWG Ultra Flexible Silicone Wire - 1 Meter (Red) - Precision Signal & Sensor Cable
The AMASS 26AWG Silicone Wire (Red) is a premium, lightweight signal and low-power cable designed for dense electronic environments. Combining a 30-strand tinned copper core with a 200°C-rated silicone jacket, it offers unmatched suppleness and durability. This 1-meter red unit is ideal for identifying positive voltage rails on micro-peripherals in FPV and industrial UAVs.
In the 2026 drone landscape, where flight controllers are shrinking and the number of micro-peripherals (LiDAR, GPS, digital VTX units) is rising, 26AWG is a bench staple. It provides the necessary conductivity for low-amp power delivery while remaining thin enough to be twisted with ground and signal wires, reducing electromagnetic interference (EMI) and cleaning up your build's aesthetics.
Key Technical Advantages:

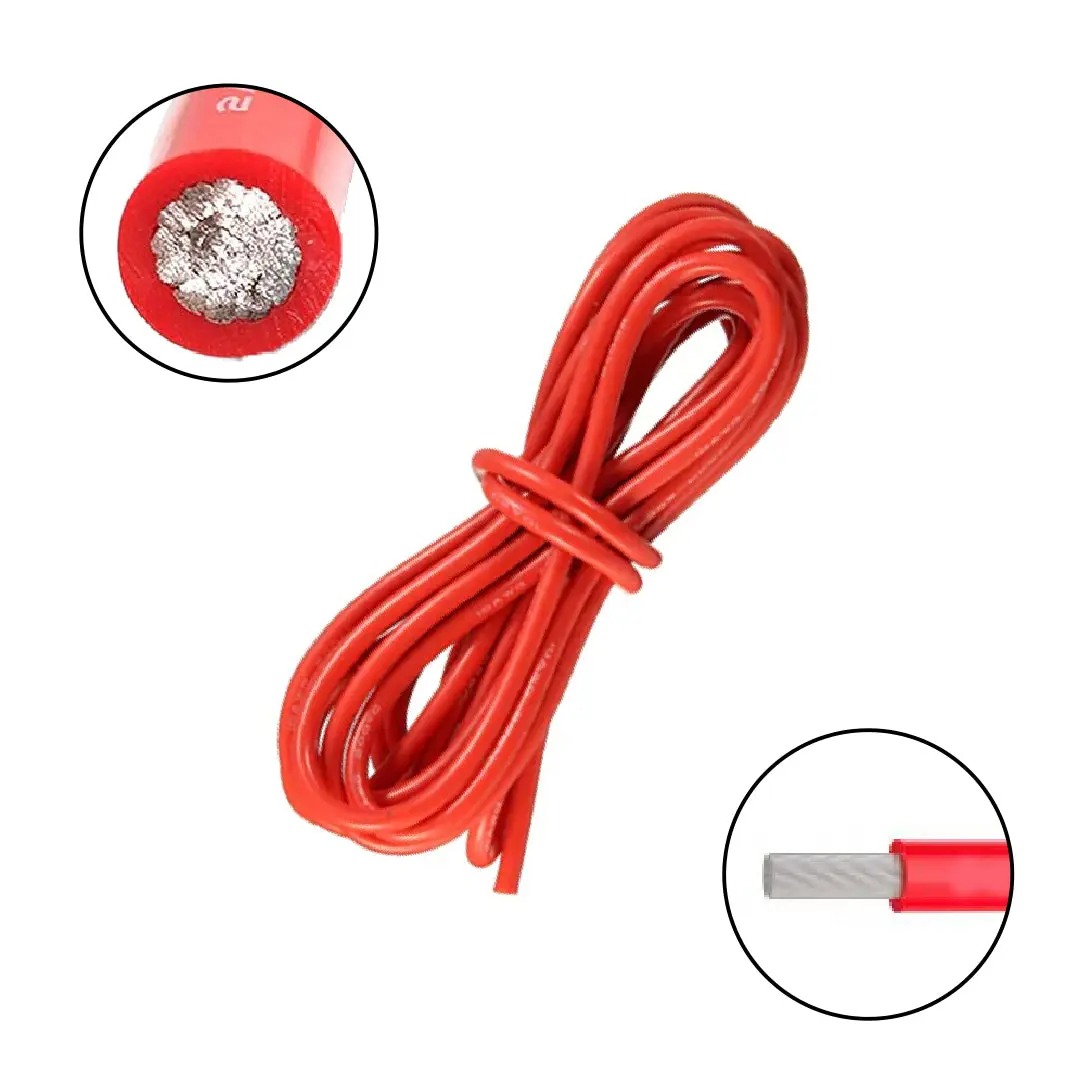

Strain Relief Flexibility: With approximately 30 micro-strands of 0.08mm tinned copper, this wire is incredibly soft. It exerts almost zero mechanical tension on the tiny 5V or 3.3V solder pads of modern flight controllers, preventing "pad-lift" during crashes.
Soldering Immunity: The high-grade silicone insulation is rated for -60°C to +200°C. It will not retreat or melt when you are soldering next to densely packed SMD components, ensuring a professional, short-free finish.
Corrosion-Proof Tinned Core: Each copper strand is coated in tin, making it resistant to the humidity of the Indian climate. This ensures steady voltage delivery and low resistance over hundreds of flight hours.
Vivid Safety Identification: The bright red jacket is a crucial safety feature. In a complex wiring harness, it allows you to instantly identify the live voltage line, drastically reducing the risk of accidentally frying an expensive GPS or receiver with reverse polarity.
Micro-Profile Routing: At just 1.1mm in diameter, it is perfect for internal wiring harnesses and can easily be threaded through small silicone tubes or protective mesh sleeves alongside black ground wires..
FAQ: Top 5 Questions on AMASS 26AWG Red
Q1: Can I use 26AWG to power my flight controller or VTX?
A: No. Flight controllers and high-power digital VTXs draw significantly more current than 26AWG can handle. Use 12AWG to 18AWG for main power and 20AWG to 22AWG for a VTX. 26AWG is strictly for very low-power sensors like GPS, compasses, and receivers.
Q2: Is this wire suitable for providing 5V to an FPV camera?
A: Yes! Analog FPV cameras and the camera units of digital systems draw very little current. 26AWG is excellent for routing 5V power cleanly to the nose of your drone.
Q3: Why use silicone wire instead of standard PVC wire for my receiver?
A: PVC wire is stiff, and its insulation melts the moment a soldering iron touches it—a huge problem when soldering to tiny receiver pads. AMASS silicone wire is "burn-proof" and remains flexible enough to survive hard crashes without snapping off the pad.
Q4: How many amps can 26AWG safely carry?
A: For a 1-meter run, we recommend staying below 1.5A. It is perfect for peripherals like GPS modules (~0.1A) and receivers (~0.05A).
Q5: Will this wire fit in a 1.25mm JST-GH connector?
A: Yes, the 1.1mm outer diameter fits perfectly into the crimping pins for most standard micro-connectors (JST-SH, JST-GH) used in the drone industry.
Expert Guide Question: Are you using this to route power to a GPS/Magnetometer or for camera 5V leads? Depending on the distance from your flight controller, I can suggest the best twisting technique (braiding the red, black, and signal wires together) to minimize electromagnetic interference on your drone!
