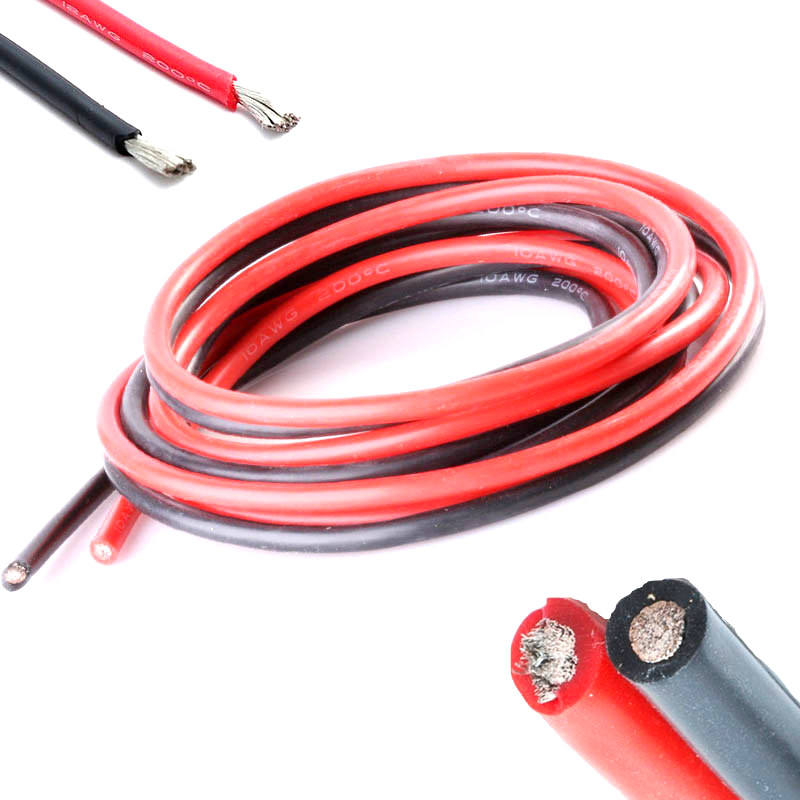

Genuine AMASS 16AWG Ultra Flexible Silicone Wire - High-Current Tinned Copper Power Cable (Red/Black)
In the 2026 FPV landscape, efficiency is found in the details. The AMASS 16AWG wire is engineered with approximately 252 individual micro-strands of 0.08mm copper. This creates a "silky" flexibility that is essential for routing wires through the tight, sharp-edged carbon fiber gaps of modern micro-frames.
Key Technical Advantages:
Vibration Resistance: The ultra-high strand count makes the wire immune to the high-frequency fatigue that causes stiffer wires to snap over time—a common cause of mid-air motor failures.
Tinned for Longevity: Each copper strand is coated in tin to prevent oxidation (the "black wire" syndrome) common in India’s humid climate, ensuring low internal resistance for the life of your build.
Extreme Thermal Ceiling: The silicone insulation is rated for -60°C to +200°C. It won't shrink or melt away from the joint when soldering to small, crowded ESC pads, even with a high-wattage iron.
Optimal for Sub-250g Builds: For 3.5-inch quads like the latest Cinewhoop generation, 16AWG provides the necessary ampacity for 40A ESCs while remaining significantly thinner and lighter than 14AWG.
Soldering Ease: The tinned surface is "solder-hungry," allowing for fast, clean, and shiny joints with minimal heat soak into the rest of the wire.
FAQ: Top 5 Questions on AMASS 16AWG Wire
Q1: Can I use 16AWG as the main battery lead for a 5-inch 6S quad?
A: We don't recommend it. A 5-inch quad can draw 100A+ during punch-outs. For the main battery pigtail, you should use 12AWG or at least 14AWG. 16AWG is perfect for the individual motor leads on that same quad.
Q2: What is the benefit of "Tinned Copper" vs bare copper?
A: Bare copper turns black or green (oxidizes) when exposed to moisture, which drastically increases resistance and makes soldering difficult. Tinned copper is essentially "pre-soldered," making it much easier to work with and far more durable in humid environments.
Q3: How many strands are actually in the 16AWG wire?
A: AMASS 16AWG features 252 strands of 0.08mm wire. This is what gives it that "shoelace" flexibility compared to standard hardware-store wire that might only have 10-20 thicker strands.
Q4: Will the insulation melt if I'm soldering it to a crowded 4-in-1 ESC?
A: No. Genuine high-temp silicone is rated to 200°C. It won't melt or pull back like cheap PVC-insulated wires, which is crucial when you are soldering near delicate SMD components.
Q5: Is 16AWG the right size for an XT30 connector?
A: It is the "perfect" size. 16AWG fits into the solder cups of an XT30U or XT30G beautifully, providing a clean, professional finish for 2S-4S micro-builds.
Expert Guide Question: Are you using this for motor phase wires on a 5-inch freestyle rig or as the main power lead for a sub-250g toothpick? Depending on your peak amp draw, I can help you confirm if 16AWG is the most efficient choice for your battery-to-ESC link!
