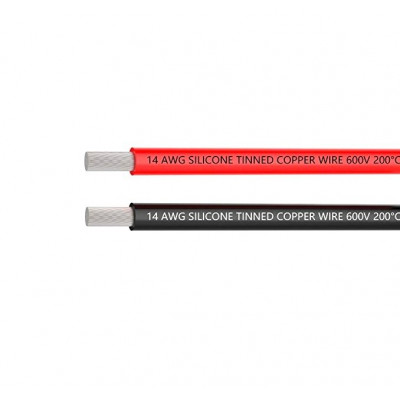

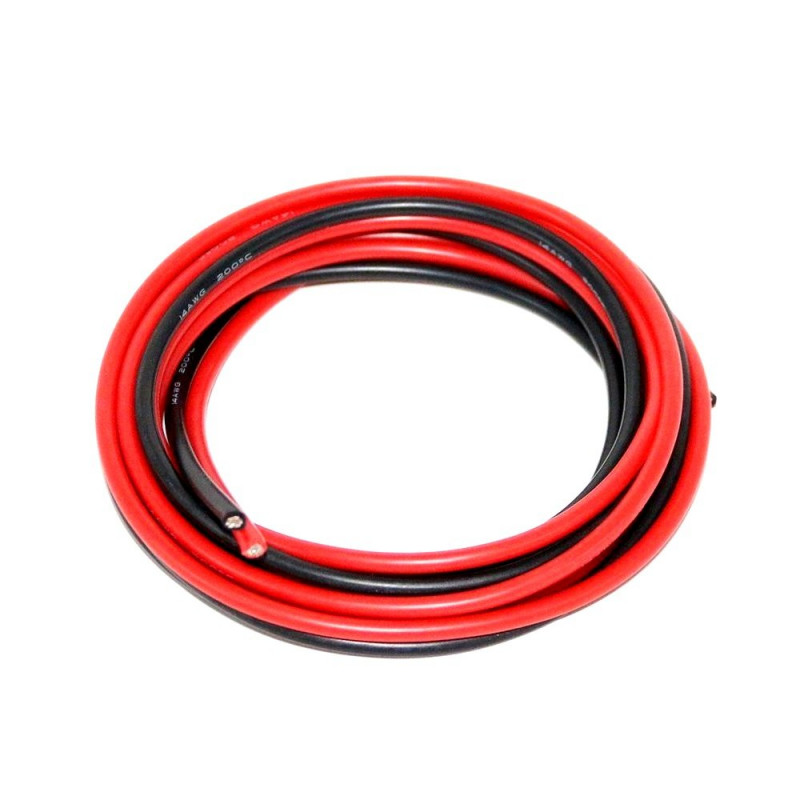

AMASS 14AWG Ultra Flexible Silicone Wire - High-Current Tinned Copper Power Cable (Red/Black)
In the 2026 FPV landscape, the rise of high-power 3.5-inch and 4-inch drones demands better wiring. AMASS has engineered this 14AWG wire with over 400 individual micro-strands of 0.08mm copper. This creates a cable that is incredibly supple, allowing pilots to weave it through tiny micro-frames without putting physical strain on delicate AIO (All-In-One) flight controllers.
Key Technical Advantages:
Perfect Weight-to-Power Ratio: Delivering excellent current capacity (up to 55A burst) while weighing significantly less than 12AWG. This is crucial for keeping 4S/6S micro quads under the strict 250g legal limit.
Corrosion-Resistant Core: The high-purity tinned copper construction ensures that the wire will not oxidize (turn green and brittle), even during humid Indian monsoons or post-crash moisture exposure.
High-Temp Silicone Jacket: Rated from -60°C to +200°C, this wire laughs at the heat of your soldering iron. You can solder it directly to tiny ESC pads without the jacket shrinking back or melting.
Zero-Memory Flexibility: The ultra-soft jacket and high strand count mean the wire doesn't "spring" back, allowing for beautiful, stress-free wire routing in tight Cinewhoop ducts.
Connector Versatility: 14AWG is the absolute maximum size that fits into an XT30 connector, and it also solders cleanly into an XT60, making it incredibly versatile for your workbench.
FAQ: Top 5 Questions on AMASS 14AWG Wire
Q1: Can I use 14AWG for my 5-inch 6S freestyle drone's main battery lead?
A: We do not recommend it. A modern 6S 5-inch quad can draw 80A to 120A during a punch-out. 14AWG will act as a bottleneck, heating up and causing voltage sag. Use 12AWG for 5-inch battery leads.
Q2: Is 14AWG the right size for an XT30 connector?
A: Yes, 14AWG is the largest wire gauge you can comfortably solder into an XT30 plug. It is the preferred combination for high-power 3.5-inch to 4-inch drones.
Q3: Can I use this wire to extend my motor wires?
A: Absolutely. If you are building a 7-inch long-range or a 10-inch cinematic rig and your motor wires don't reach the center-mounted 4-in-1 ESC, 14AWG is the perfect extension wire.
Q4: Will this wire melt when I solder it to a tiny AIO board?
A: No! Because genuine AMASS uses high-temperature silicone rated for 200°C, the insulation will not melt or shrink back like cheap PVC wire when you apply a 400°C soldering iron.
Q5: How is this different from standard electrical wire from a hardware store?
A: Hardware store wire (like automotive wire) usually has fewer, thicker strands and a stiff PVC jacket. AMASS wire has 400 microscopic strands and a soft silicone jacket, making it highly flexible to survive flight vibrations without snapping.
Expert Guide Question: Are you building a sub-250g 4S micro drone or extending the phase wires on a larger motor? Depending on your application, I can help you pick the perfect genuine AMASS XT30U or XT60H connectors to match this 14AWG wire flawlessly!
