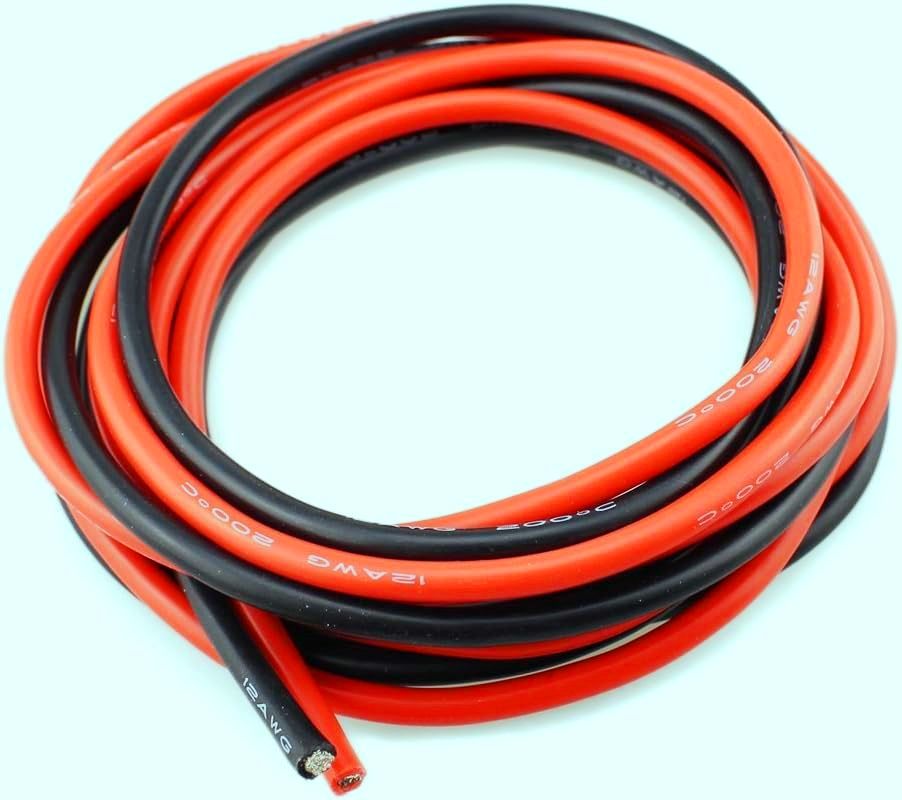

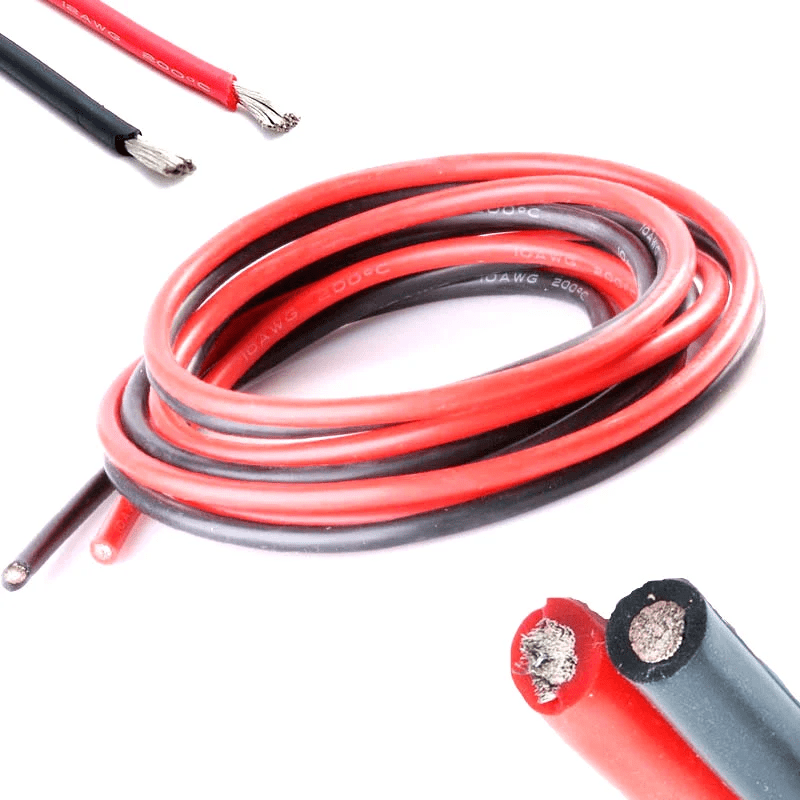

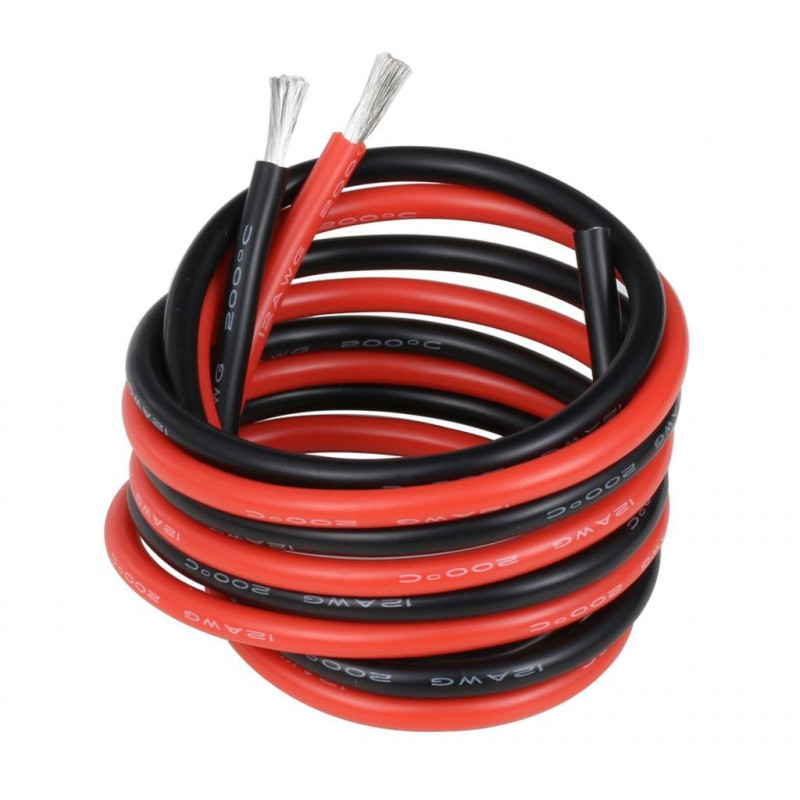

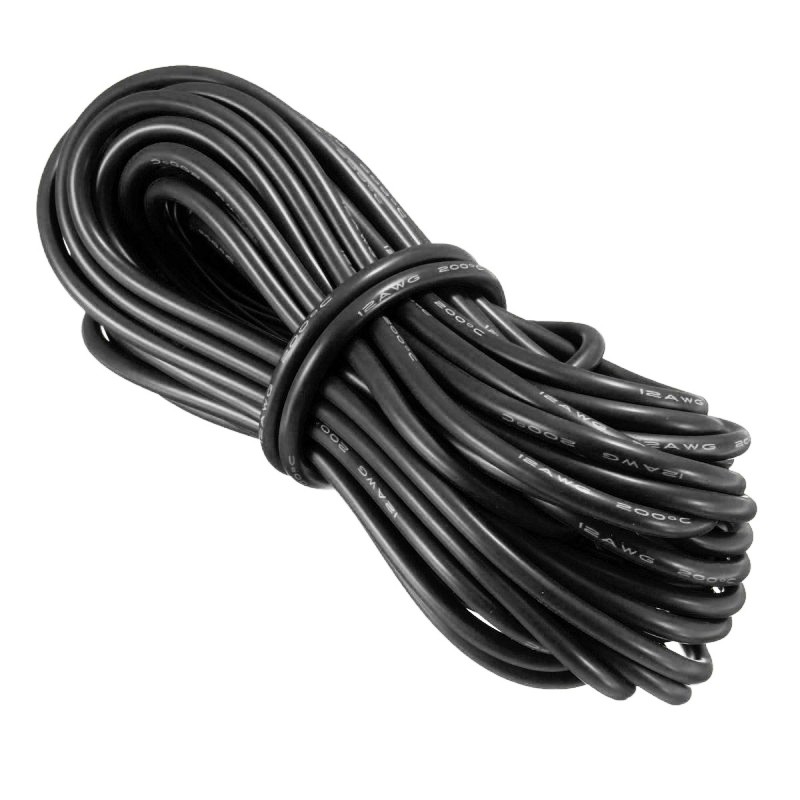

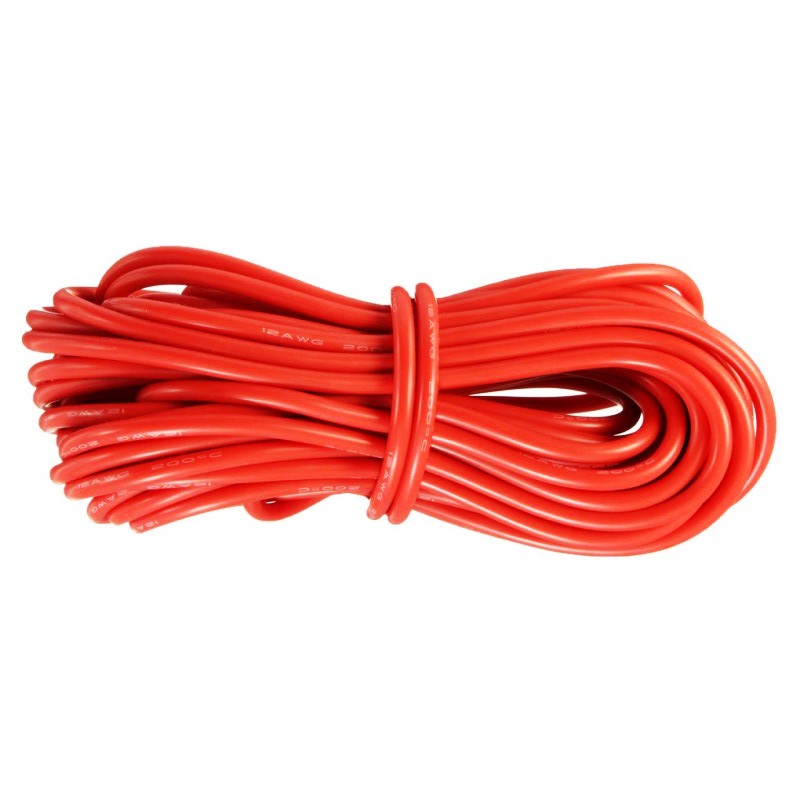

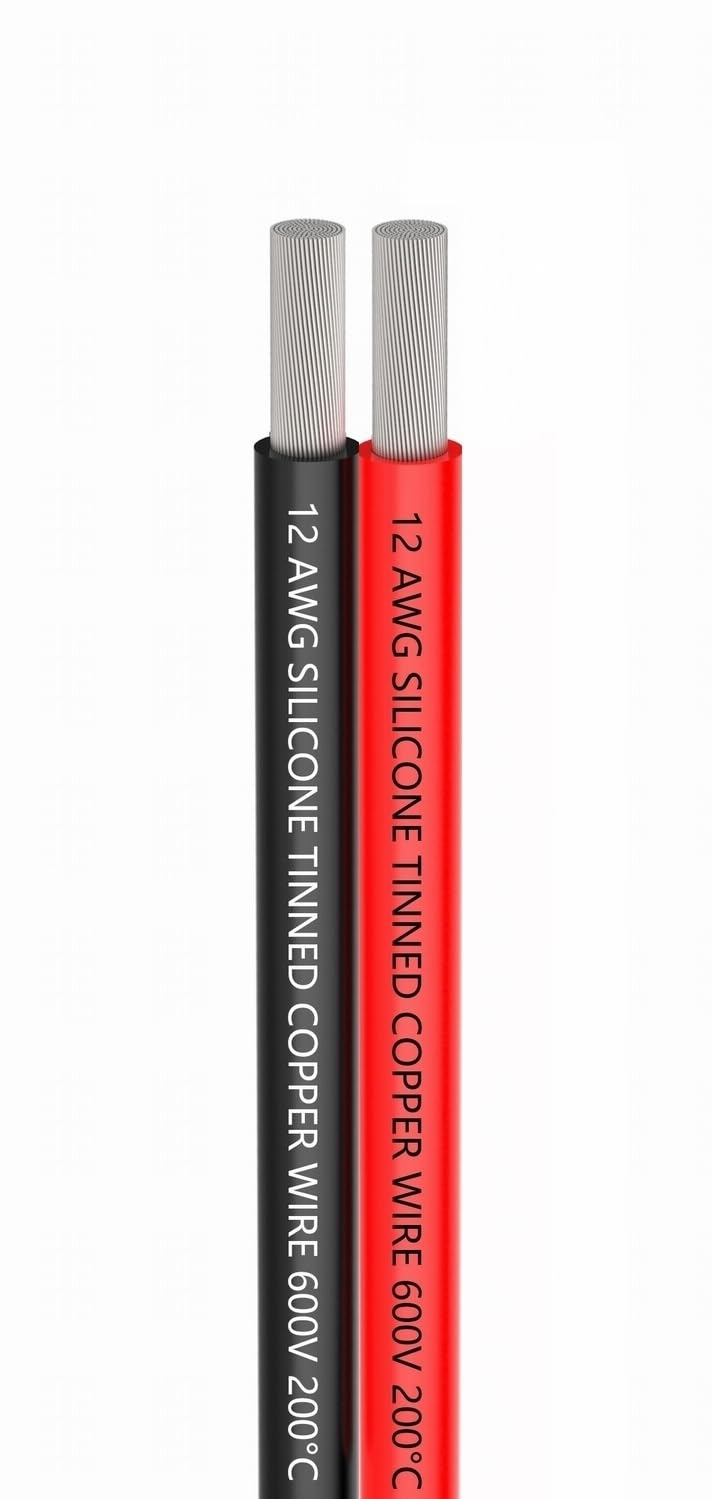

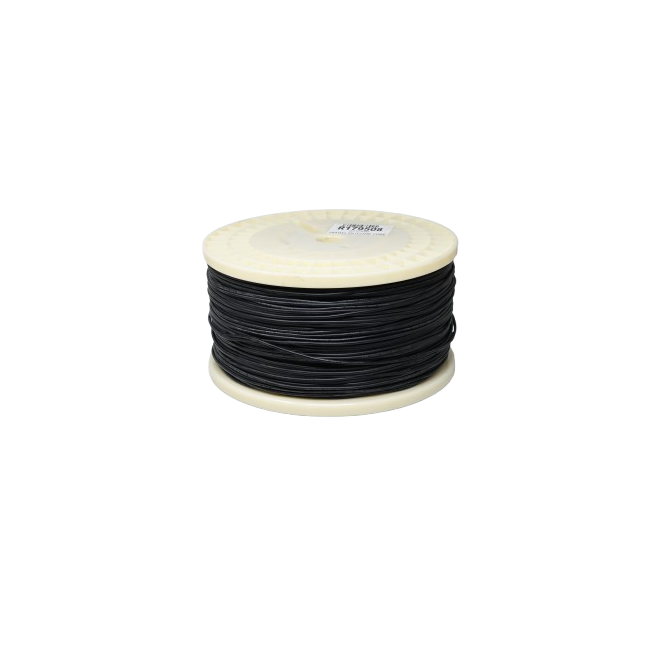

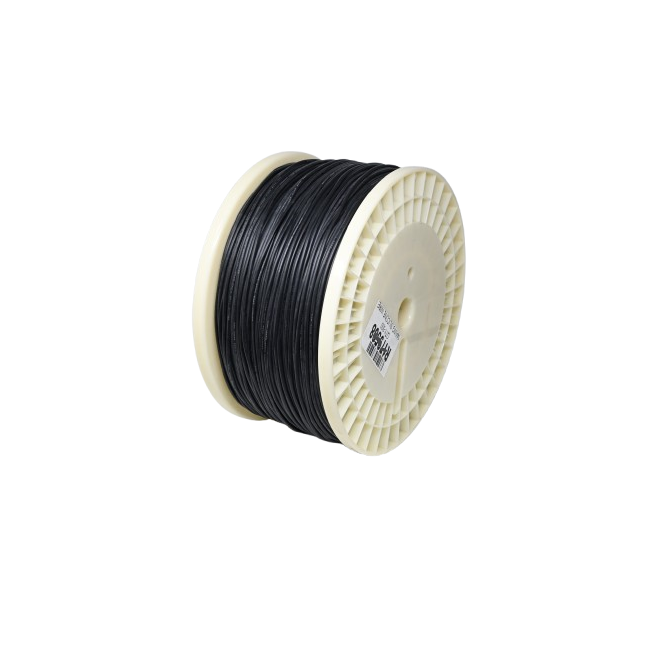

AMASS 12AWG Ultra Flexible Silicone Wire - High-Current Tinned Copper Power Cable (Red/Black)
In the 2026 FPV ecosystem, 12AWG is the most versatile wire in a pilot’s toolkit. AMASS has perfected this cable with 680 individual micro-strands, creating a wire so flexible it can be tied in knots without stressing the copper core. For Indian pilots, this flexibility is a lifesaver—it allows for tight routing around stacks and through carbon fiber frames without putting pressure on delicate solder joints.
Key Technical Advantages:
Industrial Conductivity: Using high-purity tinned copper, this wire prevents oxidation (the "green wire" disease) even when exposed to high humidity and corrosive environments.
Extreme Thermal Ceiling: The silicone insulation is rated for -60°C to +200°C. It won't melt when you're soldering with a high-wattage iron, and it won't get brittle in the freezing altitudes of long-range mountain surfing.
High-Current Handling: Optimized for continuous draws of 45A to 60A, it’s the perfect match for the 60A ESCs that have become the standard for 2026 freestyle builds.
Abrasion Resistance: Despite its soft feel, the silicone jacket is remarkably tough, resisting the "sawing" effect that can happen when wires rub against sharp carbon fiber edges during high-speed flight.
Soldering Ease: The tinned coating makes it "solder-hungry," meaning you get a perfect, shiny joint every time with minimal heat exposure to the wire itself.
Top 5 Questions on AMASS 12AWG Wire
Q1: Is 12AWG enough for a high-power 6S freestyle quad?
A: Absolutely. 12AWG is the "sweet spot" for 5-inch quads. It handles the current of a 60A ESC while staying significantly lighter and more flexible than 10AWG.
Q2: Can I use this for motor phase wires?
A: You can, but it’s usually overkill and quite heavy for that. Most motors use 16AWG or 18AWG. 12AWG is best reserved for the main battery leads where the total current of all four motors is combined.
Q3: Why is AMASS wire more expensive than generic silicone wire?
A: You’re paying for strand count and purity. Generic wire often has fewer, thicker strands, making it stiff and prone to cracking. AMASS uses 0.08mm micro-strands and high-grade silicone that doesn't smell like chemicals or melt under a soldering iron.
Q4: How do I choose between 10AWG and 12AWG?
A: If your drone is a 5-inch to 7-inch quad, go with 12AWG. If you are building a heavy-lift 10-inch cruiser or an industrial sprayer drone (10L+), step up to 10AWG.
Q5: What is the best connector to pair with this wire?
A: The AMASS XT60H is the perfect partner for 12AWG. The solder cups on an XT60 are sized specifically to take 12-gauge wire for a flush, professional finish.
Expert Guide Question: Are you using this for a new 6S build or a high-current ground station? Depending on the length of your cable run, I can help you calculate the Voltage Drop to ensure you aren't losing precious flight time to wire resistance!
