AKK X2 Ultimate VTX
₹2,799.00
Out of stock
The AKK X2 Ultimate VTX is a powerful 5.8GHz video transmitter designed for long-range FPV flying. With switchable power output from 25mW to an impressive 1000mW, it ensures high-quality video transmission and minimal interference. Supporting SmartAudio and Betaflight integration, it allows in-OSD control of band, channel, and output levels. Its MMCX connector offers durability, while a metal shell provides protection and cooling. Whether you're flying freestyle or racing, the X2 Ultimate offers an optimal mix of range, clarity, and reliability in a lightweight form factor.
Product Details
Features
- 25mW/200mW/600mW/1000mW power switchable
- MMCX connector for secure and durable antenna connection
- SmartAudio support for Betaflight OSD control
- One-button frequency and power setup
- LED panel indicator for band, channel, and power
- Built-in microphone for audio monitoring
- Wide voltage input (7-26V), supports 2S-6S LiPo
- Compact, lightweight design with partial metal shielding
- 5V output for powering FPV camera
Technical Specifications
- Frequency Band: 5.8GHz
- Power Output: 25mW / 200mW / 600mW / 1000mW
- Input Voltage: 7V–26V (2S–6S LiPo)
- Output Voltage: 5V (for FPV camera)
- Antenna Connector: MMCX
- Control Interface: SmartAudio, push-button
- Size: Compact (exact dimensions not specified)
- Weight: Lightweight form factor
- Microphone: Integrated

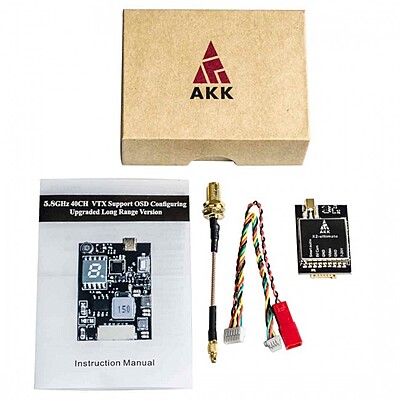

Package Includes
- 1 x AKK X2 Ultimate FPV Transmitter
- 1 x MMCX Antenna and Cable Set
- 1 x Product Manual
Additional Details:
- Long-range transmission up to 20KM in ideal conditions
- Improved metal-shell design for better durability and heat dissipation
- Ideal for freestyle and long-range FPV quads
- Compatible with major flight control systems supporting Betaflight
- Meets FCC standards (US version)
- High-Power FPV Video Transmitter || 5.8GHz Long Range VTX || Smart Audio FPV Transmitter || Brushless Drone VTX Module || Betaflight-Compatible VTX || RC Drone Video Module || MMCX FPV VTX || Adjustable Power FPV Transmitter
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Frequently Asked Questions
Q1: Is the power output adjustable through Betaflight OSD?
A: Yes, using SmartAudio you can change band, channel, and power through Betaflight OSD.
Q2: What is the maximum input voltage?
A: It supports up to 26V, making it compatible with 6S LiPo batteries.
Q3: Can I use this VTX for long-range flying?
A: Yes, with 1000mW power, it's optimized for long-range FPV flights.
Q4: Does it support pit mode?
A: Yes, the VTX includes pit mode functionality.
