AKK Ultra Long Range VTX
₹4,999.00
Out of stock
The AKK Ultra Long Range VTX is a powerhouse in the FPV world, delivering up to an extraordinary 3000mW of transmission power. Built for enthusiasts who push their gear to the limits, this VTX offers crystal-clear video feeds and unmatched long-range capability—exceeding 10km in ideal conditions. With integrated SmartAudio, active cooling fan, and advanced self-cooling design, it ensures optimal performance even during intensive long-range flights. Designed for serious FPV pilots, this VTX redefines what’s possible in 5.8GHz transmission.
Product Details
Features
- Ultra-long range transmission over 10km (in ideal environments)
- SmartAudio support for remote OSD configuration
- Clear video output with minimal interference

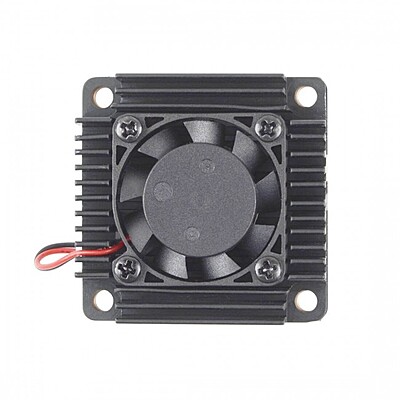

- Self-cooling system with integrated fan and heatsink
- 6-level switchable power: 25mW / 250mW / 500mW / 1000mW / 2000mW / 3000mW
- Wide input voltage range (8V–28V)
- 5V output for FPV camera power supply
- Built-in microphone for in-flight audio feedback
- MMCX connector for robust antenna connection
Technical Specifications
- Input Voltage: 8V to 28V (2S–6S compatible)
- Output Power Levels: 25mW / 250mW / 500mW / 1000mW / 2000mW / 3000mW
- Extra Features: Smart Audio, Cooling Fan, Built-in Mic
- Power Supply Output: 5V @ max 500mA (for camera)
- Antenna Connector: MMCX
- Cable Connector: JST, 6-pin

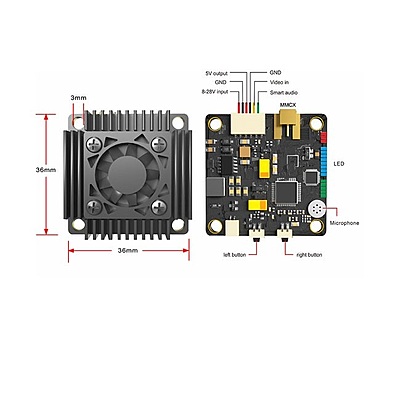

- Dimensions: 36mm x 36mm; Mounting Holes: 30.5mm x 30.5mm
- Weight: 23g (excluding antenna)

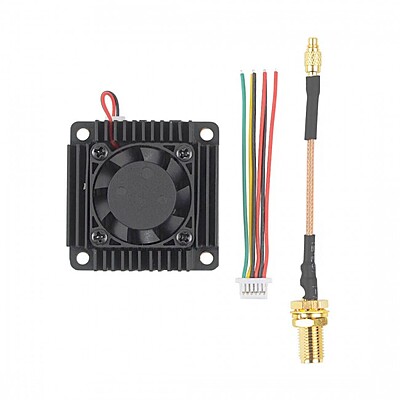

Package Includes
- 1x AKK Ultra Long Range VTX
- 1x JST Cable
Additional Details
- Ideal for ultra long-range FPV drones and professional setups.
- Heat management system increases durability and signal stability.
- Compatible with Betaflight OSD configuration tools.
- Use with directional antennas for extended range.
- Best performance observed with 5.8GHz circular polarized antennas.
- Ultra-Long Range FPV Video Transmitter || 5.8GHz Monster VTX || High Power FPV Drone VTX || Smart Audio VTX Module || Long Range Racing VTX || Brushless Quadcopter Video Transmitter || MMCX VTX with Cooling Fan
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Frequently Asked Questions
Q1: Can I use this VTX with a 4S battery?
A: Yes, it supports 2S to 6S batteries, so 4S is fully compatible.
Q2: How far can this VTX reach?
A: In ideal, interference-free environments, it can exceed 10km of range.
Q3: Does it support SmartAudio for remote channel adjustment?
A: Yes, it fully supports SmartAudio for OSD-based control.
Q4: What kind of antenna does it require?
A: It uses an MMCX connector, compatible with many FPV antennas.
Q5: Is the fan always running?
A: Yes, the fan is integrated for active cooling during operation.
Channel:
Channel 1 2 3 4 5 6 7 8 1 (Band A) 5865 5845 5825 5805 5785 5765 5745 5725 2 (Band B) 5733 5752 5771 5790 5809 5828 5847 5866 3 (Band E) 5705 5685 5665 5645 5885 5905 5925 5945 4 (Band F) 5740 5760 5780 5800 5820 5840 5860 5880 5 (Race Band) 5658 5695 5732 5769 5806 5843 5880 5917
| Channel | 1 | 2 | 3 | 4 | 5 | 6 | 7 | 8 |
|---|---|---|---|---|---|---|---|---|
| 1 (Band A) | 5865 | 5845 | 5825 | 5805 | 5785 | 5765 | 5745 | 5725 |
| 2 (Band B) | 5733 | 5752 | 5771 | 5790 | 5809 | 5828 | 5847 | 5866 |
| 3 (Band E) | 5705 | 5685 | 5665 | 5645 | 5885 | 5905 | 5925 | 5945 |
| 4 (Band F) | 5740 | 5760 | 5780 | 5800 | 5820 | 5840 | 5860 | 5880 |
| 5 (Race Band) | 5658 | 5695 | 5732 | 5769 | 5806 | 5843 | 5880 | 5917 |
Notes:
PLUG THE ANTENNA BEFORE POWERING THE VTX
PLUG THE ANTENNA BEFORE POWERING THE VTX
