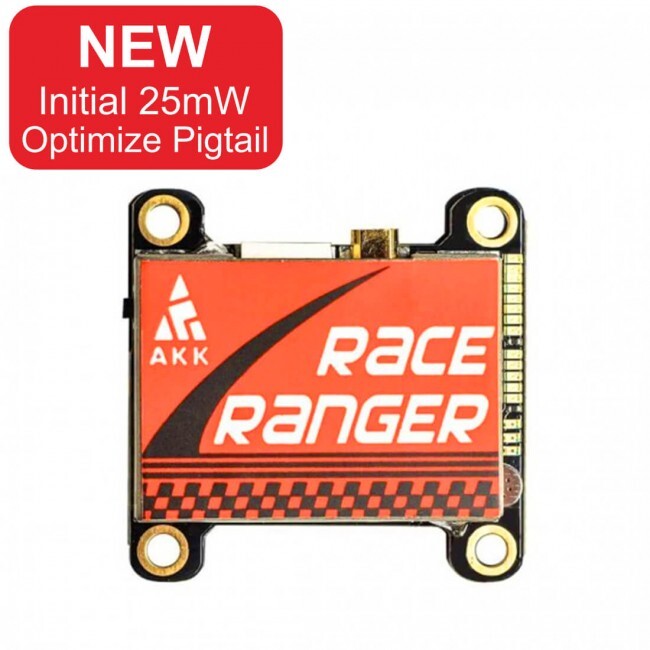

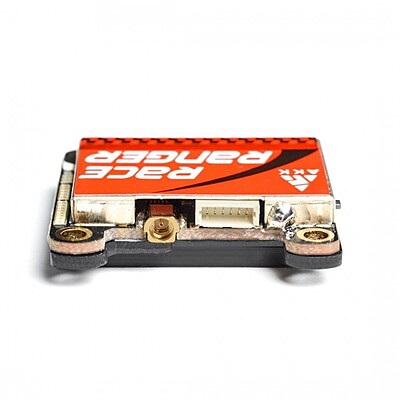

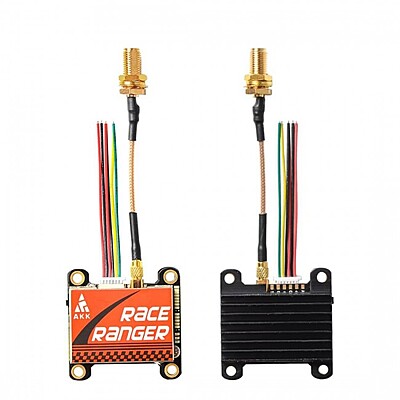

AKK Race Ranger VTX
₹2,799.00
Out of stock
The AKK Race Ranger VTX is a high-performance 5.8GHz FPV video transmitter designed for serious FPV racers and freestyle pilots. With a power output up to 1600mW, SmartAudio support, and a built-in microphone, this VTX ensures crystal-clear transmission and long-range performance. Its rugged full-metal shell provides exceptional protection during crashes, while the wide 7V–28V input range offers compatibility with 2S–6S batteries. Easy to configure via one-button control or Betaflight OSD, it also includes visual LED indicators for quick setup. Whether racing or cruising, the AKK Race Ranger delivers unmatched stability, versatility, and range in any FPV environment.
Product Details
Features
- Up to 1600mW output power for extended transmission range
- SmartAudio compatible for in-OSD control via Betaflight
- One-button setup for power and channel control
- Built-in microphone for live audio transmission
- Full metal shell for enhanced durability and crash resistance
- Clear LED indicators: 8 blue (channels), 5 green (bands), 3 red (power)
- Wide input voltage support: 7V to 28V (2S to 6S LiPo compatible)
- 5V output to power FPV camera (up to 500mA)
- Lightweight and compact design
Technical Specifications
- Input Voltage: 7V to 28V (2S–6S LiPo)
- Output Power: 200mW / 400mW / 800mW / 1600mW
- Power Supply to Camera: 5V @ under 500mA
- Antenna Connector: MMCX
- Cable Connector: JST, 6-pin
- Dimensions: 36mm (W) × 36mm (D)
- Mounting Holes: 30.5mm x 30.5mm (standard)
- Weight: 16.81g (excluding antenna)
- Extra Features: SmartAudio, Built-in Mic
Package Includes
- 1 × AKK Race Ranger VTX
- 1 × 6-pin JST Cable
Additional Details
- Designed for FPV drones requiring long-distance and low-interference video transmission.
- Perfect for both freestyle and competitive FPV flying.
- Metal casing helps in passive heat dissipation.
- Compatible with major FPV cameras and flight controllers.
- Supports Betaflight OSD control through SmartAudio.
- Easy installation with standard 30.5mm mounting holes.
- FPV Video Transmitter Module || 5.8GHz AV Signal Transmitter || Long-Range Drone VTX || SmartAudio-Compatible VTX || RC Drone FPV Module || Adjustable Power FPV Transmitter || Mini Quadcopter VTX Unit || MMCX Connector FPV Transmitter || High Power Output VTX || Brushless Racing Drone Video Transmitter
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Frequently Asked Questions
Q1: Does the AKK Race Ranger VTX support SmartAudio?
Yes, it fully supports SmartAudio for channel and power adjustment via Betaflight OSD.
Q2: What battery types are compatible?
It supports 2S to 6S LiPo batteries (7V–28V).
Q3: Is the VTX protected against crashes?
Yes, it features a full metal shell for durability and crash resistance.
Channel 1 2 3 4 5 6 7 8 (MHz)
-------------------------------------------------------------------------------------------
1 (Band A) 5865 5845 5825 5805 5785 5765 5745 5725 MHz
2 (Band B) 5733 5752 5771 5790 5809 5828 5847 5866 MHz
3 (Band E) 5705 5685 5665 5645 5885 5905 5925 5945 MHz
4 (Band F) 5740 5760 5780 5800 5820 5840 5860 5880 MHz
5 (Race Band) 5658 5695 5732 5769 5806 5843 5880 5917 MHz
