AKK Nano Race VTX
₹1,299.00
Out of stock
The AKK Nano Race VTX is an ultra-compact, lightweight FPV video transmitter built for micro and racing drones. Weighing just 1.5g with dimensions of only 14x14mm, this VTX offers excellent space efficiency without compromising performance. Featuring Smart Audio, Pit Mode, and selectable power levels up to 400mW, it ensures reliable and clear video transmission with minimal interference. Perfect for tight builds and serious racers.
Product Details
Features
- Ultra-compact and lightweight at only 1.5g
- Smart Audio enabled for Betaflight OSD configuration
- Supports Pit Mode for race-ready setups
- Adjustable output power: 25mW/200mW/400mW
- Strong signal transmission with minimal power drop
- 14x14mm nano size ideal for micro drone builds
- MMCX antenna connector for durability and flexibility
- Solder pad cable connection for clean installations
Technical Specifications
- Input Voltage: 5V
- Output Power: 25mW / 200mW / 400mW
- Extra Features: Smart Audio, Nano Size
- Power Supply: N/A
- Antenna Connector: MMCX
- Cable Connector: Solder Pads

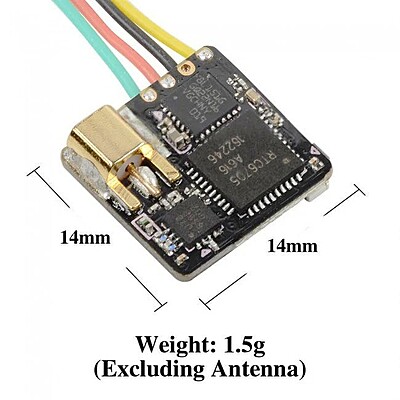

- Dimensions: 14 x 14 mm
- Weight: 1.5g (excluding antenna)
- Channels: 40CH (note: 5645/5925/5945 removed due to FCC)
Package Includes
- 1x AKK Nano Race VTX

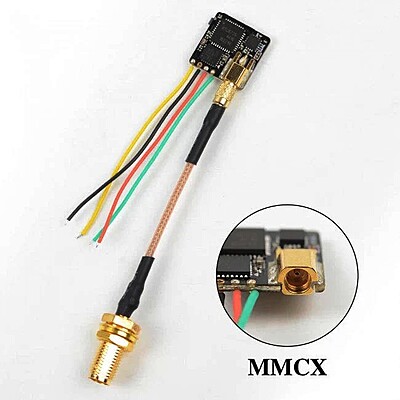

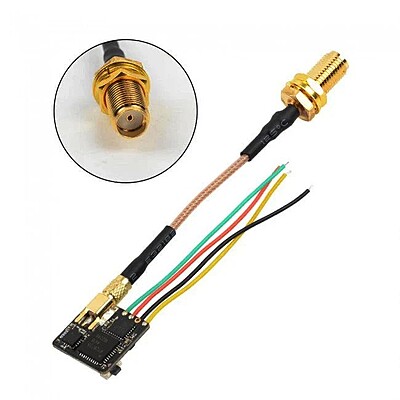

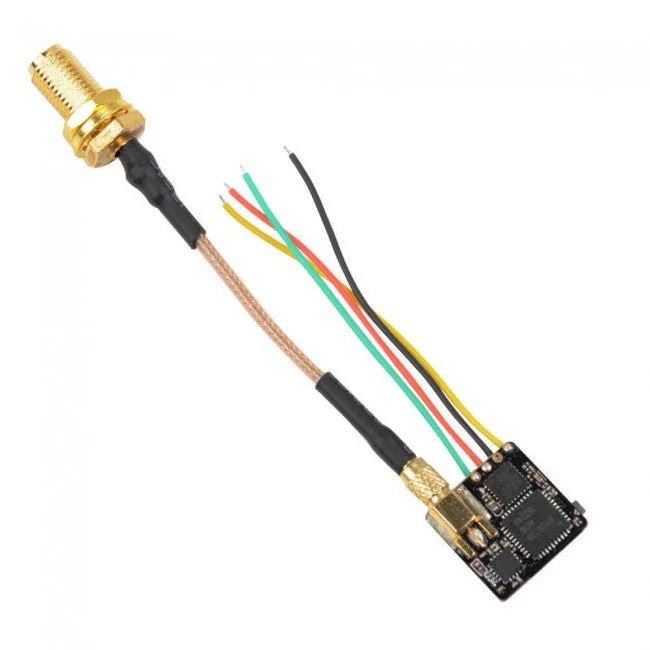

- 1x MMCX to SMA pigtail
Additional Details
- Nano-sized VTX optimized for weight-sensitive builds
- Better power stability and signal strength than other nano-class VTXs
- FCC-compliant with restricted channel removal
- Built-in features for competitive racing environments
- Compatible with most FPV goggles and flight controllers supporting Smart Audio
- High-Performance FPV Video Transmitter || Nano FPV VTX Module || Mini Drone VTX || Brushless Racing Drone Video Transmitter || Lightweight FPV Transmitter || 5.8GHz VTX for Mini Quads || Smart Audio Enabled FPV VTX
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Frequently Asked Questions
Q1: Can I change channels and power from Betaflight OSD?
A. Yes, the VTX supports Smart Audio, allowing full control via Betaflight.
Q2: Is this VTX suitable for 5V-only power setups?
A. Yes, it operates on a clean 5V input and does not support variable voltage ranges.
Q3: What drones is this suitable for?
A. Ideal for nano, micro, and lightweight racing drones due to its ultra-small size and low weight.
