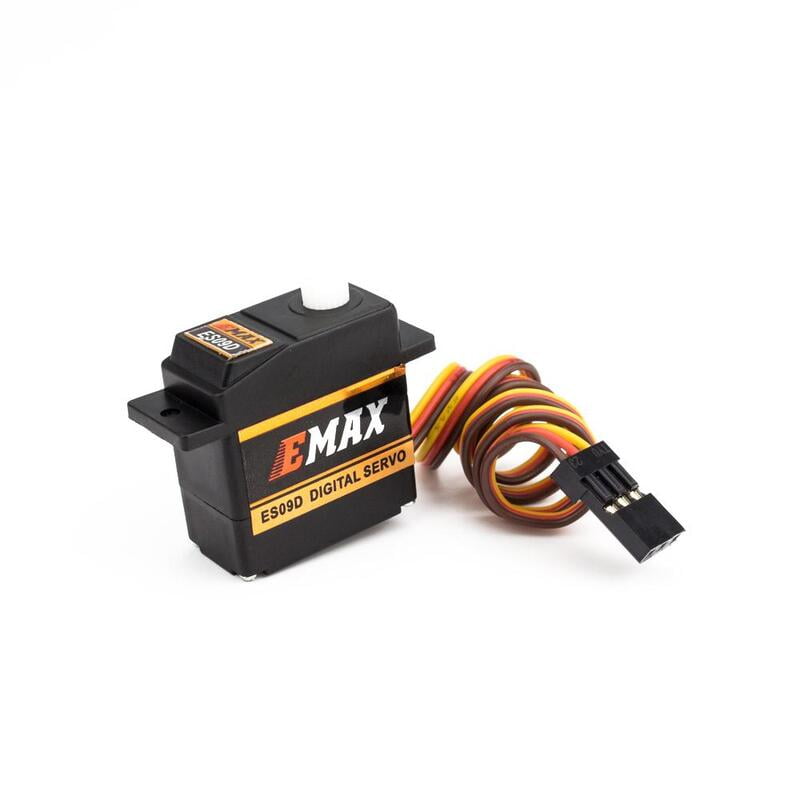

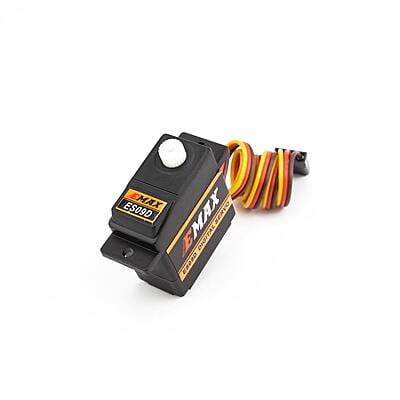

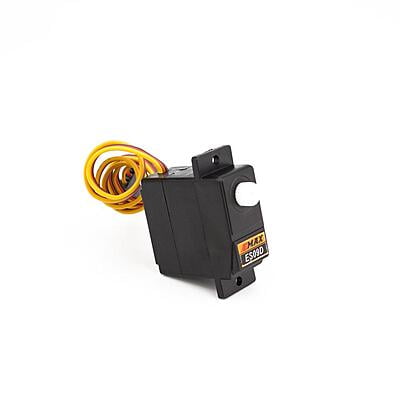

EMAX ES09D Servo
₹899.00
Out of stock
- Voltage: 4.8-6.0 V
- Torque: 2.2 / 2.4kgf.cm
- Rate: 0.11 / 0.09 s / 60 degrees
- STD Direction: Counter Clockwise/ Pulse travelling 1500 to 1900 μsec
- Gears: Plastic Gears
- Bearing Type: Dual-bearing
Product Details
The EMAX ES09A is a high-quality analog-servo for RC 450 helicopter. With plenty of torque and ample speed, the ES09A is the perfect budget everyday servo. Supplied with mounting hardware and additional servo output arms.
Features:
- NOBLE potentiometer, assuring high accuracy and coherence.
- Dual-bearing and large diameter shaft design minimize the diastema and keep the servo operating smoothly for a long time.
- Different structure strengthens gear hardness, maximizes transmission efficiency, and provides a higher torque from
- same drive current.
- Includes servo horns and mounting screws.
Package Includes:
1 x EMAX ES09A plastic analog servo
1 x Servo horns and fitting set
| Model | ES09A |
|---|---|
| Operating Voltage (VDC) | 4.8 ~ 6 |
| Operating Speed @4.8V | 0.11sec/60° at no load |
| Stall Torque @ 4.8V (Kg-Cm) | 2.2 |
| Operating Speed @6.0V | 0.09sec/60° at no load |
| Stall Torque @ 6.0V (Kg-Cm) | 2.4 |
| Gear Type | Plastic |
| Servo Plug | FUT;JR |
| Length (mm): | 23 |
| Width (mm): | 12 |
| Height (mm): | 24.5 |
| Weight (g): | 11.6 |
| Shipping Weight | 0.07 kg |
| Shipping Dimensions | 5 × 4 × 3 cm |
