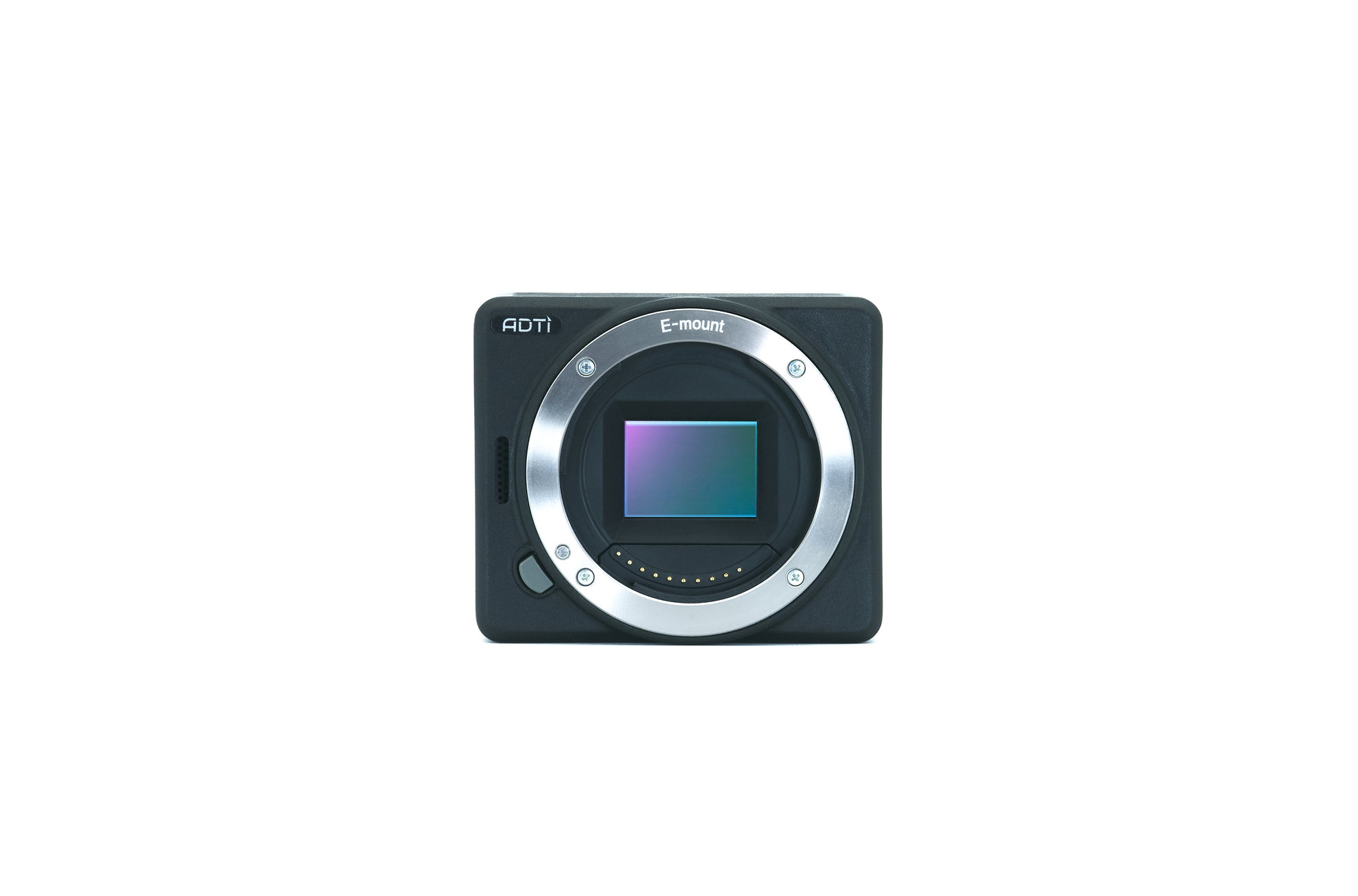

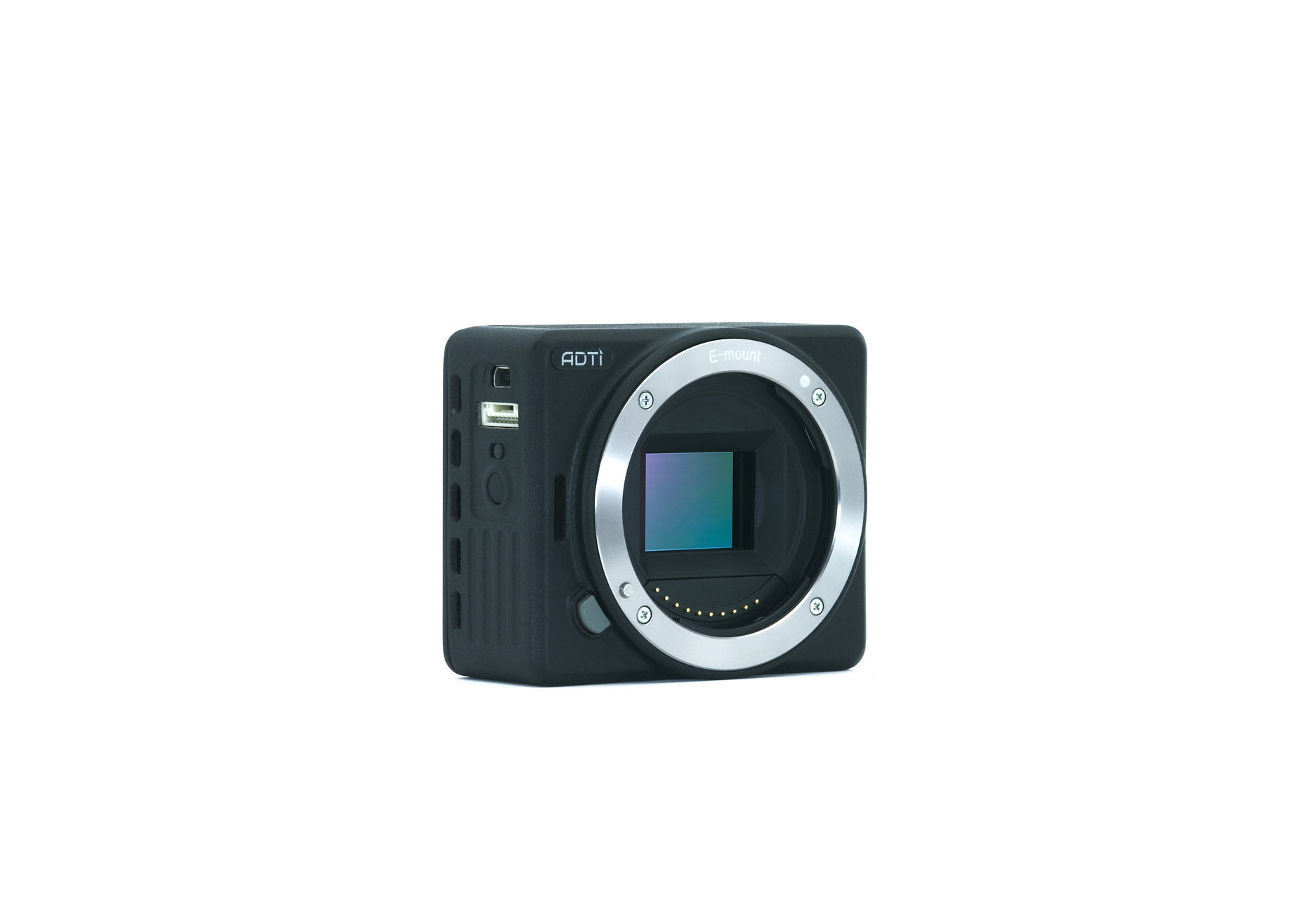

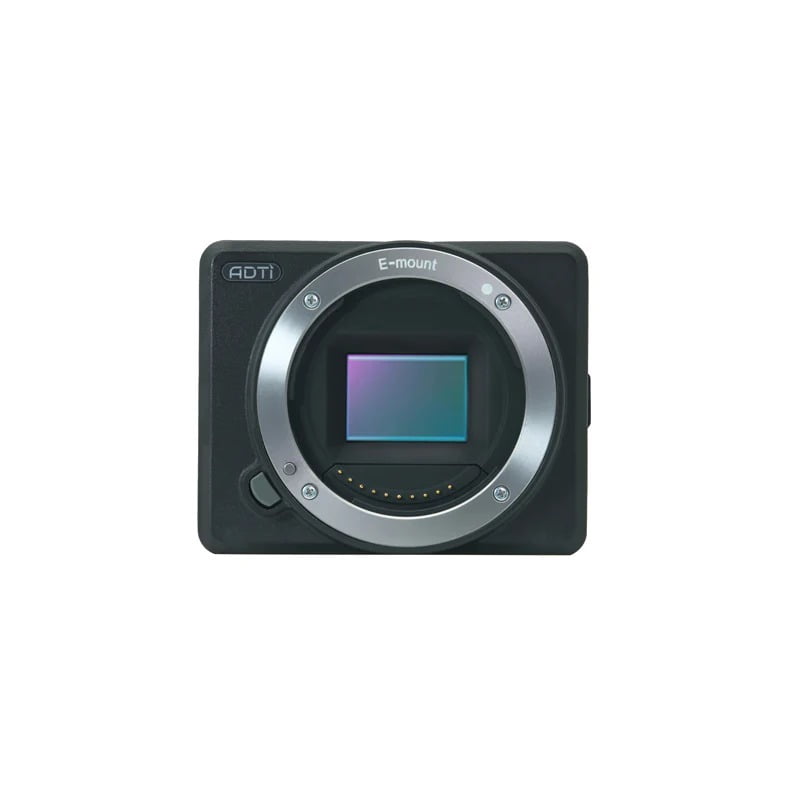

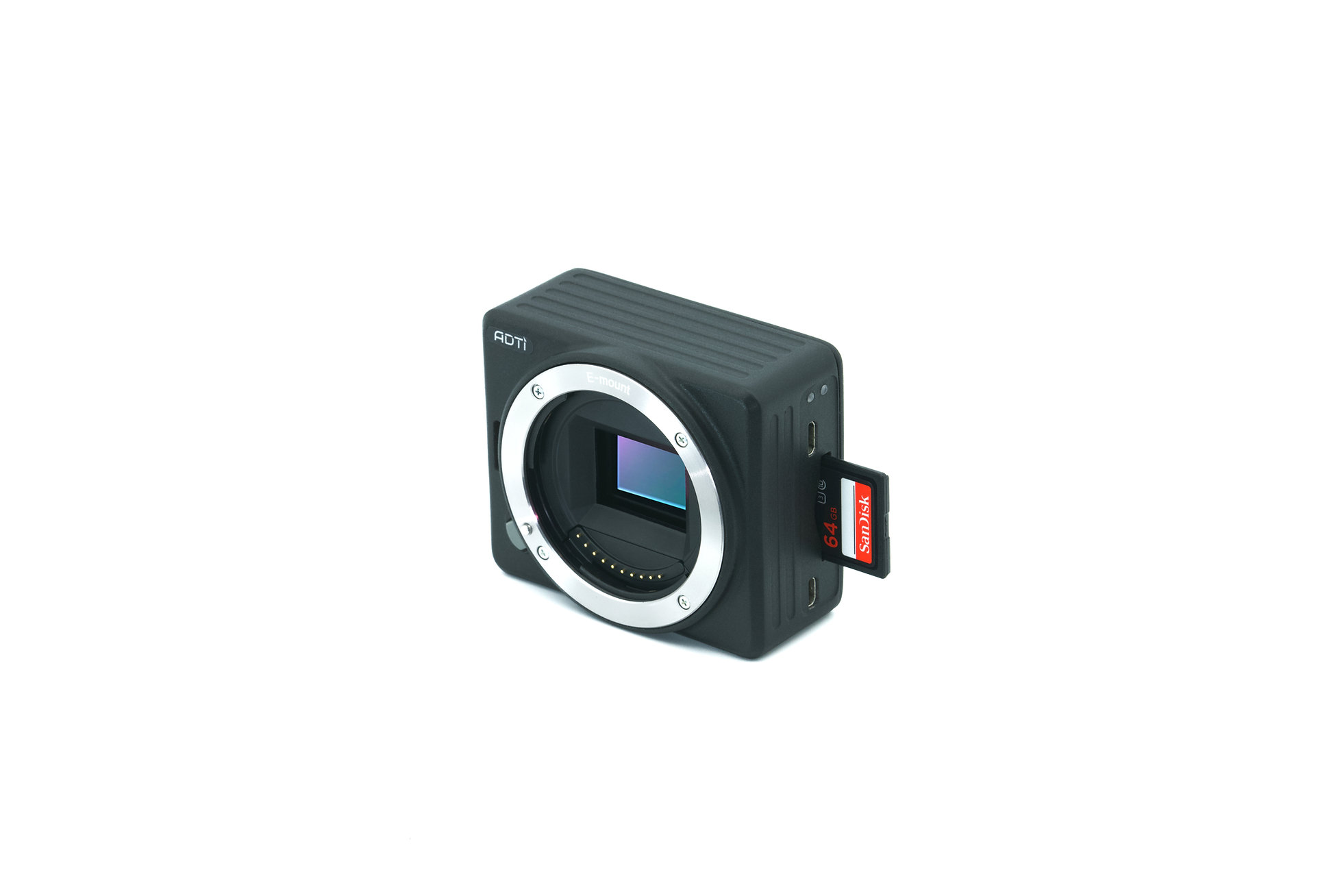

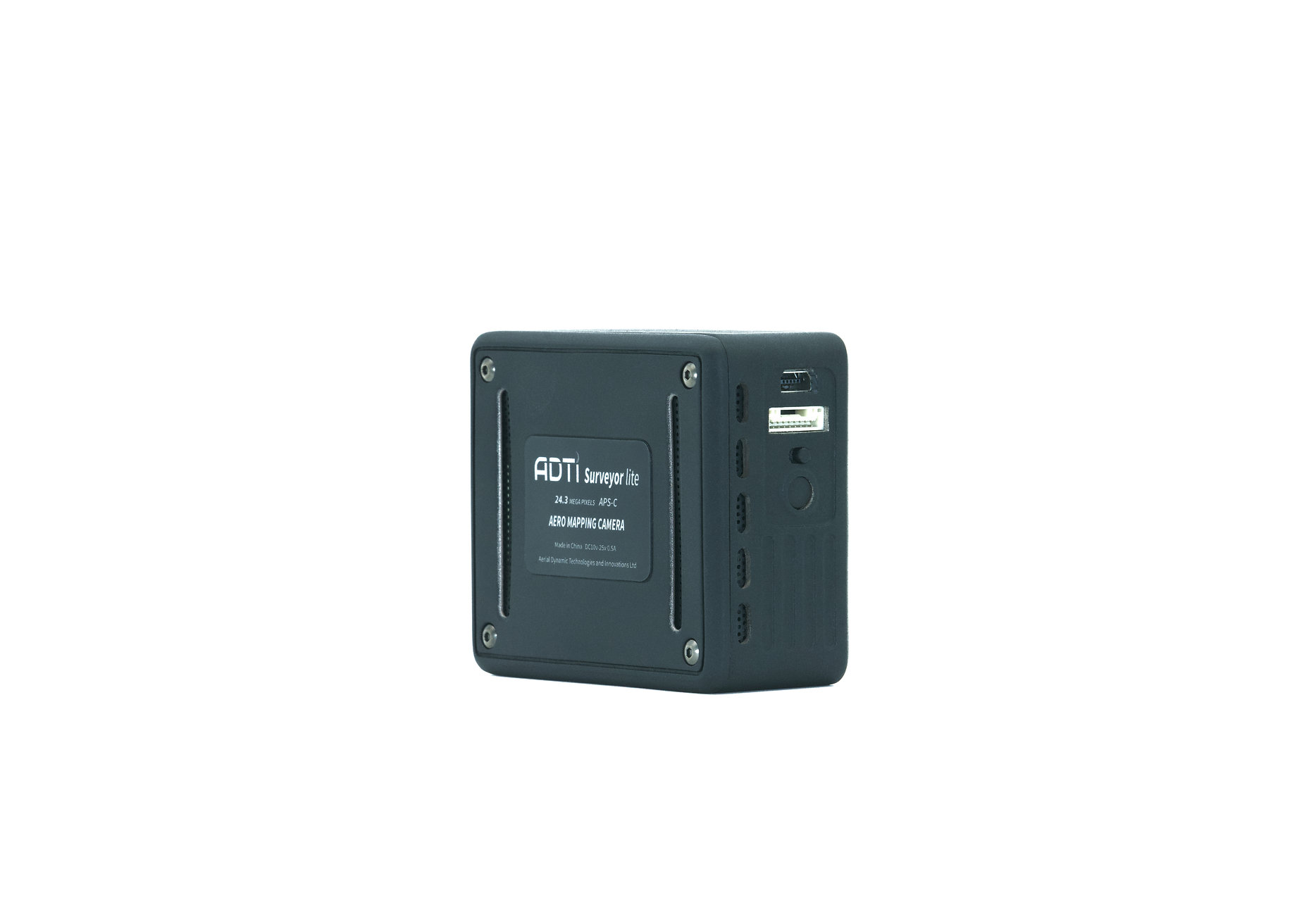

ADTI 24MP 24L V1 Surveyor Lite Drone Mapping Camera
₹150,000.00
Out of stock
The ADTI 24MP 24L V1 Surveyor Lite is a groundbreaking 24MP APS-C drone mapping camera designed for precision aerial surveying. Featuring a Sony CMOS sensor, active cooling, and a lightweight design, it delivers high-resolution 6000x4000 pixel images in JPEG/RAW format. Compatible with popular flight controllers and RTK/PPK modules, it's ideal for accurate mapping solutions.
Product Details
Features:
- High-resolution 24MP APS-C Sony CMOS sensor.
- Image resolution up to 6000 x 4000 pixels.
- Active cooling fan to prevent overheating.
- Lightweight and compact design (105g-120g body).
- Supports JPEG, RAW, RAW+JPEG formats.
- Compatible with Sony E-mount lenses (removable lens).
- Auto and Manual focus capabilities.
- Full HD video capture (1920x1080@60p).
- HDMI video output for real-time monitoring.
- Compatible with Pixhawk and ArduPilot (MAVlink).
Technical Specifications:
- Sensor Type:CMOS
- Sensor Manufacturer:Sony
- Effective Megapixels:24.3
- Sensor Format:APS-C
- Sensor size:366.6mm2 (23.50mm x 15.60mm)
- Approximate Pixel Pitch:3.92 microns
- Focal Length Multiplier:1.5x
- Aspect Ratio:3:2
- Color Filter Type:RGBG
- Anti Aliasing Filter:Fixed
- Color Depth （bits):23.8
- Maximum Effective ISO:1,347
- Image Capture
- Image Resolution: 6000 x 4000 (24.0 MP, 3:2), 6000 x 3376 (20.3 MP, 16:9), 4240 x 2832 (12.0 MP, 3:2), 4240 x 2400 (10.2 MP, Other), 3008 x 2000 (6.0 MP, 3:2), 3008 x 1688 (5.1 MP, 16:9), 12416 x 1856 (23.0 MP, Other), 8192 x 1856 (15.2 MP, Other), 2160 x 5536 (12.0 MP, Other), 2160 x 3872 (8.4 MP, Other)
- Image File Format:JPEG, RAW, RAW+JPEG
- Continuous-mode frames/second:4.0
- Video Capture
- Video Resolution: 1920x1080 (60p/60i/30p/24p), 1440x1080 (30p), 640x480 (30p)
- Video File Format:XAVC S/AVCHD 2.0 / MP4
- HD Video Out:Yes
- HD Video Connection:HDMI
- Lens & Optics
- Lens Mount:Sony E
- Normal Focus Range:25 cm to Infinity
- Auto Focus: Yes
- Manual Focus: Yes
- Display (detached)
- Power: 5V DC
- Buttons: Yes
- Screen Size: 5 inch
- Camera Size: 7.3*6.2*3.6 cm
- Camera Weight: 120 g
- Package Size: 30*20*15 cm
- Package Weight: 500 g
- Power: 10-25V DC Lipo or Liion
- Operating Temperature: -10 to 40°C
Additional Details:
- Manufacturer: ADTi
- Brand: ADTi
- Generic Name: Drone Mapping Camera || UAV Camera || Aerial Surveying Camera || Photogrammetry Camera || APS-C Camera || Drone Payload || Mapping Sensor || High Resolution Camera || GIS Camera || Remote Sensing Camera
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Drone Mapping || Aerial Surveying || 3D Modeling || Photogrammetry || Construction Site Monitoring || Agricultural Mapping || Infrastructure Inspection || GIS Data Collection || Environmental Monitoring || Autonomous Drone Missions.
Package Details:
Includes:
- 1 x ADTI 24MP 24L V1 Surveyor Lite Drone Mapping Camera
Frequently Asked Questions:
Q1. What is the main advantage of the ADTI 24MP 24L V1 Surveyor Lite for drone mapping?
Ans. Its core advantage is the high-resolution 24MP APS-C Sony CMOS sensor, delivering sharp and detailed images (6000x4000 pixels), combined with active cooling and lightweight design, ensuring precision and reliability for demanding aerial surveys.
Q2. Is this camera compatible with external PPK/RTK GNSS modules for enhanced accuracy?
Ans. Yes, the ADTI 24L V1 Surveyor Lite is designed to be compatible with PPK/RTK GNSS modules such as Emlid Reach, allowing for highly accurate geotagging and mapping solutions.
Q3. What kind of video output and control options does the ADTI 24L V1 provide?
Ans. It features an HDMI output for real-time HD video monitoring and an ADTi SDK controlling system that is compatible with popular flight controllers like Pixhawk (via Airpixel for PIX4) and ArduPilot (via MAVlink).
