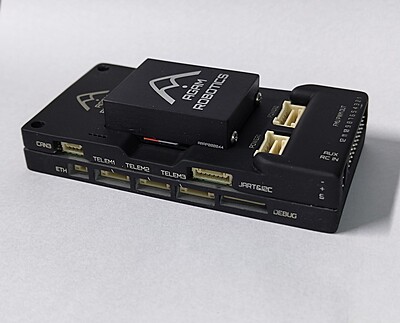

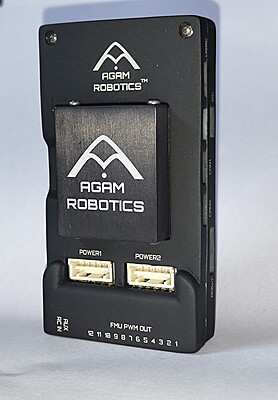

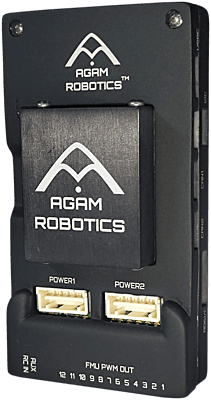

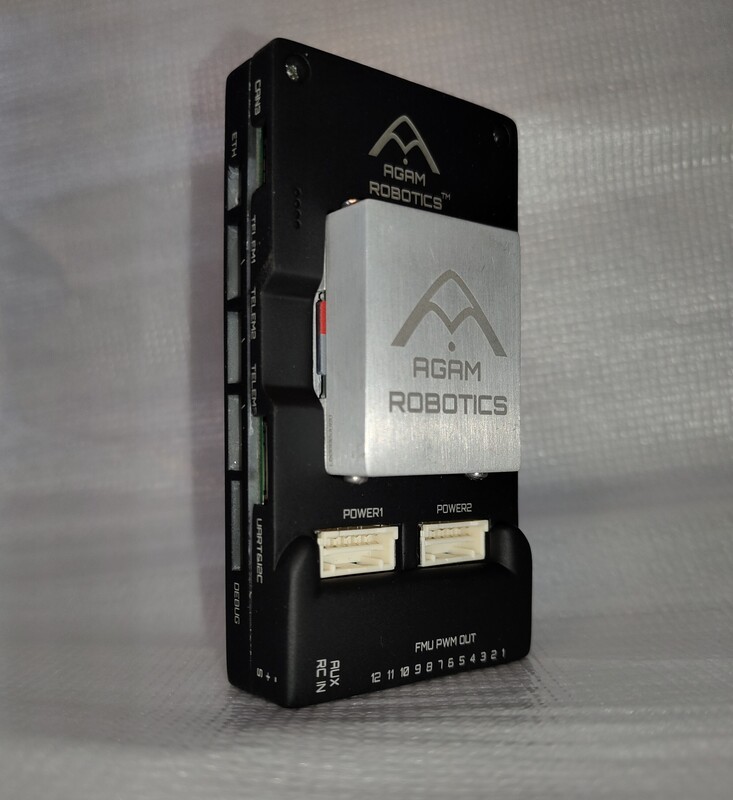

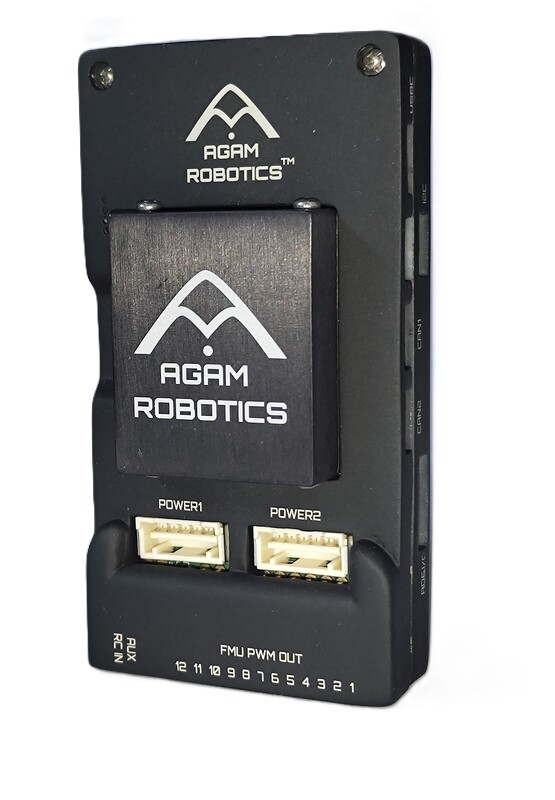

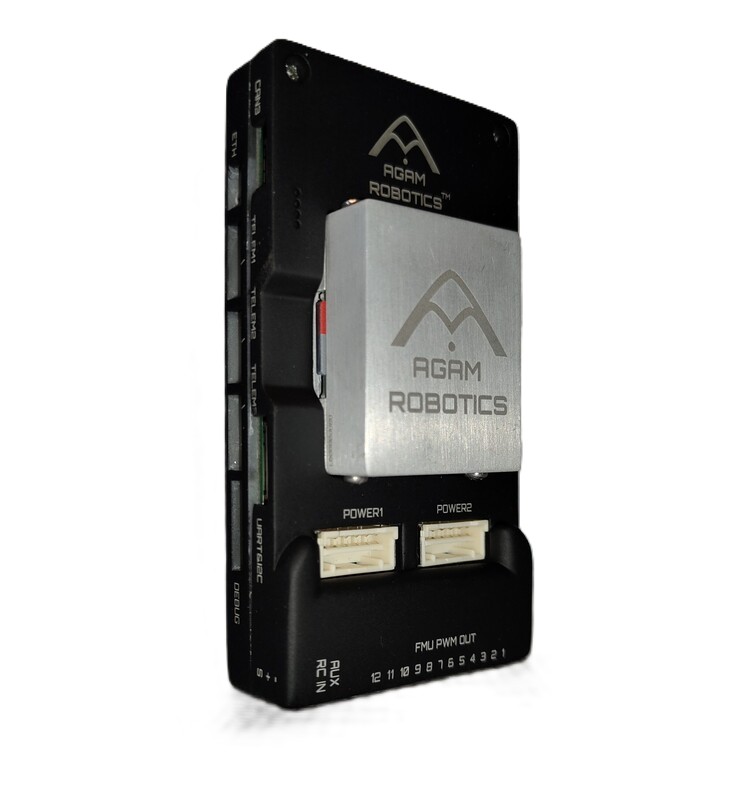

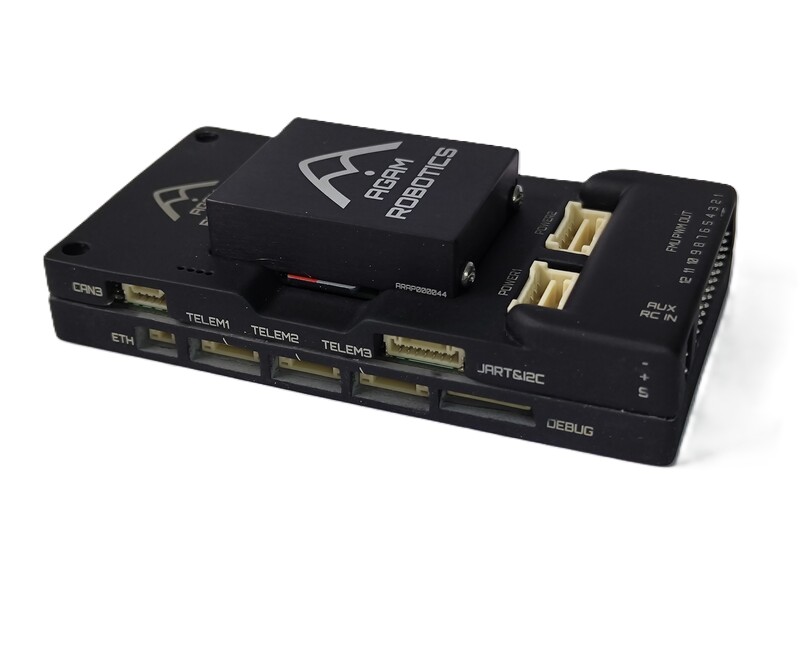

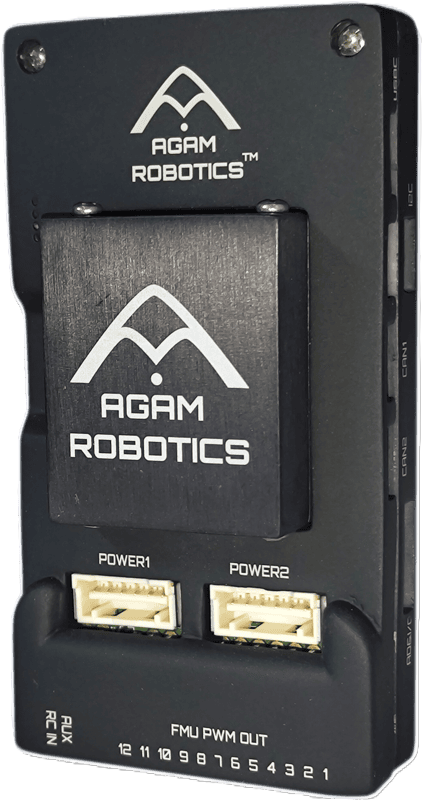

Made in India Agam Autopilot V6X-RT

Features :

• AI-powered flight control for advanced navigation.




• Multi-GNSS support (GPS, GLONASS, BeiDou) for accuracy.




• Integrated high-precision IMU ensures stable flight.




• Real-time telemetry (LoRa, Wi-Fi, 4G) for remote monitoring.




• Multiple interface options (UART, CAN, I2C, SPI, PWM).




• Redundant systems, emergency landing, return-to-home.




• Broad compatibility: fixed-wing, multirotor, VTOL, hybrid UAVs.




• Ethernet interface for high-speed companion computer integration.




• Secure element (NXP EdgeLock SE05x) for enhanced security.




• Soft-mounted, temperature-controlled sensors for accuracy.

Technical Specifications:

• Supported Firmware : PX4 Autopilot

• MCU : NXP i.MX RT1170 series, 6468 CoreMark with Cortex-M7 @ 1 GHz + Arm Cortex-M4 @ 400 MHz

  2 MB SRAM with 512 KB of TCM for Cortex-M7 and 256 KB of TCM for Cortex-M4 , Advanced security, including secure boot and crypto engines, and is part of the EdgeLock® Assurance program , 2 x Gb ENET with AVB and TSN

• 2D GPU , MIPI® CSI/DSI , Serial Communication - UART, I²C, SPI




• FRAM - 256KB : Sensors :

• IMU(Acc/Gyro): ICM-42686-P(Onboard)

• Baro: BMP388(Onboard & Offboard)

• IMU(Acc/Gyro): BMI088

• Mag: BMI150

• IMU(Acc/Gyro): ICM-42688-P




• Interface : 4x I2C ,3x CAN-FD, 6x SPI , 8x UART , 12-Channel PWM , USB , RC in - SBUS/PPM




• Mechanical dimension:

• Flight Controller Module: 39mmx 32mm x 16mm

• Standard Baseboard: 95mm x 50mm x 19mm




• Overall Weight: 82gm

• IMU Connector - Shock Mounted Sensor Board

• MICRO SD card slot

Additional Details:

• Manufacturer: Agam Robotics

• Brand: Agam Generic

• Name: Autopilot || Flight Controller || Drone Brain || UAV Control System || Real-Time FC || Made in India Autopilot || Industrial Autopilot || Agricultural Autopilot || Defense Drone FC || PX4 Compatible FC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: Agricultural Drones || Industrial Drones || Surveillance UAVs || Mapping & Surveying Drones || Delivery Drones || Search & Rescue UAVs || Defense Applications || Custom Drone Builds || Research & Development || Robotics Platforms




Package Details:

Includes:

• 1x Agam Autopilot V6X-RT (Main Flight Controller Unit)

• 1x Agam Carrier Board

• 1x Agam IMU board (with 2 IMUs, barometer, magnetometer, and EEPROM)

• 1x Agam Power Module

• 1x GPS module with multi-GNSS support

• 1x Telemetry module (LoRa/Wi-Fi/4G - specific version may vary)

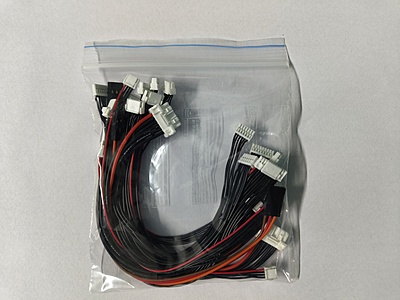

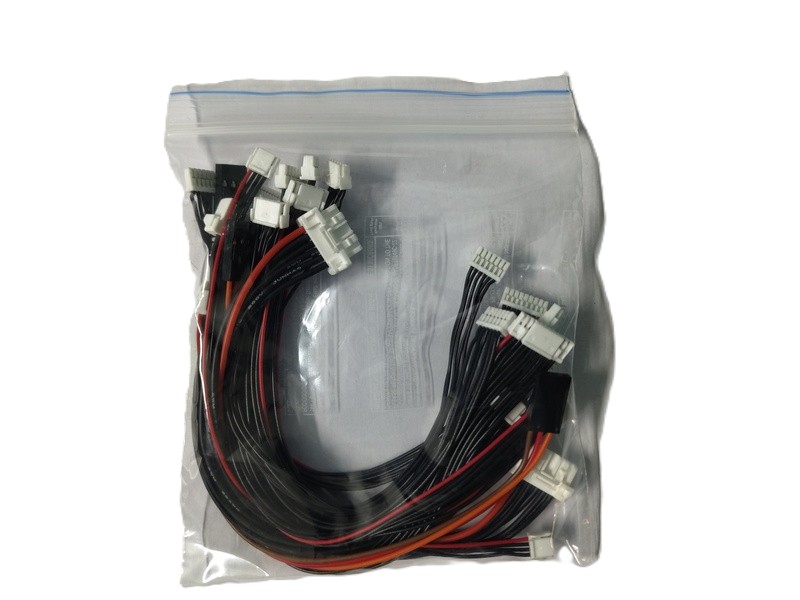

• 1x Set of cables and connectors for integration

• 1x Safety switch and buzzer

• 1x User manual and setup guide

Frequently Asked Questions:

Q1. What makes the Agam Autopilot V6X-RT suitable for real-time applications?

Ans. The Agam Autopilot V6X-RT is powered by a high-performance NXP i.MXRT1176 dual-core MCU, featuring a 1GHz Cortex-M7 core. This powerful processor, combined with its architecture and dedicated hardware, enables real-time decision-making and high-speed data processing essential for demanding autonomous and AI-driven drone operations.

Q2. Does this autopilot offer redundancy for critical sensors?

Ans. Yes, the Agam Autopilot V6X-RT features triple redundant IMUs (Inertial Measurement Units) and dual redundant barometers. This advanced redundancy ensures high reliability and safety by allowing the system to seamlessly switch to backup sensors in case of a primary sensor failure, maintaining stable flight control.

Q3. What kind of security features are integrated into the V6X-RT?

Ans. The Agam Autopilot V6X-RT includes an NXP EdgeLock SE05x secure element, providing certified security and robust protection against cyber threats. This hardware-backed security supports features like secure boot, cryptographic operations, and secure device-to-device authentication, crucial for sensitive commercial, industrial, and defense applications
