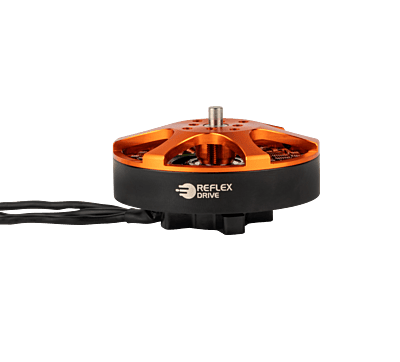

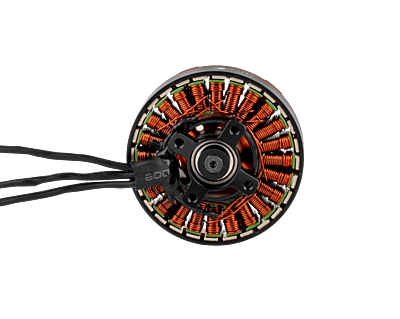

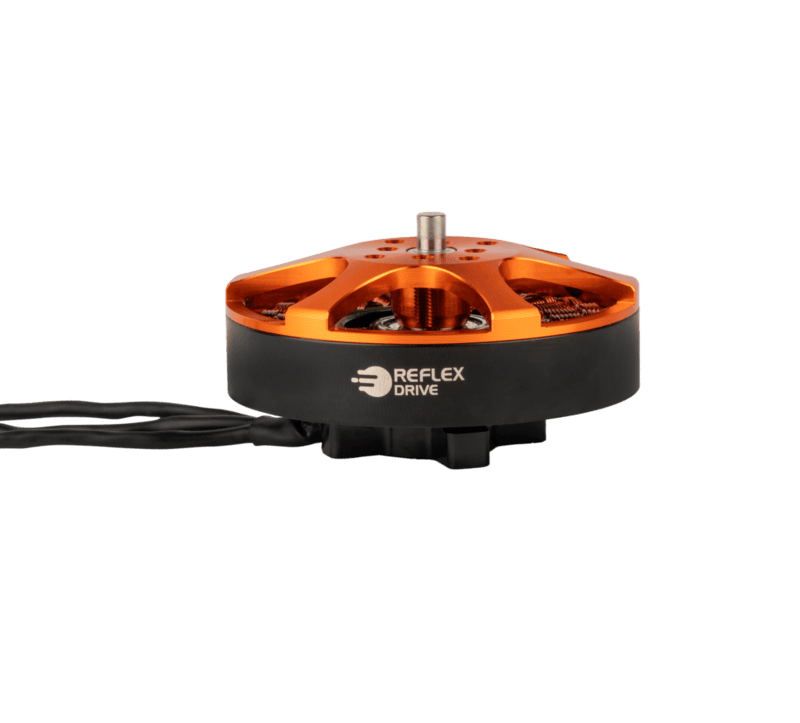

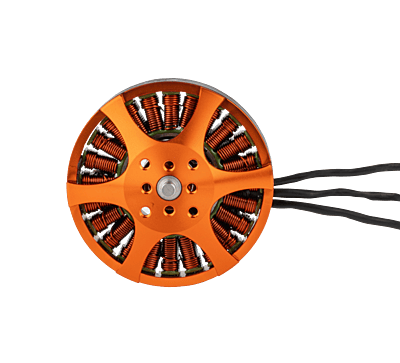

Made in India RD 5008 UAV BLDC Motor 6S 370KV
Non-returnable
₹9,099.00 ₹9,499.00
Out of stock
- Motor Type - Outrunner
- KV Rating - 370 KV
- Motor Efficiency - 90.99%
Product Details
Specification:
- Motor Type - Outrunner
- KV Rating - 370 KV
- Maximum Thrust - 4.2 KG
- Stator Poles / Magnet Poles - 24 / 28
- No load current - 1.5A
- Motor Efficiency - 90.99%
- Weight (Including Cable) - 1359 grams
- Voltage Range - 6S
- Maximum Current (15Sec) - 51A
- Maximum Power (15Sec) - 1224W
- Motor Dimensions - Ø55.6mm x 27mm
- Motor Torque Constant (9m.cm/A) - 294.15
- Cable Type / Length - 15AWG / 180mm
- Copper wire Temperature Rating - 90 ℃
- Winding material - 100% Copper
- IP Rating - IP34
- Maximum Operating Temperature - 150 ℃
- Recommended Propeller - 17*60 (Folding)
Perfomance Data:
- Motor - RD 5008 KV 370
- ESC - RD-T-TZ-080-06-E-BTC
- Operating Temperature - -20 °C ~ 85℃
- Recommended Propeller - 17*60 (Folding)
- Recommended ESC - RD-T-TZ-080-06-E-BTC
- Quad-copter - Maximum take-off weight for the drone: 7.62 KG
- Hex-copter - Maximum take-off weight for the drone: 17.78 KG
- Oct-copter - Maximum take-off weight for the drone: 15.42 KG
