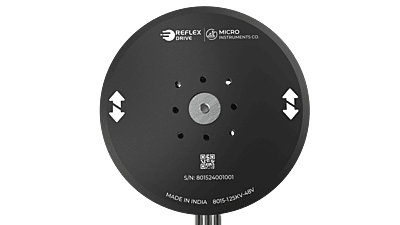

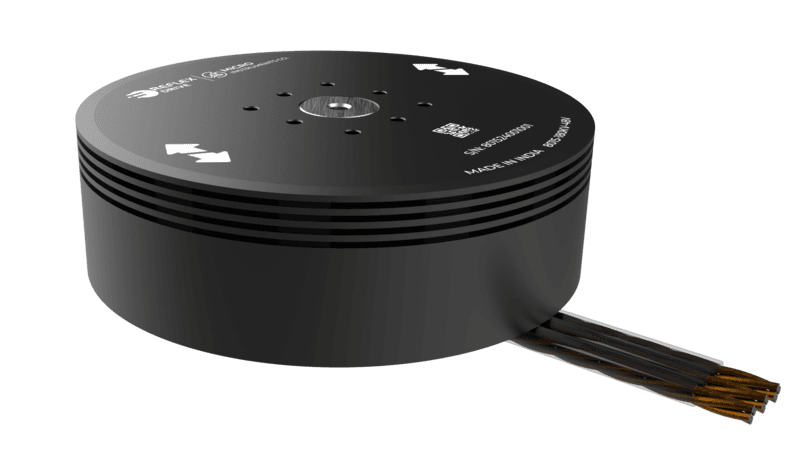

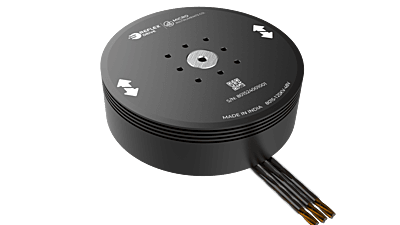

Made in India RD MI X8 8015 UAV BLDC Motor 12S 125KV
Non-returnable
₹14,099.00 ₹15,699.00
Out of stock
- Motor Type - Outrunner
- KV Rating - 125 KV
- Motor Efficiency - 90.99%
Product Details
Specification:
- Motor Type - Outrunner
- KV Rating - 125 KV
- Maximum Thrust - 14 KG

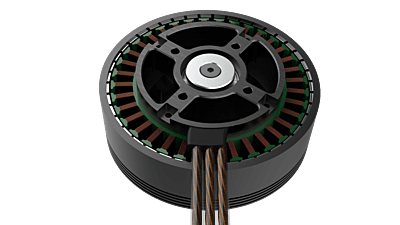

- Stator Poles / Magnet Poles - 36 / 42
- No load current - 3.2A
- Motor Efficiency - 90.99%
- Weight (Including Cable) - 509 grams
- Voltage Range - 48 V (12S LIPO - 4.2V/ pc)
- Peak Current (30 Sec) - 90 A
- Peak Power (30 Sec) - 3996 W
- Motor Dimensions - Ø90mm x 33.25mm
- Cable length - 100 mm
- Shaft Diameter (Internal) - Ø6mm
- Magnet Temperature Rating - 150 ℃
- Cable Type / Length - 14AWG / 100mm
- Copper wire Temperature Rating - 150 ℃
- Winding material - 100% Copper
- IP Rating - IP34
- Maximum Operating Temperature - 60 ℃
- Recommended Propeller - 30*95 (Folding)
Perfomance Data:
- Motor - RD-M-X8.1
- ESC - RD Q Series ESC
- Operating Temperature - -20 °C ~ 60 ℃
- Multicopter design recommendations with RD-M-X8.1
- Recommended Propeller - 30*95 (Folding)
- Recommended ESC - RD Q Series ESC
- Quad-copter - Maximum take-off weight for the drone: 30 KG
- Hex-copter - Maximum take-off weight for the drone: 46 KG
- Oct-copter - Maximum take-off weight for the drone: 60 KG
