SUNNYSKY X 2814 V3 Brushless Motor
Non-returnable
₹6,399.00

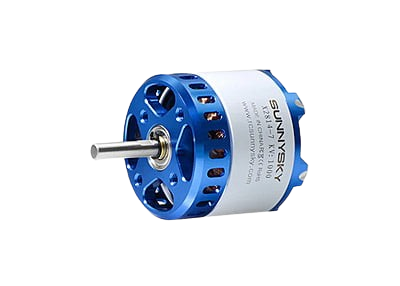

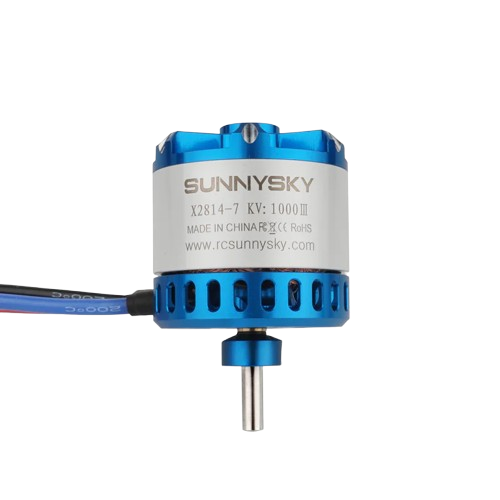

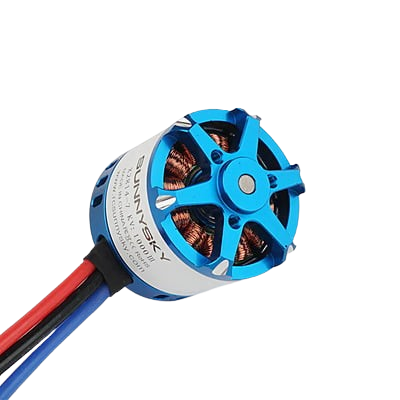

The SUNNYSKY X2814 V3 900KV is a versatile, high-efficiency brushless motor designed for RC airplanes, multirotors, and FPV drones. Delivering reliable power and smooth operation, it's ideal for setups requiring a balance of thrust and endurance. Its robust V3 design ensures durability and consistent performance for a wide range of aerial applications.
KV
Product Details
Features:
- High 900KV for balanced performance.
- Designed for RC planes and multirotors.
- Excellent efficiency for longer flights.
- Precision balanced for smooth, quiet operation.
- Durable construction ensures long lifespan.
- Advanced heat dissipation system.
- High-quality N52SH arc magnets.
- Robust Japanese NMB bearings.
- High-temperature resistant copper windings.
- Consistent power delivery across RPMs.
Technical Specifications:
- Model: X2814 V3
- KV: 900KV
- Stator Diameter: 28mm
- Stator Height: 14mm
- Configuration: 12N14P
- Shaft Diameter: 5mm (High-Strength Steel)
- No. of Cells (Lipo): 3-4S
- Idle Current (10V): 1.2A
- Max Continuous Current: Approximately 50A
- Max Continuous Power: Approximately 680W
- Internal Resistance: 33.6mΩ
- Motor Dimensions: Φ35 x 36mm (Diameter x Length)
- Weight (excl. cable): Approximately 108g
Additional Details:
- Manufacturer: Sunnysky
- Brand: Sunnysky
- Generic Name: RC Motor || Brushless Motor || RC Plane Motor || Drone Motor || Multirotor Motor || Electric Aircraft Motor || Outrunner Motor || Hobby Motor || UAV Propulsion || Model Aircraft Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: RC Airplanes || Medium-sized FPV Drones || Camera Drones || Gliders || Sport RC Planes || Trainer Planes || Fixed-Wing UAVs (medium) || Custom Drone Builds || Quadcopters || Model Aircraft Enthusiasts
Package Details:

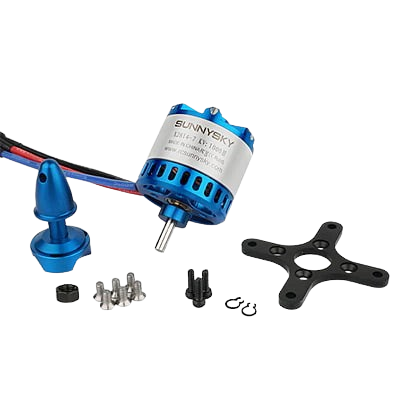

Includes:
- 1 x SUNNYSKY X2814 V3 900KV Brushless Motor
- 1 x Propeller Adapter/Nut
- 1 x Set of Mounting Screws
Frequently Asked Questions:
Q1. What battery voltage is best for the SUNNYSKY X2814 V3 900KV motor?
Ans. This motor is designed to perform optimally with 3-4S LiPo batteries, offering a good balance of power and efficiency.
Q2. Is this motor suitable for both RC planes and drones?
Ans. Yes, its 900KV rating provides versatility, making it a popular choice for both RC airplanes and various types of multirotor drones.
Q3. What propeller sizes are recommended for this 900KV motor?
Ans. For RC planes, propellers around 9-11 inches are common, while for multirotors, 9-10 inch props are typically used, depending on the setup.
