JIYI K3 A Pro Flight Controller Combo

Features:

• Advanced flight control system for stable and reliable operation.

• Integrated high-precision GNSS for accurate positioning and navigation.

• Multiple intelligent flight modes for diverse professional applications.

• Robust vibration damping ensures smooth and steady flight performance.

• Supports various multirotor configurations for versatile use.

• Auto-takeoff, auto-landing, and failsafe protection for safety.

• Real-time flight data monitoring and logging capabilities.

• Easy to install and configure for quick deployment.

• Designed for demanding agricultural spraying and industrial tasks.

• Provides precise control and increased operational efficiency.

Technical Specifications:

Product Parameters:

• Supported Frame Types: Quadrotor (+ type, X type) , Hexacopter (+ type, X type, IY type, YI type coaxial sculls) , Octocopter (+ type, X type, V type)

• Supported ESC Types: ESC below 490HZ PWM

• Maximum Output Channel: 8 Channels

• Recommended Remote Type: with SBUS receiver

• Supported Receiver Types: PPM, S-BUS receiver

• Supported Peripherals: Radar, RTK, Data link, Flow Sensor Module

• Working Voltage: 2-12S

• Power Dissipation: Less than 2W

• Working Temperature: 0-60°

• Storage Temperature: -40-60°

• Seismic Rating: <1G

Hardware Specification:

• Weight: Flight controller: 56g , GPS: 45g , LED: 13g , PMU: 39g

• Dimension: Flight controller: 53.5 × 40.0 × 21.0 mm , GPS: Φ63.0 × 15.0 mm , LED: 24.0 × 24.0 × 8.0 mm , PMU: 53.5 × 34.5 × 14.5 mm

Flight Performance and Features:

• Hover Accuracy: Horizontal: ±2m , Vertical: ±0.8M

• Maximum Tilt Angle: 30°

• Maximum Yaw Speed: 150°/s

• Maximum Vertical Speed: 6 m/s

• Wind Resistance: Continuous wind: level 3 , Gust: Level 4

• Flight Modes and Features: Attitude-stabilization mode , Attitude-fixed altitude mode , GPS-speed mode , GPS-angle mode , AB operation mode , Automatic return mode , Out-of-control return , Low voltage alarm protection, Breakpoint continuous spray function , One-button traverse function , Water pump control function , Terrain following function , Emergency stop function , GPS speed switching function , Support digital transmission ground station flight , Support digital transmission remote parameter adjustment .

Additional Details:

• Manufacturer: JIYI

• Brand: JIYI

• Generic Name: Flight Controller , Drone Controller , Autopilot System , UAV Flight Computer , Drone Brain , Multi-Rotor Stabilizer , Navigation System , Drone Autopilot , FC Combo , Industrial Drone Controller

• Sold By: UAV Marketplace an authorized seller of drone gear and accessories

• Ideal For: Agricultural Drones , Industrial Drones , Crop Spraying Drones , Mapping Drones , Surveying Drones,

  Inspection Drones , Heavy-Lift UAVs , Professional Drone Operations , Custom Drone Builds , Research & Development Drones.

Package Details:

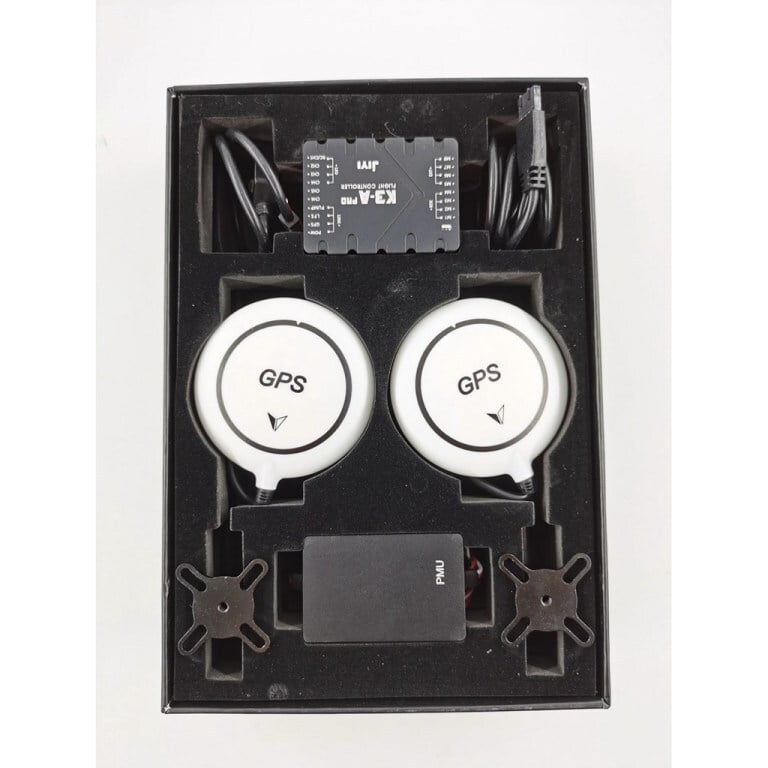

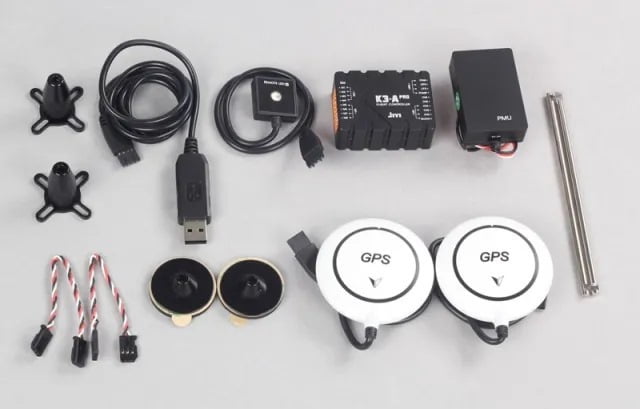

Includes:

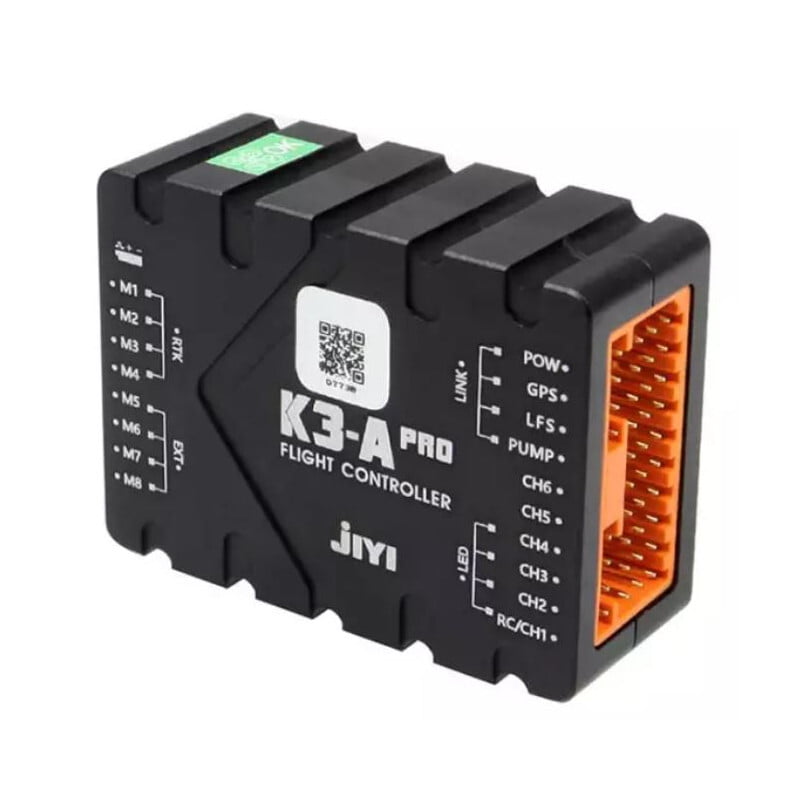

• 1x JIYI K3-A Pro Main Controller

• 1x GPS Module (with compass)

• 1x PMU (Power Management Unit)

• 1x LED Module / Status Indicator

• Required Cables (GPS cable, ESC signal cables, power cables)

• Mounting Accessories (double-sided tape, screws)

• User Manual / Quick Start Guide (often digital)

Frequently Asked Questions:

Q1. What types of drones is the JIYI K3-A Pro Flight Controller best suited for?

Ans. The JIYI K3-A Pro Flight Controller is specifically designed for professional agricultural and industrial multirotor drones, including those used for crop spraying, mapping, surveying, and various heavy-lift or inspection tasks, due to its robust stability and intelligent features.

Q2. Does this flight controller support advanced flight modes like intelligent route planning?

Ans. Yes, the JIYI K3-A Pro supports a range of intelligent flight modes, including AB point flight and smart route planning, which are crucial for efficient and autonomous operations in agricultural and industrial applications, maximizing coverage and precision.

Q3. What does the "Combo" typically include with the JIYI K3-A Pro Flight Controller?

Ans. The "Combo" usually includes the main flight controller unit, a high-precision GPS module with integrated compass, a Power Management Unit (PMU), an LED status indicator, and all necessary connection cables for easy installation into your drone system.
