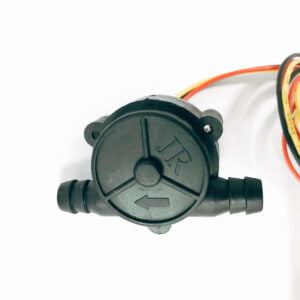

JIYI Flow Meter Sensor
- Flow accuracy: (0.2-6L/min) ±10%
- Working water pressure: 0.1-0.35MPa
- Interface outer diameter: 8-10mm (inserted inner diameter 8mm hose)
- Operating voltage: DC5-24V (rated 5V)
Flow meter
Flow meter for agricultural drone This flow meter just for JIYI flight control, K3A,K3A-PRO,K++
The Jiyi Flowmeter is a state-of-the-art instrument used for measuring the flow rate of various fluids in a wide range of industrial applications. It is designed to provide accurate and reliable measurements, allowing for efficient monitoring and control of fluid processes.
The flowmeter features advanced technology and high-quality components, ensuring precision and durability in demanding operating conditions. It utilizes a non-intrusive measurement technique, eliminating the need for direct contact with the fluid and minimizing potential disruptions to the flow
Features:
- Non-intrusive measurement
- Wide flow range
- Compatibility with various fluids
- Multiple pipe sizes and materials
- High accuracy and precision
- User-friendly interface
Package Includes:
1 x Jiyi Flowmeter
| Flow accuracy (L/min) | (0.2-6L/min) ±10% |
|---|---|
| Working water pressure(MPa) | 0.1-0.35 |
| Operating Voltage (VDC) | 5-24V (rated 5V) |
| Signal Output | NPN pulse signal |
| Response time | 0.2S (seconds) |
| Lead length | 25CM (3P terminal XH2.54) |
| Shipping Weight | 0.034 kg |
| Shipping Dimensions | 12 × 9 × 4 cm |
