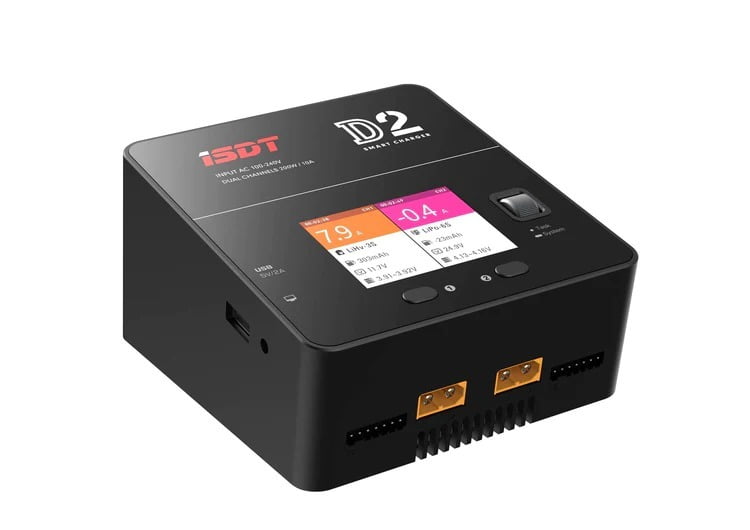

ISDT D2 Mark II Dual Channel 200W Smart Battery Charger

Features:

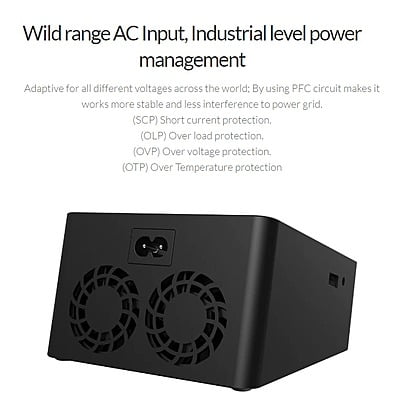

• Wild rang AC Input,Industrial level power management. DC power (CH1):The charger CH1 is equivalent to a DC power supply when selecting this function

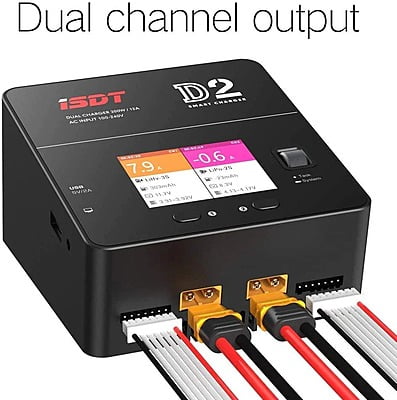

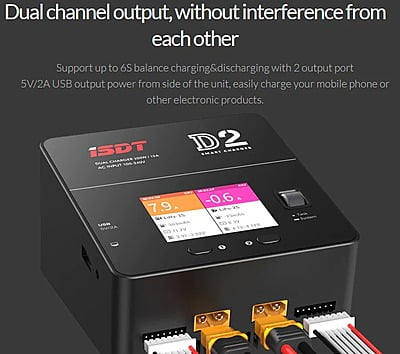

• 200W of Dual Channel output,without interence from each other. Dual task :Select this setting,the charger will charge/discharge/store to the two channel batteries with the sameparameters at the same time. Paralled task:Select this setting, it could output Max Power to one battery.
• Unexceptionable performance on the power space retio.
• Carefully optimized internal structure,dual fan cooling system.
• scOs specially designed for smart charging OS.
• Support Multiple Languages,totally localized.

Specifications:

• Input Voltage: AC 100-240V
• Charge Current: 0.1-12.0A*2
• Discharge Current: 0.1-1.5A*2
• Max Charge Capacity: 200W
• Max Discharge Capacity: 15W*2
• Balancing Current: 1.5A/cell*2
• Balance Cells: 2-6S*2
• Supported Batt. Type: LiFe/Lilon/LiPo/LiHv (1-6S) NiMH/Cd(1-16S) Pb(1-12S)
• Display: 2.4〃320×240 IPS LCD
• Operating Temperature: 0-40°C
• Storage Temperature: -20-60°C
• Dimensions: 120x108x70 mm
• Weight: 510g

Product Manual of D2 MK2
