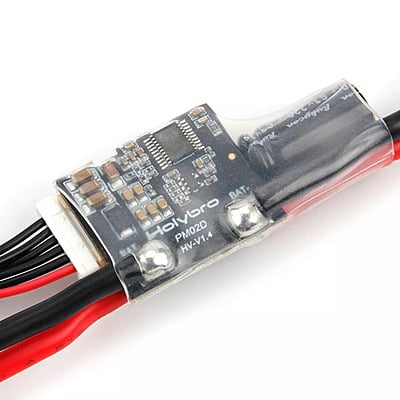

HOLYBRO PM02D Power Module
- UBEC input voltage : 7~51v (2~12s LiPo)
- Rated current: 60A
- Max current: 120A(<60S)
- Max current sensing: 120A
- Supports: 12S battery

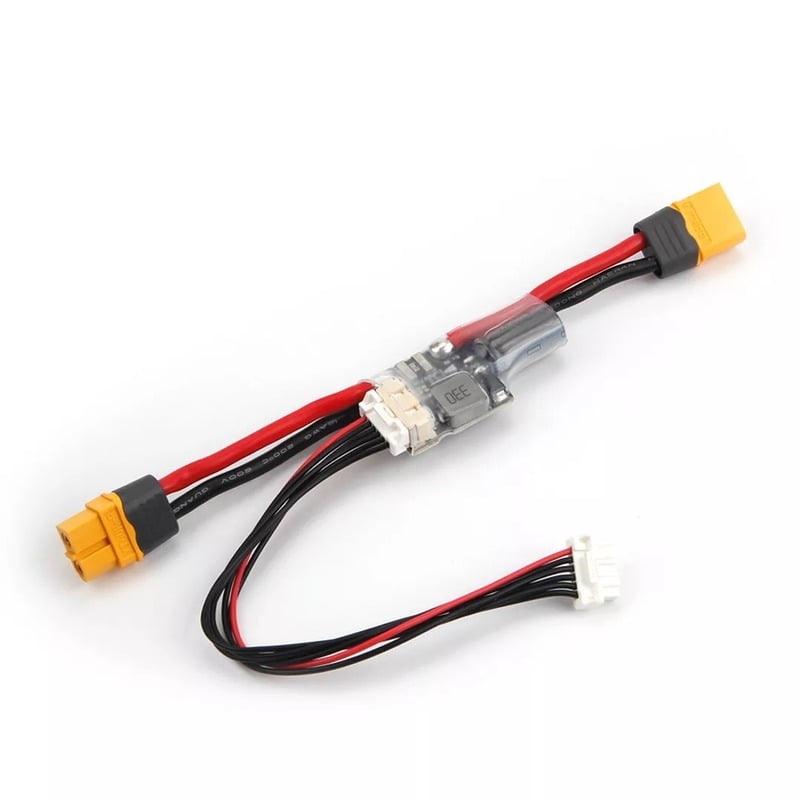

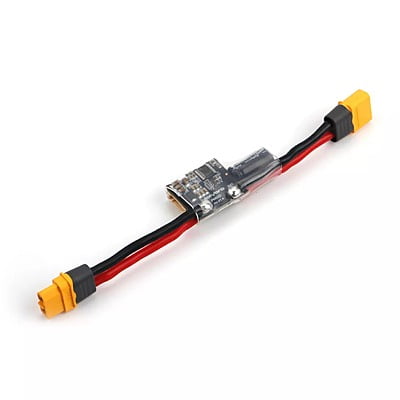

PM02 is a simple way of providing your APM and Pix32 with clean power from a LiPo battery as well as current consumption and battery voltage measurements, all through a 6-pos cable. The on-board switching regulator outputs 5.2V and a maximum of 3A from up to a 12S LiPo battery. The Power Module comes completely assembled with XT60 connectors, and wrapped in shrink tubing for protection.
The Power Module is designed to power APM,Pix32, a RC receiver and APM accessories (GPS, radio). It is not designed to power servos. Use your aircraft’s own ESC/BEC for that.
The GH terminal is also compatible with both Pix32,Pixhawk4,Pixhawk4 mini and Durandal.
Note: This PM02 Power Module uses analog data output and is not compatible to the Pixhawk 5X (Requires a digital PM like PM02D).
Features:
- Light weight
- Best for your DIY projects
- Easy to Use
Packages Includes:
1 x Holybro Power Module PM02
| UBEC input voltage | 7~51v (2~12s LiPo) |
|---|---|
| Rated Current(A) | 60 |
| Max Current (A) | 120A(<60S) |
| Max current sensing | 120A |
| Battery Type | 12S battery |
| Shipping Weight | 0.033 kg |
| Shipping Dimensions | 11 × 9 × 2 cm |
