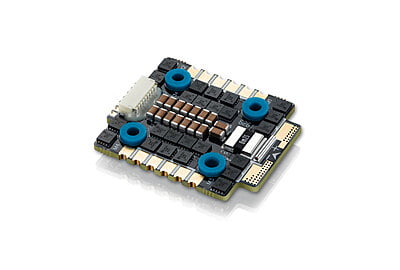

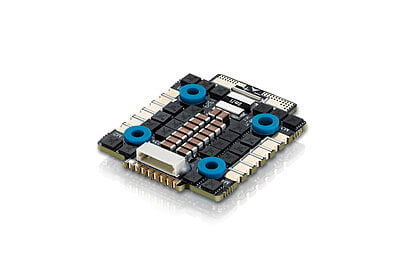

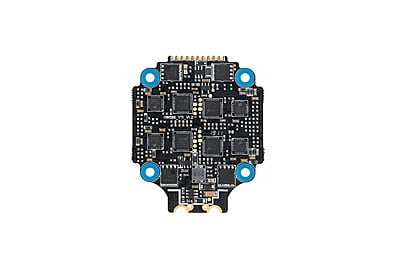

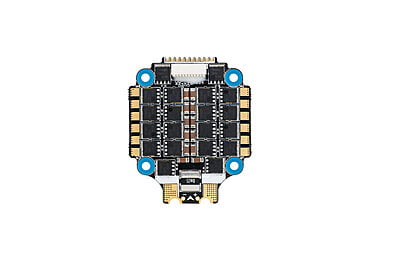

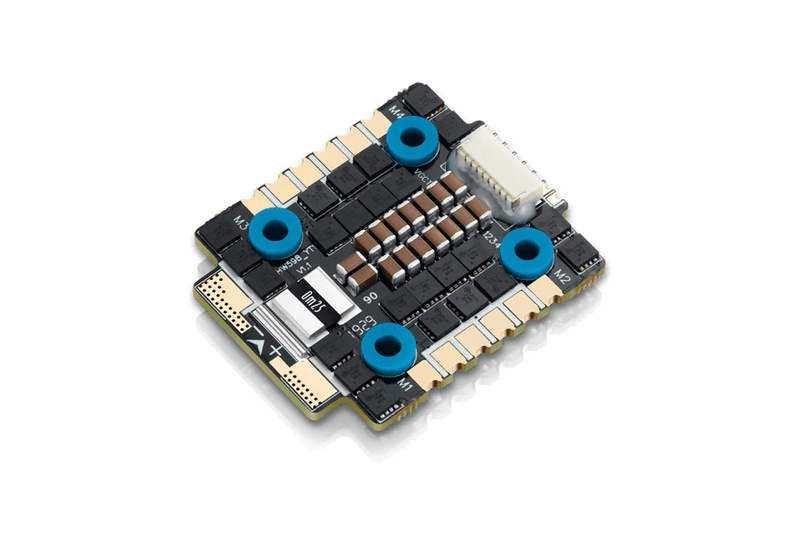

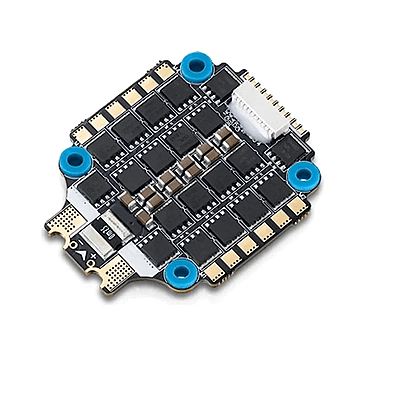

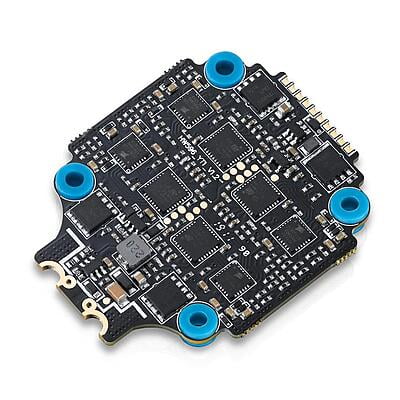

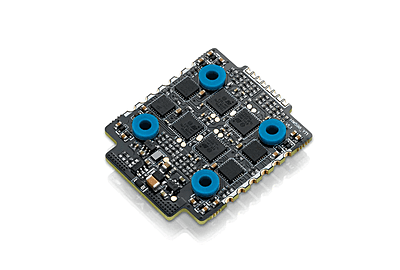

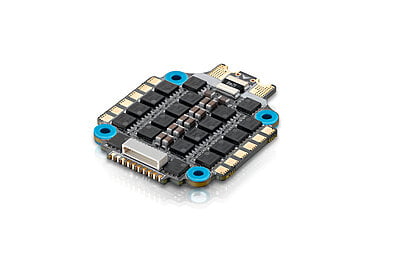

HOBBYWING XRotor FPV G2 4in1 ESC

Features:

• Integrates four high-performance ESCs on one board.




• Supports 3-6S LiPo battery input.




• Pre-flashed with advanced BLHeli_32 firmware.




• Supports DShot150/300/600/1200 digital protocols.




• High-quality MOSFETs for superior current handling.




• Excellent heat dissipation with integrated heatsink.




• Compact size and lightweight for FPV frames.




• Built-in voltage monitoring and current sensing.




• Multiple protection features (over-current, over-temp).




• Easy installation and clean wiring for quads.

Technical Specifications :

• Processor: High-performance 32-bit ARM MCU (e.g., STM32F051)

• Signal Support: DShot150/300/600/1200, ProShot1000, MultiShot, OneShot125, OneShot42, PWM

• Telemetry Output: ESC Telemetry supported via BLHeli_32

• Capacitor: High-quality electrolytic capacitors for filtering

• Protection Features: Over-current protection, Over-temperature protection, Throttle signal loss protection, Startup protection.

• Firmware Upgrade: Supported via BLHeliSuite32

ESC Model: 45A :

• Continuous Current: 45A per channel

• Peak Current (10s): 60A per channel

• Input Voltage: 3–6S LiPo

• BEC Output: No BEC (OPTO)

• Firmware: BLHeli_32

• Dimensions: 43 × 40 × 8 mm (L × W × H) (approx.)

• Mounting Holes: 30.5 × 30.5 mm

• Weight: 15–18 g (approx.)

ESC Model: 65A :

• Continuous Current: 65A per channel

• Peak Current (10s): 80A per channel

• Input Voltage: 3–6S LiPo

• BEC Output: No BEC (OPTO)

• Firmware: BLHeli_32

• Dimensions: 43 × 40 × 8 mm (or slightly larger)

• Mounting Holes: 30.5 × 30.5 mm

• Weight: 20–25 g (approx.)

Additional Details:

• Manufacturer: HOBBYWING

• Brand: HOBBYWING

• Generic Name: 4-in-1 ESC || Four in One ESC || FPV ESC || Drone ESC || Multirotor ESC || Brushless ESC || Electronic Speed Controller || Flight Stack ESC || Race Drone ESC || BLHeli_32 ESC

• Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)

• Ideal For: FPV Racing Drones || Freestyle Drones || Quadcopters || High-Performance Drone Builds || Mini Drones || CineWhoops || Robotics Projects || Competitive FPV Pilots || DIY Drone Builds || Drone Upgrades

Package Details:

Includes:

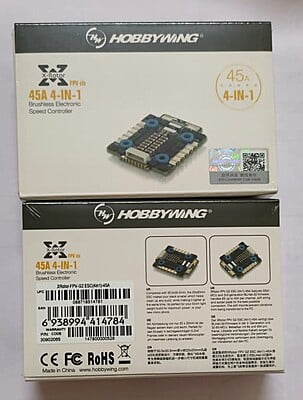

• 1x HOBBYWING XRotor FPV G2 4-in-1 ESC (45A or 65A model)

• 1x XT60/XT90 power cable (with capacitor if applicable)

• 1x Signal cable for flight controller connection

• 1x User Manual / Wiring Diagram

Frequently Asked Questions:

Q1. What is the main advantage of a "4-in-1" ESC for FPV drones?

Ans. A "4-in-1" ESC integrates four individual Electronic Speed Controllers onto a single circuit board. This design significantly simplifies wiring, reduces clutter on your drone, saves weight, and allows for a more compact and cleaner build, which is highly beneficial for FPV racing and freestyle drones.

Q2. What does BLHeli_32 firmware offer on the XRotor FPV G2 ESC?

Ans. BLHeli_32 is an advanced 32-bit ESC firmware that provides superior performance, precision, and efficiency. It supports ultra-fast digital protocols like DShot1200, offers customizable motor timing, full telemetry feedback, and various advanced features that enhance throttle linearity, responsiveness, and overall flight characteristics for FPV drones.

Q3. Can I use the HOBBYWING XRotor FPV G2 4-in-1 ESC with a 6S LiPo battery?

Ans. Yes, both the 45A and 65A versions of the HOBBYWING XRotor FPV G2 4-in-1 ESC are designed to be fully compatible with 3-6S LiPo battery inputs. This allows you to power your FPV drone with higher voltage batteries, which can lead to increased power, efficiency, and flight time, especially beneficial for demanding racing and freestyle maneuvers.
