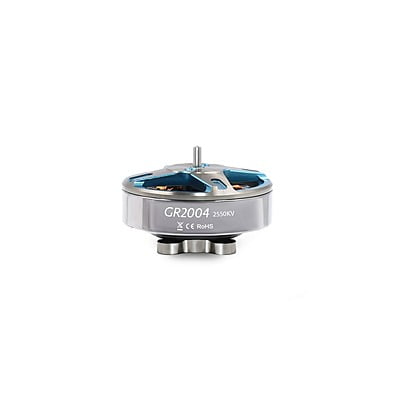

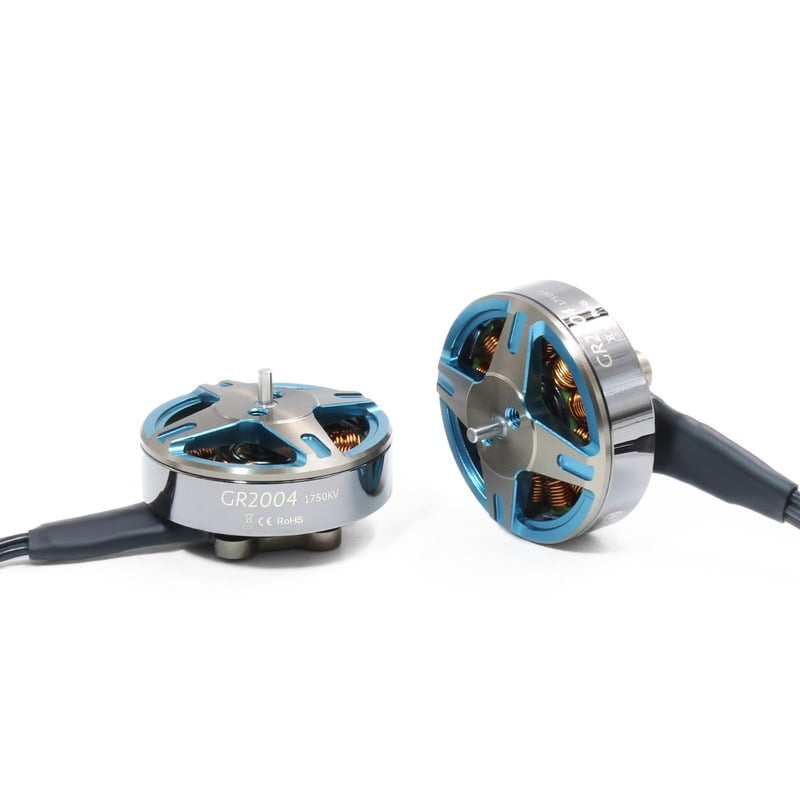

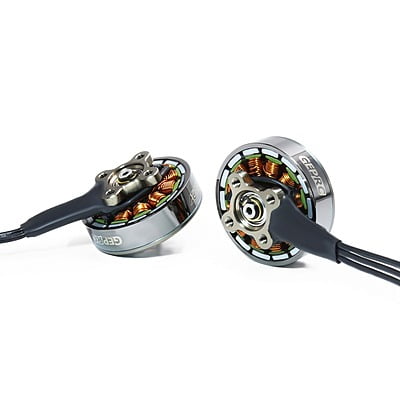

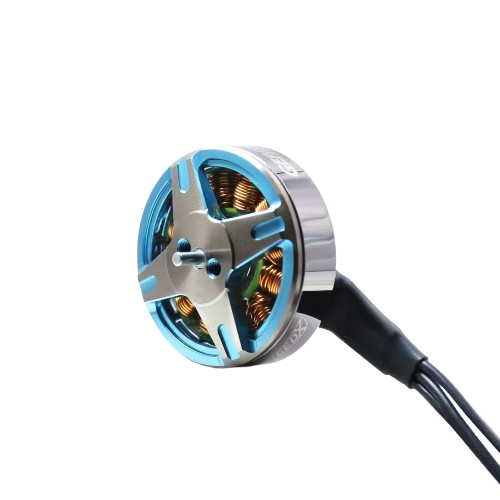

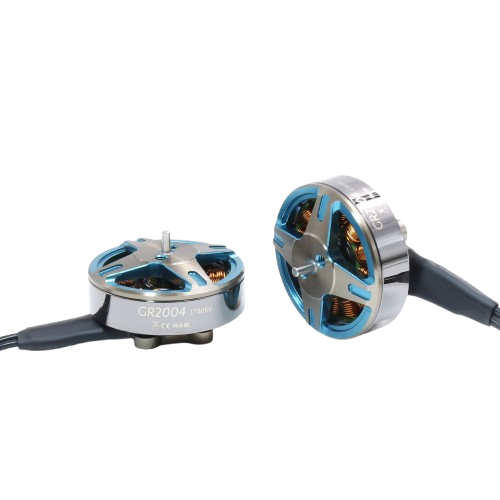

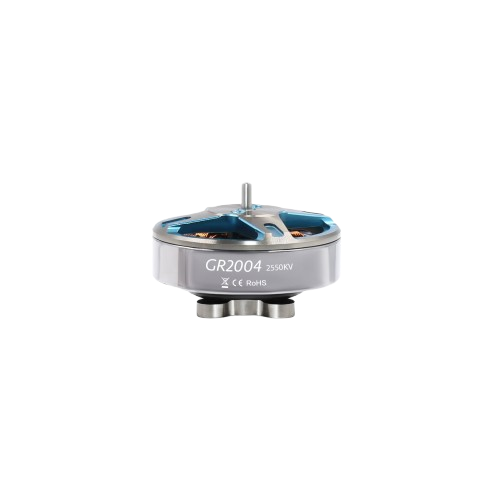

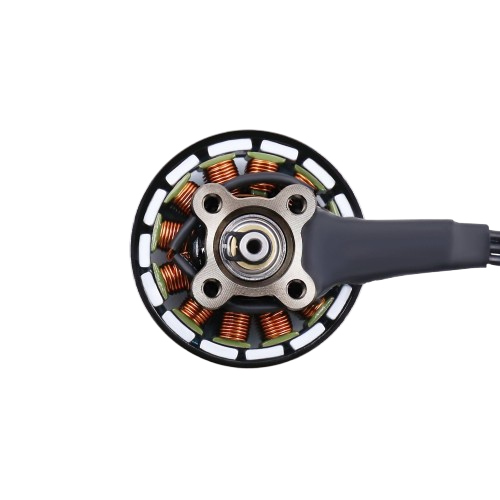

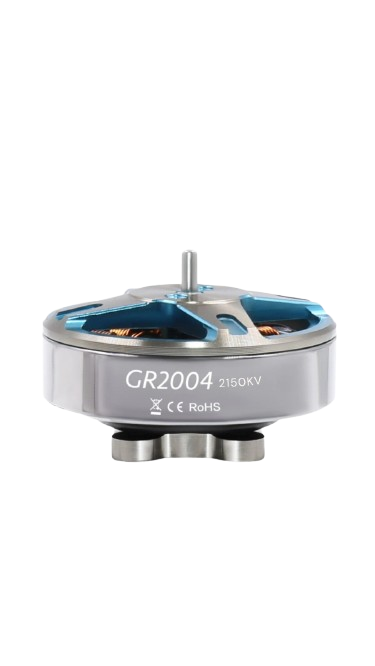

GEPRC GR2004 Brushless Motor
₹1,589.00
The GEPRC GR2004 Brushless Motor offers an ideal balance of power and efficiency for lightweight FPV builds. Perfect for micro and toothpick drones, it delivers smooth, responsive performance for both agile freestyle and cinematic flights. Its durable yet compact design ensures reliability and extended flight times for your compact FPV adventures.
KV
Choose Quantity
Product Details
Features:
- Compact and lightweight design for smaller drones.
- Optimized balance of power and efficiency.
- Smooth and responsive throttle control.
- Durable construction for reliable operation.
- Ideal for micro, toothpick, and ultralight builds.
- Designed for excellent heat dissipation.
- Precision-engineered for consistent performance.
- Easy to install with standard mounting patterns.
- Offers good thrust-to-weight ratio.
- Suitable for both freestyle and cruising.
Technical Details:
- Item: GR2004
- KV: 1750KV /2150KV
- Configuration: 12N14P
- Stator Diameter: 20mm
- Stator Height: 4mm
- Shaft Diameter: Φ1.5mm(1750KV/2550KV) / Φ5mm(2150KV/3150KV)
- Size: Φ15.3mm*13.8mm
- Rotor: N52H
- Weight: 16.8 grams
- Target: Toothpick & Long Range FPV
- Recommend the battery: 1750KV(2-6S)，2550KV(2-4S)
Additional Details:
- Manufacturer: GEPRC
- Brand: GEPRC
- Generic Name: FPV Motor || Micro Motor || Drone Motor || Brushless Motor || Quadcopter Motor || Tiny Whoop Motor || RC Motor || Electric Motor || 2004 Motor || Efficiency Motor
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
- Ideal For: Micro FPV Drones || Toothpick Drones || Lightweight FPV Builds || Cinematic FPV Drones || 3.5-inch FPV Drones || 4-inch FPV Drones || DIY Drone Builds || Small Quadcopters || Efficiency-focused FPV || Indoor/Outdoor Cruising
Package Details:
Includes: 1 x GR2004 Motor, 4 x M2x4 Button head screws, 4 x M2x5 Button head screws, 4 x M2x6 Button head screws
Frequently Asked Questions:
Q1. What propeller size is recommended for the GEPRC GR2004 motor?
Ans. The GEPRC GR2004 motor is typically best suited for propellers in the 3.5-inch to 4-inch range, providing optimal thrust and efficiency for smaller drone frames.
Q2. Is this motor good for both freestyle and cinematic FPV?
Ans. Yes, the GEPRC GR2004 motor's balance of power and efficiency makes it well-suited for both agile freestyle maneuvers and smooth, stable cinematic flights on compact drones.
Q3. What battery voltage should I use with the GEPRC GR2004 motor?
Ans. The ideal battery voltage depends on the specific KV of the motor, but generally, it performs well with 3S to 6S LiPo batteries, with higher KVs often paired with lower S counts.
