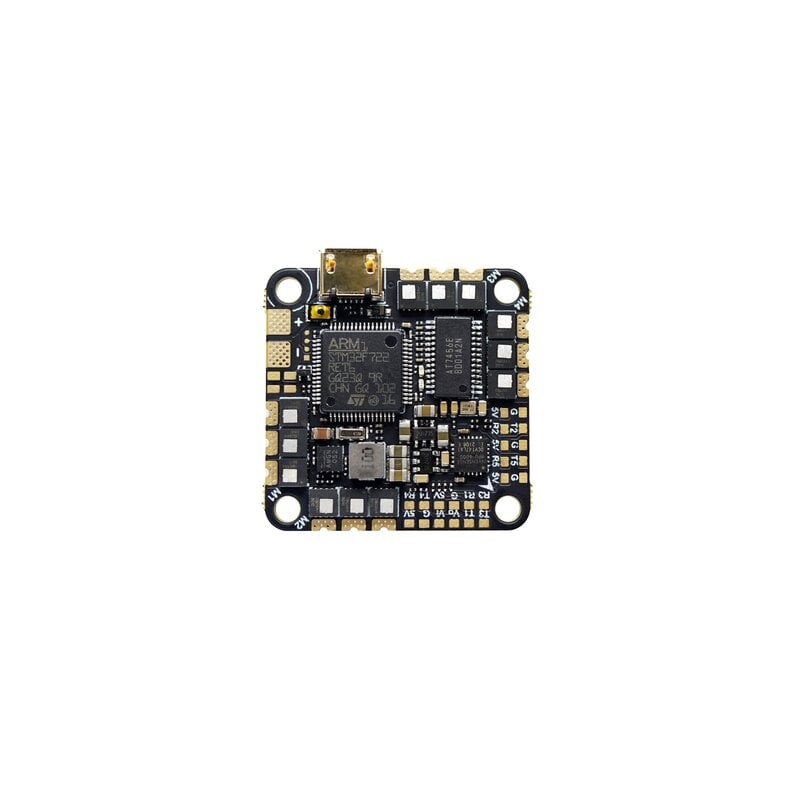

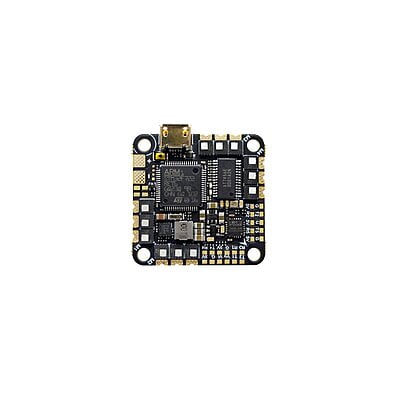

GEPRC GEP F722 45A AIO V2
STM32F722 MCU for powerful performance and faster computing.
5 full UART ports for connecting multiple external devices.
6-pin DJI Air Unit connector for plug-and-play convenience.
45A BLHeli_S ESC: Handles 45A continuous (55A burst) and supports 2-6S LiPo batteries fc.
OSD adjustments, buzzer, LED, and more functions.
Ultra-lightweight at 8.8g with a 255mm x 25.5mm mounting hole pattern, compatible with most frames.
lighter weight, compact design, and superior functionality.
GEP-F722-45A AIO adopts MCU STM32F722, which has powerful performance and higher computing speed.
It has 5 full UART ports and can connect more external devices.
Designed with a 6-pin connector for DJI AIR UNIT MODULE, plug and play.
The BLHeli_S 45A ESC can handle 45A continuous current (55A burst) and supports 2-6S LiPo battery, providing stronger flight performance.
Supports OSD parameter adjustment, buzzer, LED, and other functions.
Ultra-lightweight at 8.8g with 25.5mm x 25.5mm mounting hole, suitable for most frames on the market.
We pursue lighter weight, smaller volume, more functions, and better performance in flight controllers.
GEP-F722-45A AIO adopts MCU STM32F722, which has powerful performance and higher computing speed.
It has 5 full UART ports and can connect more external devices.
Designed with a 6-pin connector for DJI AIR UNIT MODULE, plug and play.
The BLHeli_S 45A ESC can handle 45A continuous current (55A burst) and supports 2-6S LiPo battery, providing stronger flight performance.
Supports OSD parameter adjustment, buzzer, LED, and other functions.
Ultra-lightweight at 8.8g with 25.5mm x 25.5mm mounting hole, suitable for most frames on the market.
We pursue lighter weight, smaller volume, more functions, and better performance in flight controllers.
SPECIFICATIONS:
Model Name: GEP-F722-45A AIO V2
MCU: STM32F722
IMU: 42688 gyro/accelerometer (SPI)
Firmware target: GEPRC_F722_AIO
OSD: Betaflight OSD w/ AT7456Ev
UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Beeper: YES
LED: YES
USB: Micro USB
BEC output: 5V@1A
Integrated LC Filter

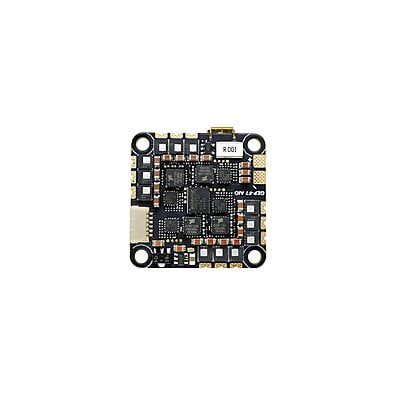

ESC MCU: 8BB21F16G
Continuous current: 45A
MAX current: 55A (10s)
Input: 2~6S
Supports: Dshot600, Oneshot, Multishot
BlackBox: 16Mb
Target: G_H_30

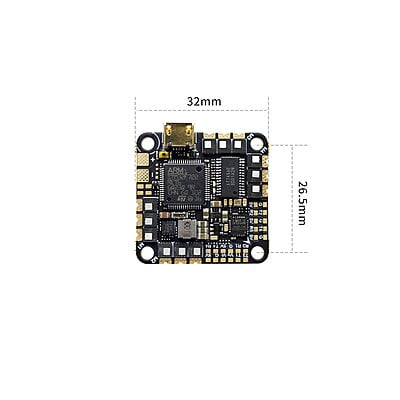

Size: 32x32mm Board
Mounting Hole: 25.5×25.5mm
Weight: 8.8g
FEATURES:- MCU:STM32F722,with strong performance and higher computing speed.
- It has 5 full UART ports, which can connect more external devices
- Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
- The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
- Support OSD parameter adjustment, buzzer, led and other functions.
- 8g ultra light weight
- 5mm * 25.5mm mounting hole, suitable for most frames
Model Name: GEP-F722-45A AIO V2
MCU: STM32F722
IMU: 42688 gyro/accelerometer (SPI)
Firmware target: GEPRC_F722_AIO
OSD: Betaflight OSD w/ AT7456Ev
UART Ports: R1 T1 / R2 T2 / R3 T3 / R4 T4 / R5 T5
Beeper: YES
LED: YES
USB: Micro USB
BEC output: 5V@1A
Integrated LC Filter
ESC MCU: 8BB21F16G
Continuous current: 45A
MAX current: 55A (10s)
Input: 2~6S
Supports: Dshot600, Oneshot, Multishot
BlackBox: 16Mb
Target: G_H_30
Size: 32x32mm Board
Mounting Hole: 25.5×25.5mm
Weight: 8.8g
- MCU:STM32F722,with strong performance and higher computing speed.
- It has 5 full UART ports, which can connect more external devices
- Design 6p connector for DJI AIR UNIT MODULE, and just plug and play .
- The BLheili_S 45A ESC can handle 45A continuous current(55A burst), totally support the 2-6S lipo battery, which can bring the drone a stronger flight performance.
- Support OSD parameter adjustment, buzzer, led and other functions.
- 8g ultra light weight
- 5mm * 25.5mm mounting hole, suitable for most frames

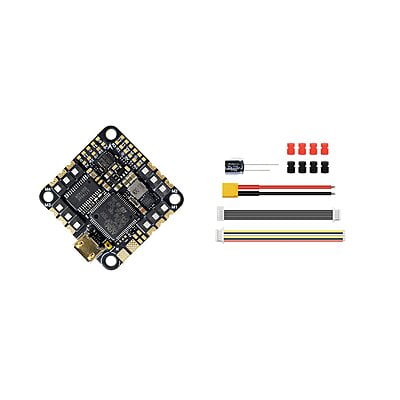

PACKAGE INCLUDES:
- 1 x GEP-F722-45A AIO V2
- 1 x XT30-7CM-18AWG Power cables
- 1 x 35V220UF capacitor
- 1 x SH1.0-6Pin to GH1.25-8Pin cables
- 8 x M2*6.5mm Damping rings
- 1 x GEP-F722-45A AIO V2
- 1 x XT30-7CM-18AWG Power cables
- 1 x 35V220UF capacitor
- 1 x SH1.0-6Pin to GH1.25-8Pin cables
- 8 x M2*6.5mm Damping rings
