EMAX ES08MD 13g Mini Metal Digital Servo For RC Model
₹1,199.00
Out of stock

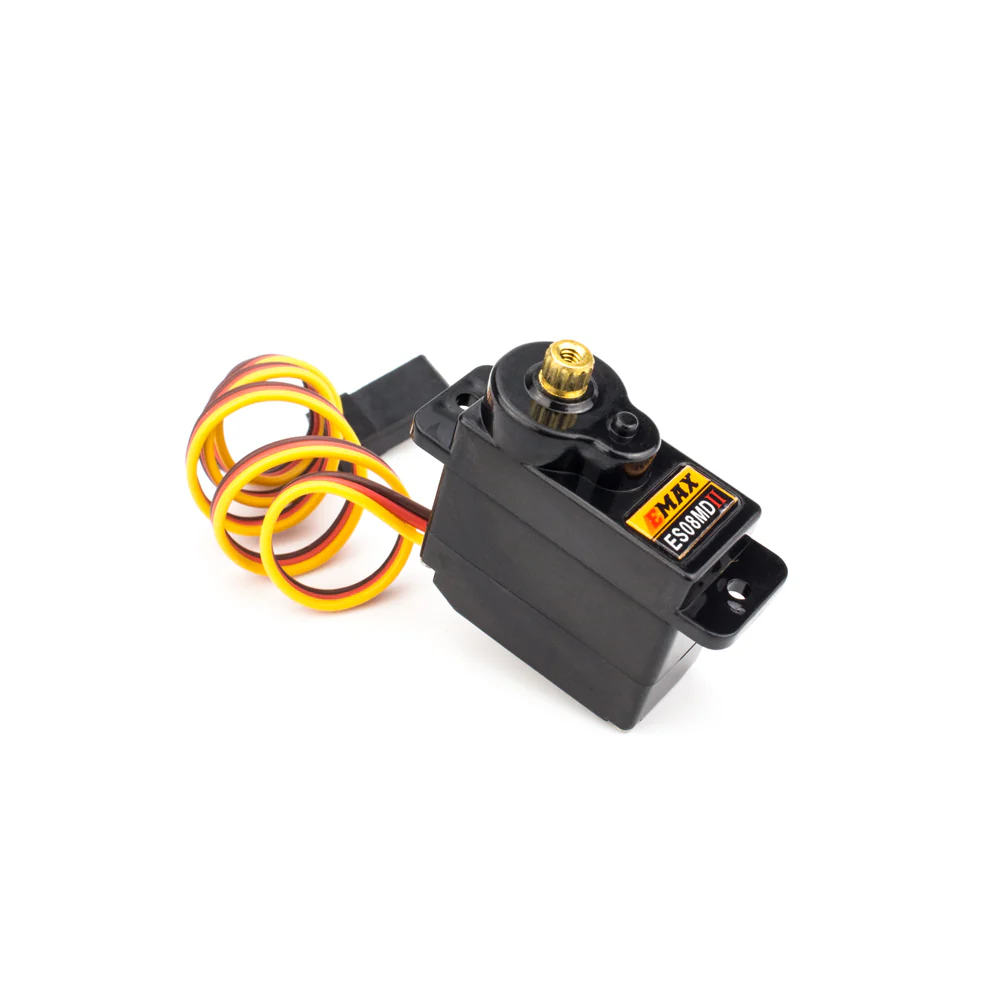

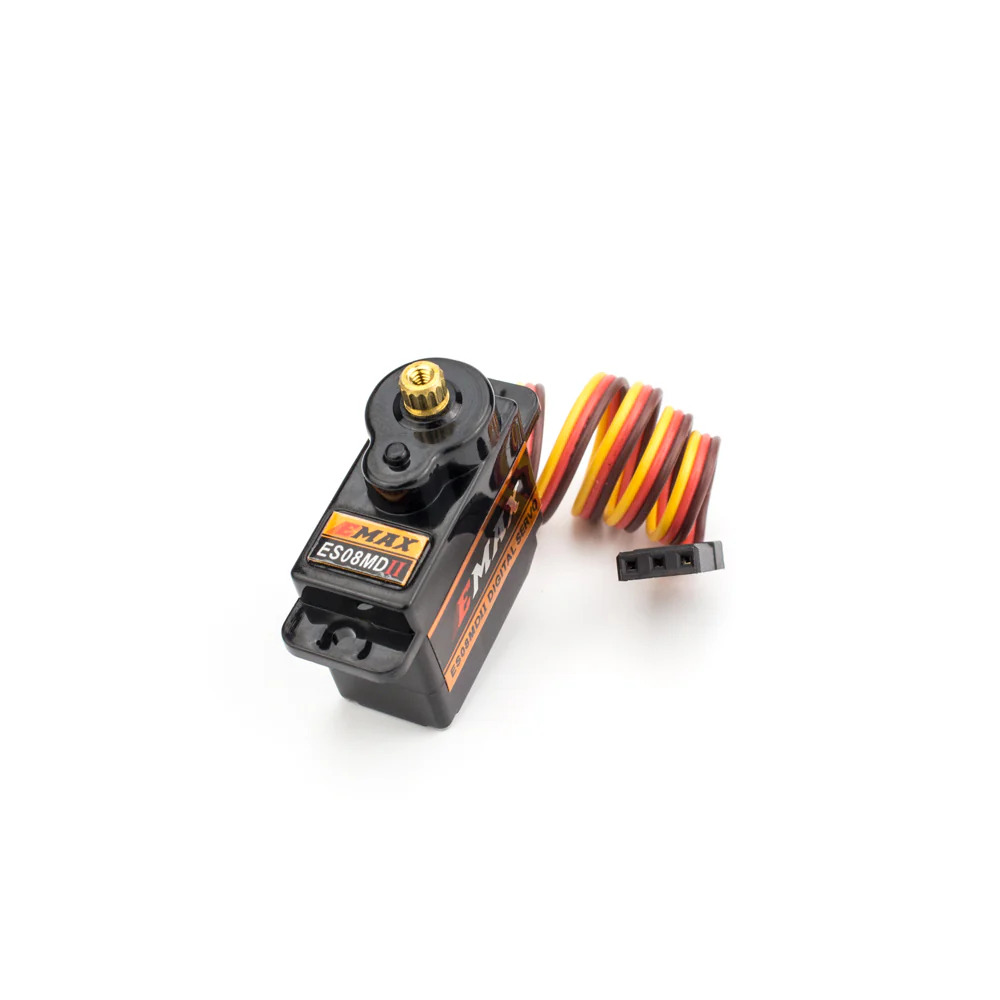

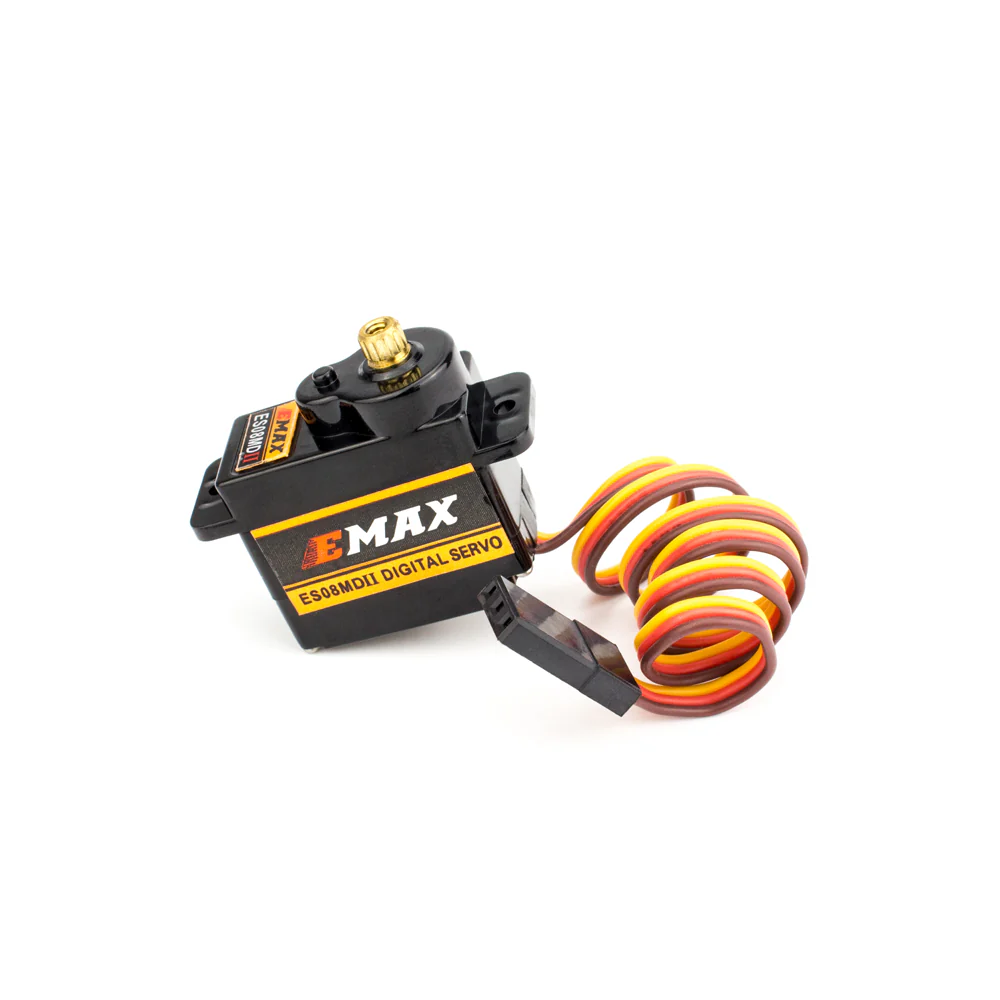

The EMAX ES08MD is a compact, high-precision digital servo with a metal gear train, making it ideal for RC planes, cars, boats, and robotic joints. Engineered for performance, it offers fast response, strong torque, and a robust build for demanding applications
Product Details
Key Features
- Lightweight yet powerful: 13g mini servo
- Metal gear construction ensures durability
- Fast response: 0.10 sec/60° @ 6V
- Standard PWM control with counter-clockwise rotation
- Digital precision for accurate movement
- Plug compatible with FUT/JR systems
- VoltageStall Torque Operating Speed (no load)
- 4.8V1.6 Kg.cm (21 oz.in) 0.12 sec/60°
- 6.0V2.0 Kg.cm (28 oz.in) 0.10 sec/60°
- Weight: 13g
- Dimensions: 23 × 11.5 × 24 mm

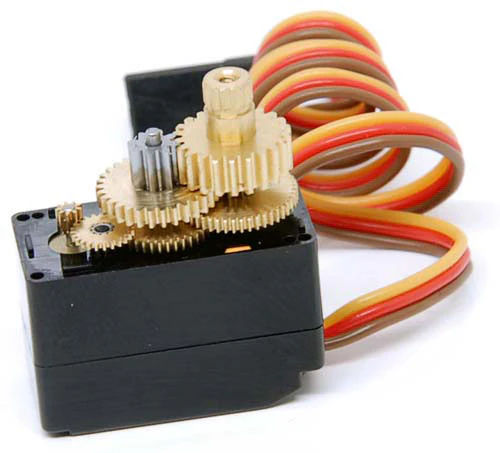

- Gear Type: Metal gears
- Plug Type: FUT, JR
- Construction: Digital internal control + Metal gear drive
- Control Specifications
- Control Signal Type: PWM
- Rotation Direction: Counter-Clockwise (pulse from 1500 to 1900 μs)
- Operating Pulse Range: Standard RC control pulse widths
- Input Voltage Range: 4.8V – 6.0V
- Applications : RC airplanes and gliders, RC helicopters and cars, Robotics and automation, Gimbal and camera platform positioning, DIY hobby electronics

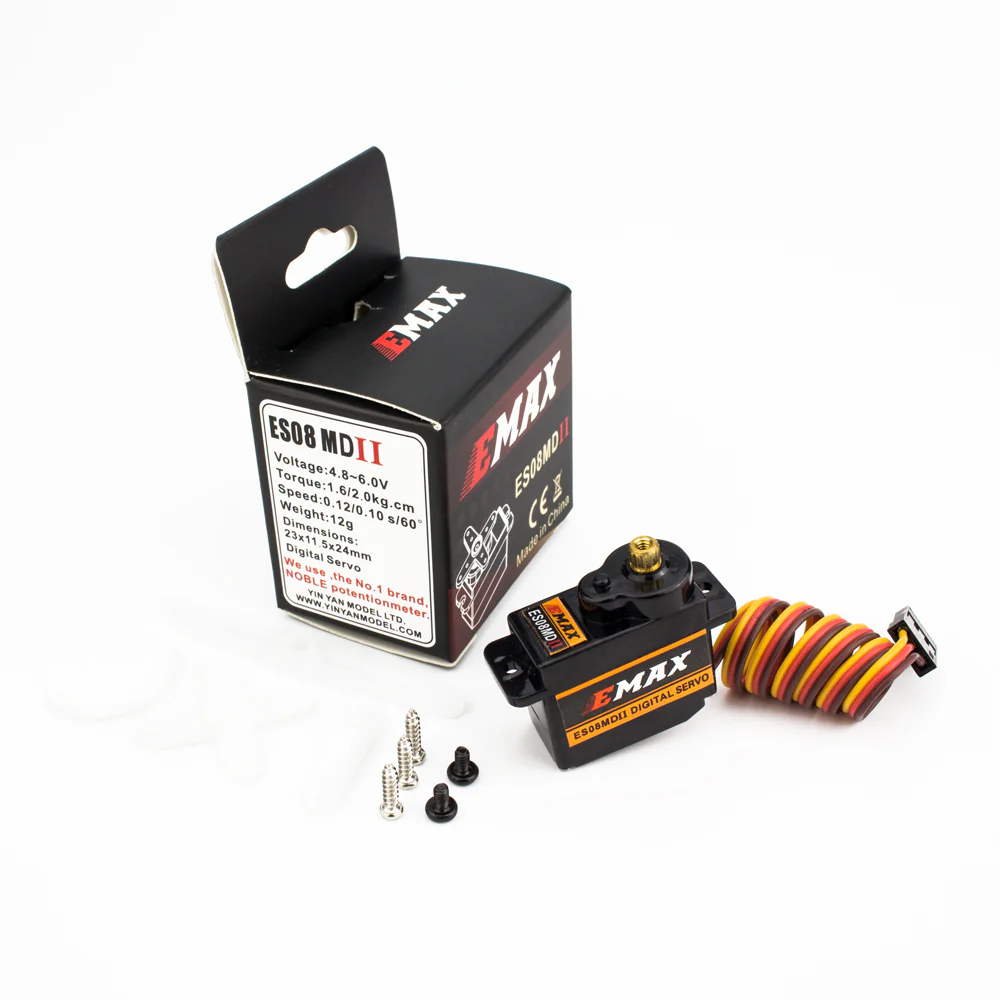

Package Includes
- 1 × EMAX ES08MD Mini Servo
- 1 × Accessory pack (servo horns, screws)
Additional Details
- Brand: EMAX
- Model: ES08MD
- Generic Name: Mini Metal Gear Servo || RC Plane Digital Servo || Micro Robot Actuator || PWM Servo || EMAX Servo
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Frequently Asked Questions
Q1. Can I use this with an Arduino or flight controller?
A: Yes, the ES08MD uses standard PWM control, making it compatible with Arduino, Raspberry Pi, Pixhawk, and other systems.
Q2. Is it suitable for gimbals or pan-tilt systems?
A: Yes, its speed and torque make it a good fit for small gimbals, especially in lightweight drone or camera systems.
Q3. How durable is it under load?
A: The metal gears provide increased wear resistance compared to plastic gears, ensuring longer life and better torque handling.
