CADDX Walksnail Avatar HD V2 VTX
₹9,199.00 ₹13,480.00
The CADDX Walksnail Avatar HD V2 VTX is a high-performance digital FPV video transmitter designed for ultra-low latency HD transmission. Featuring 8GB or 32GB built-in storage, it records 1080P/720P video without interference. With support for 25x25mm and 20x20mm mounting holes, it's compatible with most FPV drones. Enhanced TVS protection, wide voltage input (6V–25.2V), and optimized antenna and frequency bind layout ensure stable performance. It supports major flight systems like Betaflight, ArduPilot, and Kiss, with Canvas Mode OSD and just 22ms latency. Built for durability and versatility, it's ideal for freestyle, racing, and cinematic FPV flying.
Choose Quantity
Product Details
Features:
- Built-in DVR with 8GB or 32GB recording options
- Supports 1080P and 720P high-definition video recording
- Compatible with Gyroflow (with 32GB version)
- Enhanced TVS protection, supports 6V–25.2V input
- Updated PCB and shell design for durability
- Spare pad for additional power connection
- Frequency button repositioned for convenience
- Anti-GPS interference and low-latency transmission
- Supports major FC systems like Betaflight, Ardupilot, Kiss, etc.
- Compact and lightweight design (17.6g)
Technical Specifications:
- Model: Avatar V2 Module
- Communication Frequency: 5.725–5.850GHz
- Transmitter Power (EIRP): FCC <30dBm; CE <14dBm; SRRC <20dBm; MIC <25dBm
- I/O Interface: JST1.04 (Power In), JST0.86 (USB)
- Mounting Holes: 25.5x25.5mm; 20x20mm
- Dimensions: 33x33x10.5mm
- Storage Options: 8G / 32G
- Video Recording: 1080P / 720P
- Weight: 17.6g
- Operating Temperature: -20°C to 40°C
- Channels: 8
- Power Input: 6V–25.2V
- Supported FC Systems: Betaflight, Inav, Fettec, ArduPilot, Kiss
- OSD: Canvas Mode
- Latency: Average 22ms
- Antenna Interface: IPEX (1 antenna)
Additional Details :

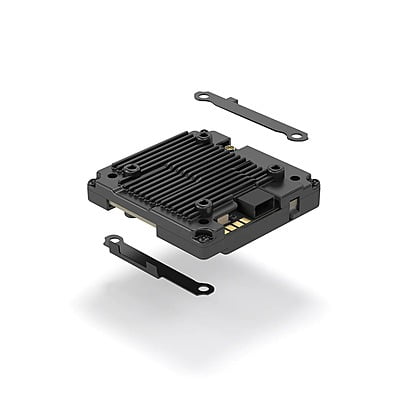

- Native support for both 25x25mm and 20x20mm mounting options increases drone frame compatibility.
- Built-in 8GB or 32GB DVR allows onboard HD recording without signal interference.
- Enhanced TVS (Transient Voltage Suppression) circuit provides improved protection against voltage spikes.
- Wide input voltage range (6V–25.2V) supports up to 6S LiPo batteries, suitable for high-power builds.
- Upgraded PCB and shell construction enhance durability and heat dissipation.
- Compact and lightweight (only 17.6g), ideal for freestyle and racing drones.
- Improved antenna mount positioning minimizes damage and signal loss in crashes.
- Generic Name : High-Definition FPV Video Transmitter || Digital FPV VTX Module || Drone Video Transmitter Unit || FPV Signal Transmission System || HD FPV VTX with DVR || RC Drone Broadcast Unit || Brushless Quadcopter Video Transmitter
- Sold By: UAV Marketplace (an authorized seller of drone gear and accessories)
Package Includes:
- 1x Avatar V2 VTX Module
- 1x USB Transfer Extension Cable
- 1x 4-Pin Silicone Cable
Frequently Asked Questions
Q1 Does it support 6S batteries?
A: Yes, it supports input voltage from 6V to 25.2V, including 6S LiPo.
Q2 Is 32GB DVR storage enough for long flights?
A: Yes, the 32GB storage allows recording up to 4x more footage compared to 8GB.
Q3 Can I use this VTX with Betaflight or Ardupilot?
A3: Yes, it supports Betaflight, Inav, Ardupilot, Fettec, and Kiss FC systems.
