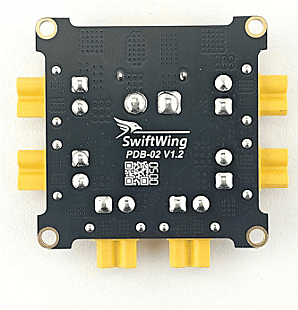

MADE IN INDIA SwiftWing PDB02-XT60-6XT30 – 3S–6S Power Distribution Board with XT60 & 6 XT30 Connectors
₹999.00
Out of stock

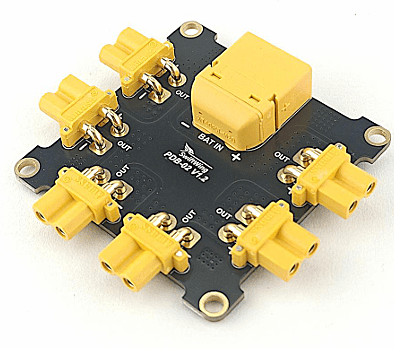

The SwiftWing PDB02-XT60-6XT30 is a 4-layer, high-current direct power distribution board for multirotors. Supporting 3S–6S LiPo inputs and up to 60A total current, its compact 50x50mm design comes pre-soldered with one XT60 and six XT30 connectors, providing a robust battery bus routing solution for demanding UAV builds.
Choose Quantity
Product Details
Features:
- Factory pre-installed with one XT60 and six XT30 connectors.
- Supports 3S–6S LiPo battery inputs from 11.1V to 25.2V.
- Handles high continuous current up to 60A total capacity.
- Built with a 4-layer PCB using robust 2oz copper planes.
- Compact 50x50mm footprint designed for simple multirotor integration.
Technical Details:
- Board Dimensions: 50 mm × 50 mm × 1.6 mm (±0.15 mm) with 4 × M3 mounting holes (45 mm spacing).
- Maximum Ratings: 26 V DC input voltage, 60 A maximum continuous current (total).
- Temperature Range: Operating temperature of –10°C to +60°C, with a maximum PCB temperature of 105°C.
- PCB Finish: Lead-free ENIG surface finish, fully RoHS compliant.
Additional Details:
- Manufacturer: SwiftWing Robotics
- Brand: SwiftWing
- Generic Name: Power Distribution Board (PDB)
- Sold By: UAV Marketplace
- Ideal For: Racing and freestyle quadcopters, hexacopters, long-range UAV platforms, industrial multirotor systems, and custom robotics.
Package Details:
- Includes 1 × SwiftWing PDB02-XT60-6XT30 with factory pre-installed XT60 (x1) and XT30 (x6) connectors. (No additional wires or mounting hardware are included).
FAQs:
Q1: Are connectors included with the PDB02-XT60-6XT30?
A: Yes, this model comes with a factory pre-installed XT60 battery connector and six XT30 connectors for immediate, secure connection to your battery and ESCs/peripherals.
Q2: What is the maximum current this board can handle?
A: The board supports up to 60A total continuous current. However, the maximum safe capacity always depends on your wiring gauge, cooling conditions, and load distribution.
Q3: Does this board have onboard voltage regulation (BEC)?
A: No, the SwiftWing PDB02-XT60-6XT30 is a direct power distribution board designed strictly for battery bus routing without onboard voltage regulation.
