MADE IN INDIA SwiftWing PDB02 – 3S–6S Direct Power Distribution Board
₹375.00
Out of stock

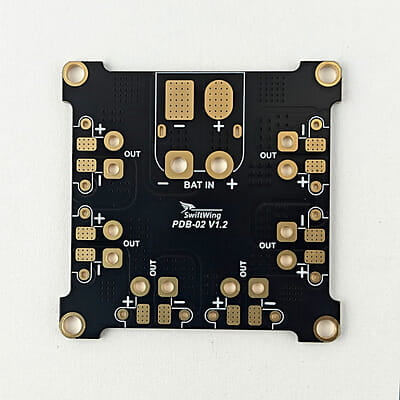

The SwiftWing PDB-02-BB is a 4-layer, high-current direct power distribution board for multirotors. Supporting 3S–6S LiPo inputs and up to 200A total current, its compact 50x50mm design with 2oz copper planes offers robust battery bus routing. Supplied as a bare PCB with XT30 and XT60 solder pads.
Choose Quantity
Product Details
Features:
- Supports 3S–6S LiPo battery inputs from 11.1V to 25.2V.
- Handles high continuous current up to 200A total capacity.

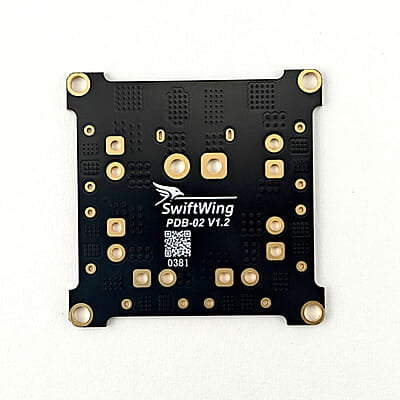

- Built with a 4-layer PCB using 2oz copper planes.
- Includes solder pad footprints for XT30 and XT60 connectors.

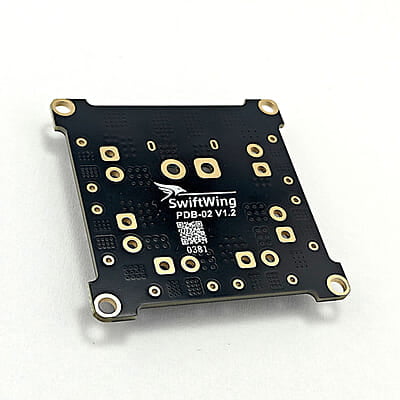

- Compact and lightweight 50x50mm design weighing only 9 grams.
Technical Details:

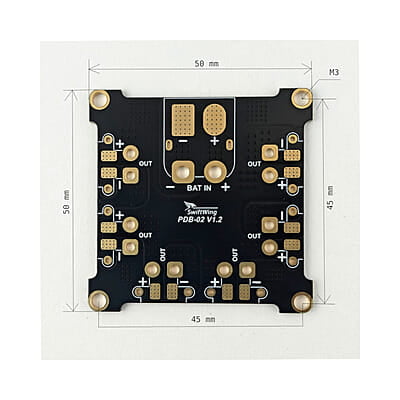

- Board Dimensions: 50 mm × 50 mm × 1.6 mm (±0.15 mm) with 4 × M3 mounting holes (45 mm spacing).
- Maximum Ratings: 26 V DC input voltage, 200 A maximum continuous current (total).
- Temperature Range: Operating temperature of –10°C to +60°C, with a maximum PCB temperature of 105°C.

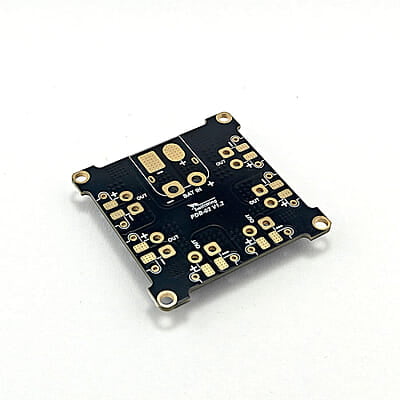

- PCB Finish: Lead-free ENIG surface finish, fully RoHS compliant.
Additional Details:
Manufacturer: SwiftWing Robotics
Brand: SwiftWing
Generic Name: Power Distribution Board (PDB)
Sold By: UAV Marketplace
Ideal For: Racing and freestyle quadcopters, long-range UAV platforms, industrial multirotor systems, and custom robotics.
Package Details:
- Includes 1 × SwiftWing PDB-02-BB (bare PCB). No connectors, wires, or mounting hardware are included in the box.
FAQs:
Q: Does this board include voltage regulators?
No. This is a direct battery distribution board. An external BEC is required for regulated outputs.
Q: Are connectors included?
No. XT30 and XT60 footprints are provided as solder pads only.
Q: What is the maximum current?
The PCB is designed to support up to 200 A total, depending on wiring and cooling.
Q: Can this be used for 8S batteries?
This board is optimized and validated for 3S–6S LiPo systems.
